EiceDRIVER Power full-bridge drivers for compact gate supplies

By using the devices, asymmetrical output voltages can be implemented to supply isolated gate drivers in a cost-effective and space-saving manner. This makes the 2EP1xxR particularly suitable for industrial or consumer applications requiring isolated gate drivers, including solar applications, electric vehicle charging, energy storage systems, welding, uninterruptible power supplies, and drive applications.

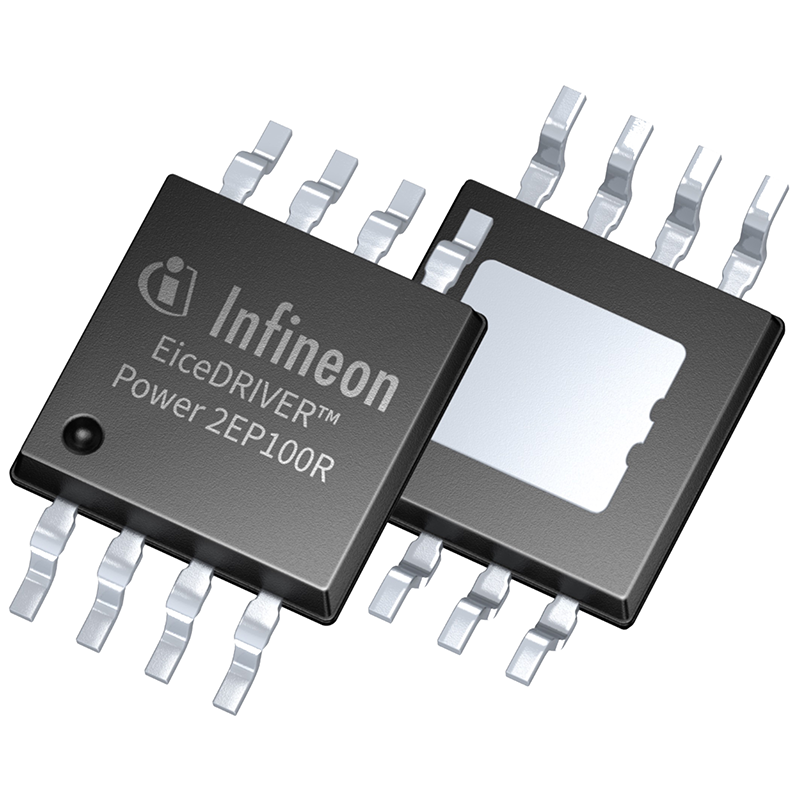

The 2EP1xxR family comes in a compact TSSOP8 pin package with power integration and optimisations to generate an asymmetric output voltage. The family is optimised for asymmetric gate driver supply through its duty-cycle adjustment capability. The devices support a wide input voltage range up to 20V. They also offer integrated temperature, short-circuit and undervoltage lockout (UVLO) protection to prevent unwanted system faults.

The 2EP1xxR family is available in the following four product variants: 2EP100R and 2EP101R are optimised for low component count designs for IGBT and SiC MOSFET gate driver power supplies. 2EP110R allows fine adjustment of the duty-cycle to match the output voltage ratio to the application requirements of SiC and GaN power switches. 2EP130R is optimised for highly flexible designs to meet different application requirements. The device offers five-stage overcurrent protection, 41 selectable switching frequencies or synchronisation with external PWM for transformer matching, and 41 selectable duty-cycle options to adjust the output voltage.

Availability

All four variants of the EiceDRIVER Power 2EP1xxR are now available.
