New two-part screw frame for more flexible cable management

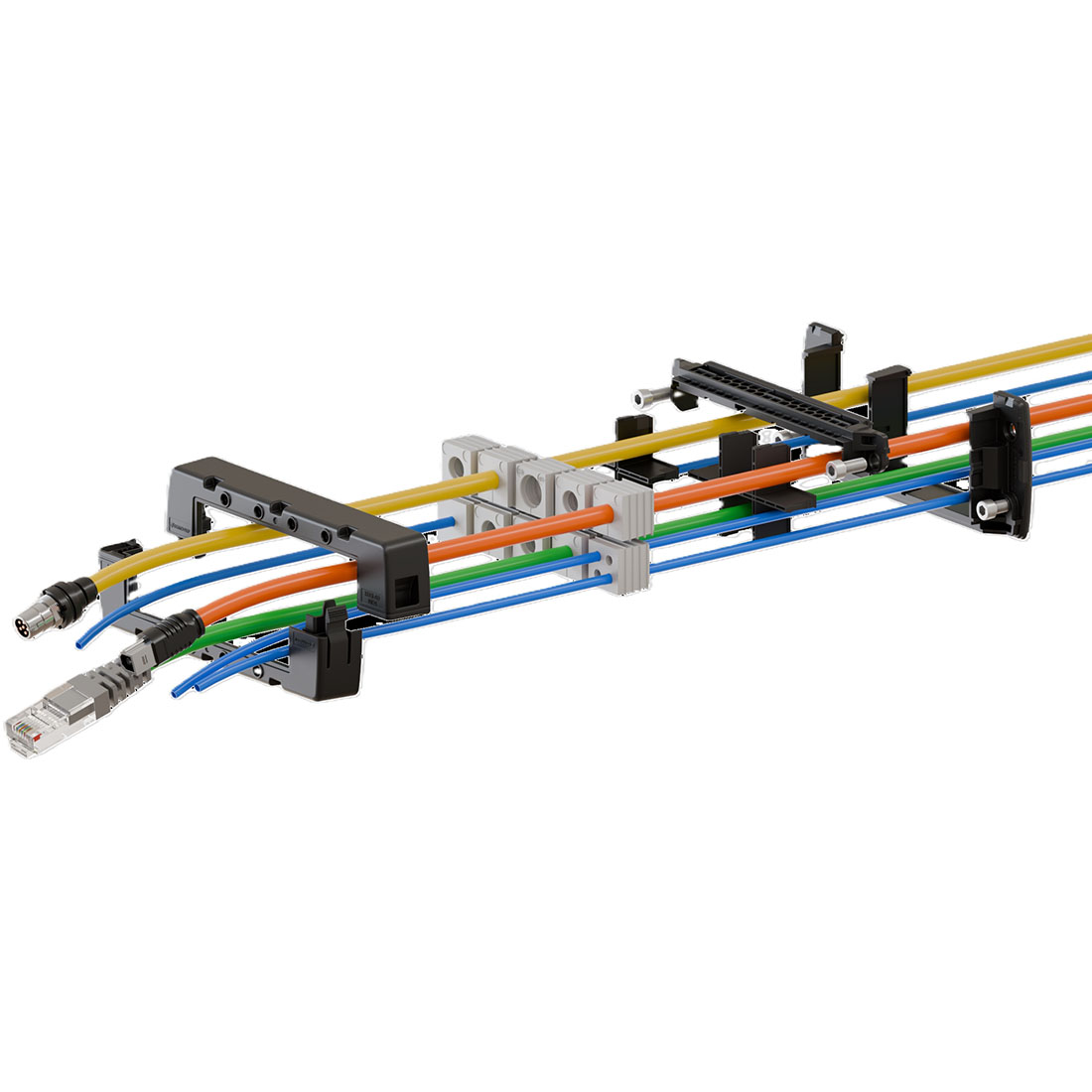

The system for cables with and without connectors shows high adaptability in terms of cable management for control cabinets, enclosures and machines and significantly reduces the time required for assembly. The screwless, horizontally latching frame halves made of glass-fibre reinforced polyamide PA 6.6 feature dovetail profiles and thus do not have to be screwed but simply lock in place. Their double, overlapping integrated and captive TPE gasket ensures tight sealing according to protection type IP66. The black cable entry fits in standard cut-outs for 4, 10, 16 and 24-pin heavy-duty connectors. Furthermore, the 8/16 frame has a fixed partition and can be equipped with two 4-piece inlays.

KDSI-SR-G is suitable for cables of all connector sizes and allows the greatest possible variability in the order of assembly. The frame can either be screwed directly to the housing or partially assembled or fully pre-assembled externally for later mounting on the housing. Customers can choose whichever frames and mounting methods best fit their particular application. The system offers maximum flexibility with optimized warehousing by using the proven modular KDS system for accessories such as inlays and sealing elements. KDSI-SR-G will be commercially available in the first quarter of 2025.

Innovative cable management solutions

Conta-Clip has developed the KDS cable entry systems for prefabricated and non-prefabricated cables and tubes with a special focus on tight sealing, good handling, modularity, variability and flexibility. KDS comprises various frame geometries, inlay sizes and sealing elements to meet different requirements. Depending on their needs, users have a choice of different shapes and installation methods. The common parts principle facilitates warehousing.
