Interface
TPD4S214YFFR
Texas Instruments
Price range: $0.34 - $1.45
Category: Interface

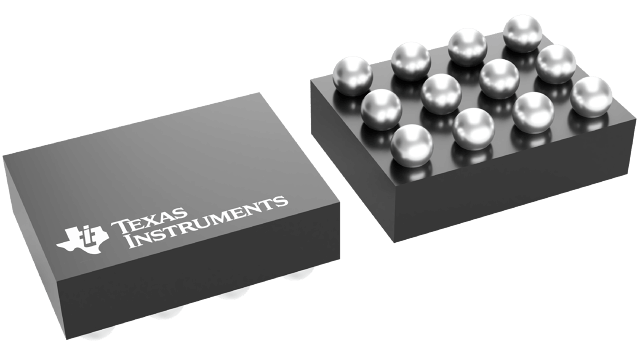

USB OTG Companion Device 12-Pin DS-BGA T/R
TPD4S214YFFR Inventory
by: Texas Instruments
Distributor
SKU
Stock
Cost
Parameters
IO Leakage Current(Max)(nA)
100
Clamping Voltage(V)
9
IO Capacitance(Typ)(pF)
2
Operating Temperature Range(C)
-40 to 85
IEC 61000-4-5 (Surge)(Max)(A)
7.8
Rating
Catalog
Package Size
mm2
Breakdown Voltage(Min)(V)
6
OVP Threshold(Typ)(V)
6
IEC 61000-4-2 Contact(+/- kV)
15
Package Group
DSBGA
Overvoltage Protection(Max)
30
Dynamic Resistance(Typ)()
1
IEC 61000-4-2 Air-Gap(+/- kV)
15
Number of Channels(#)
4
Bi-/Uni-Directional
Uni-Directional
Special Features
Current Limit,Over Voltage Protection
IEC 61000-4-5 (Surge)(Max)(W)
84
Approx. Price (US$)
0.45 | 1ku
Interface
USB 2.0
Features
Part Family
TPD4S214
Status
ACTIVE
ROHS
Compliant
PB Free
No
