TPS3850H50DRCR
Texas Instruments
Price range: $0.89 - $1.95
Category: Power Management
TPS3850 Precision window supervisor for OV & UV monitoring with window watchdog timer & programmable delay
TPS3850H50DRCR Inventory
by: Texas Instruments
Parameters
Reset Threshold Accuracy(%)
0.8
Output Driver Type / Reset Output
Active-low,Open-drain
VCC(Max)(V)
6.5
Watchdog Timer WDI(sec)
Programmable
Rating
Catalog
Operating Temperature Range(C)
-40 to 125
# of Supplies Monitored
1
Monitored Voltage 1 (typ)(Nom)(V)
Adjustable,1.2,1.8,3,3.3,5
Threshold Voltage 1(Typ)(V)
Adjustable,1.11,1.15,1.67,1.72,2.79,2.88,3.06,3.16,4.65,4.8
Package Size
mm2
Approx. Price (US$)
0.75 | 1ku
Iq(Typ)(uA)
10
Time Delay(ms)
Programmable
VCC(Min)(V)
1.6
Special Features
Over Voltage Sense,Watchdog Disable,Watchdog Timer,Window Comparator,Window Watchdog
Package Group
VSON
Monitored Voltage 2 (typ)(Nom)(V)
N/A
Threshold Voltage 2 (typ)(Typ)(V)
N/A
Features
Part Family
TPS3850
Status
ACTIVE
ROHS
Yes
PB Free
Yes
Products to complete your design
LDO Regulator Pos 0.8V to 5V 2A 20-Pin VQFN T/R

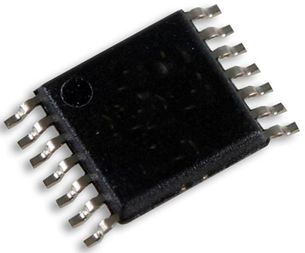

Power Switch Hi Side 0A 14-Pin HTSSOP T/R
