TPD2E001IDRLRQ1
Texas Instruments
Price range: $0.20 - $8.29
Category: Interface

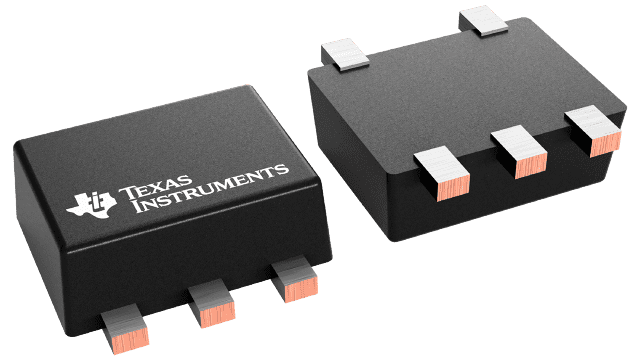

ESD Protection Arrays 5-Pin SOT T/R
TPD2E001IDRLRQ1 Inventory
by: Texas Instruments
Distributor
SKU
Stock
Cost
Parameters
Bi-/Uni-Directional
Uni-Directional
Package Size
mm2
Breakdown Voltage(Min)(V)
11
Operating Temperature Range(C)
-40 to 85
IEC 61000-4-2 Air-Gap(+/- kV)
15
Approx. Price (US$)
0.17 | 1ku
Clamping Voltage(V)
25
IO Capacitance(Typ)(pF)
1.5
IEC 61000-4-2 Contact(+/- kV)
8
Package Group
SOT
IO Leakage Current(Max)(nA)
+/-1
Rating
Automotive
Number of Channels(#)
2
Features
Part Family
TPD2E001-Q1
Status
ACTIVE
ROHS
Compliant
PB Free
No
