New current-voltage tester with seven-segment display

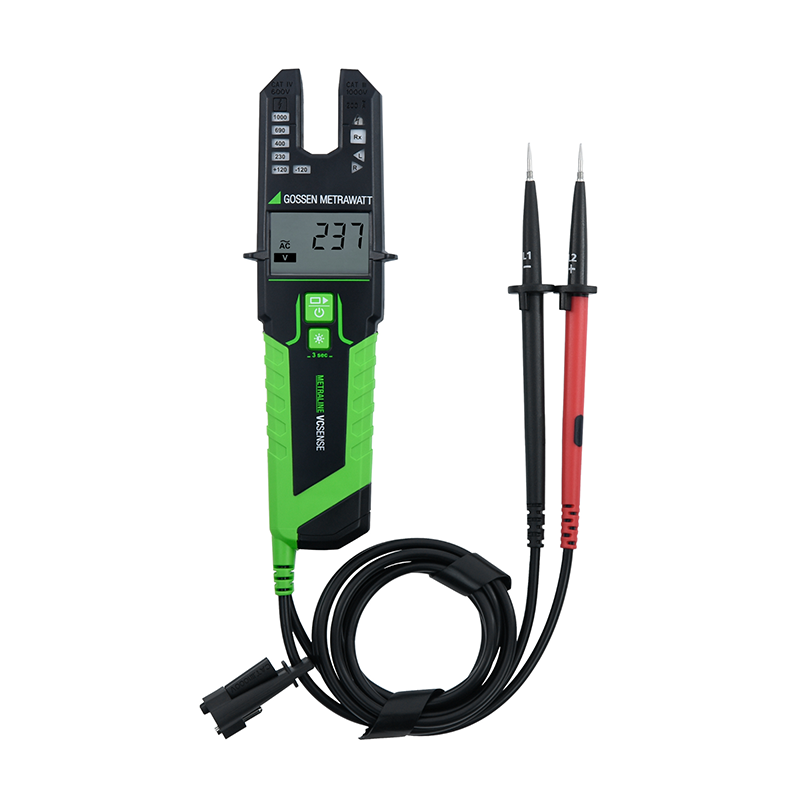

The METRALINE VC SENSE features an integrated display window, a power fork, two measurement cables, and test probes. The versatile device offers a wide functional range for voltage testing, resistance measurement, continuity testing, and diode testing.

The measuring instrument’s vibration motor and sound generator ensure reliable feedback for precise test results. The METRALINE VC SENSE is certified according to measurement category CAT IV 600V, CAT III 1,000V. It performs voltage measurements from one to 1,000V AC TRMS and from one to 1,500V DC as well as inductive current measurements from 0.1 to 200A AC at 40 to 65Hz. The functional scope also includes resistance measurements from 0 to 100kΩ, frequency measurements between 0 and 800Hz as well as continuity and diode tests. The power fork with an integrated transducer has a 14mm wide opening.
