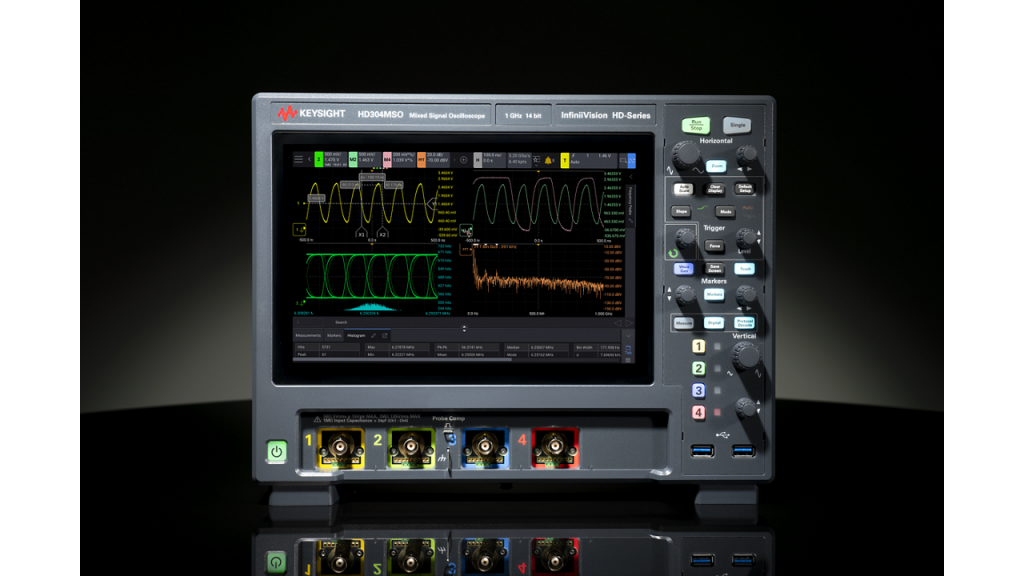

Keysight’s InfiniiVision HD3 Series Oscilloscopes

The HD3 oscilloscopes come with both Keysight's custom ASIC, and custom14-bit ADC. Together with 50 µVRMS low noise floor, the HD3 Series enables users to achieve 4x the vertical resolution of a 12-bit ADC scope and half the noise floor of comparable oscilloscopes today. Custom Keysight components optimised for oscilloscope measurements enable the industry's only uncompromised waveform update rate of 1.3 million waveforms per second, allowing users to effectively identify infrequent signal glitches.  Users can capture longer time spans at full sample rate with up to 100Mpts of deep memory, per channel.

The HD3 comes with a feature called Fault Hunter, that allows users  to easily characterise signals, and hunt for errors, especially infrequent ones. The oscilloscopes also offer a large selection of serial bus protocols and application software, as well as sought-after advanced analysis features such as fast Fourier transforms, histograms and Bode plots.

HD3 represents a quantum leap forward in oscilloscopes. It enables engineers to be more effective by giving them the most accurate and comprehensive view of their designs.  By being less intrusive in terms of added noise and jitter, it increases the safety margin in their design – allowing them to get more cost-effective and robust products to market sooner.

Find out more: https://www.keysight.com/gb/en/products/oscilloscopes/infiniivision-2-4-channel-digital-oscilloscopes/infiniivision-hd3-series-oscilloscopes.html
