Compact T-modules replace mechanical relays
OMRON has expanded its range of T-modules to support accurate measurements in all types of test equipment.
The modules are in stock at authorised distributor Anglia Components.
Previously mechanical relays would have been the preferred choice for these applications, now there is a viable alternative with the OMRON G3VM T-modules which offer extremely low leakage current.

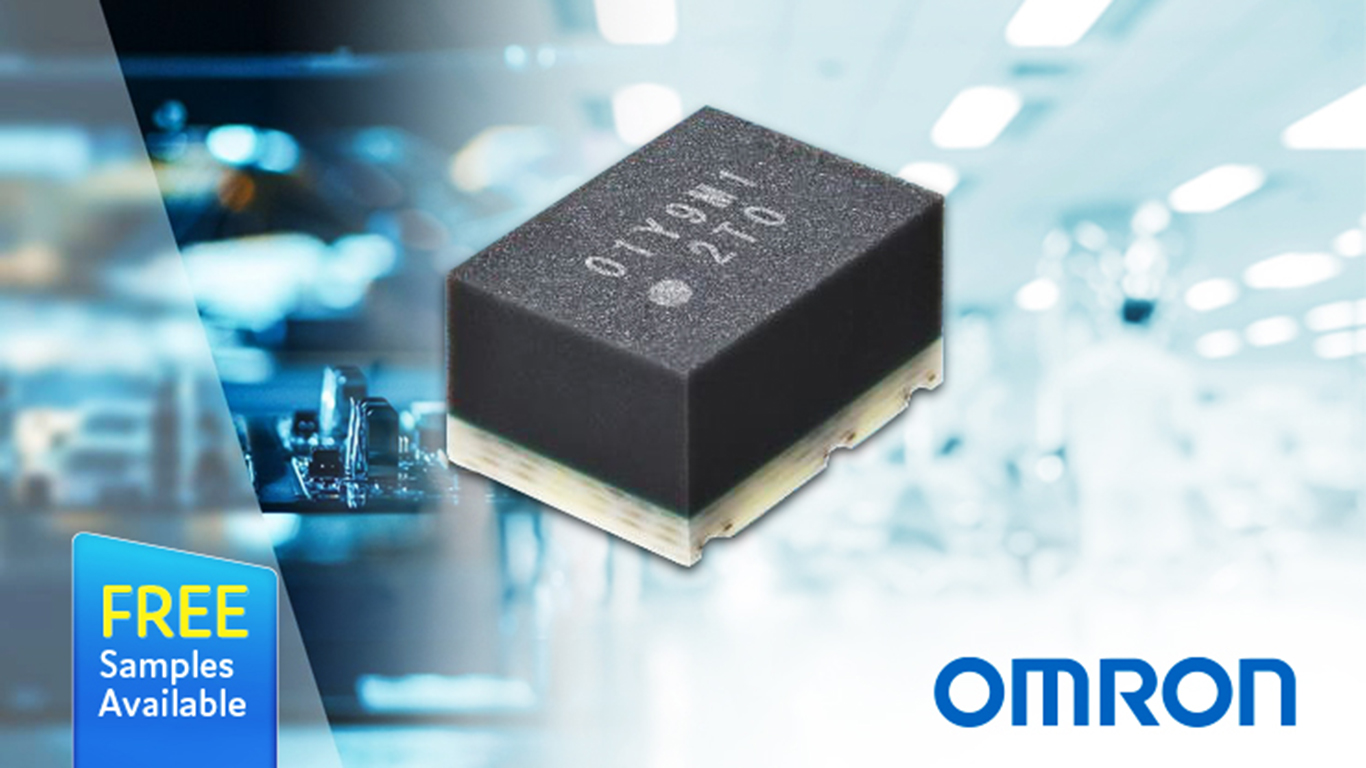

With a compact size of 5mm x 3.75mm x 2.7mm, the devices are surface mounted and incorporate the T-circuit into the module.
No configuration is required on G3VM T-modules as they are offered in SPST and their electrical load characteristics are 800 mA, 60V for the G3VM-61MT, and 550 mA and 100V for the G3VM-101MT.
In addition, the G3VM-21MT features exceptional isolation performance of less than -30dB, at 1GHz and is rated at 200 mA, 20V.
Utilising a unique T- circuit structure, that sends most leakage current to ground, the G3VM T-modules achieve exceptionally low leakage current of just 1pA or less.
The modules combine the advantages of mechanical and MOSFET relays, to provide an accurate, compact and long-lasting switching solution, with no mechanical contacts.
