World’s smallest subminiature flange mount reed sensors

The sensors' design provides compact size, contactless activation, and customization options, making them suitable for a wide range of tight-spacing applications across different industries.

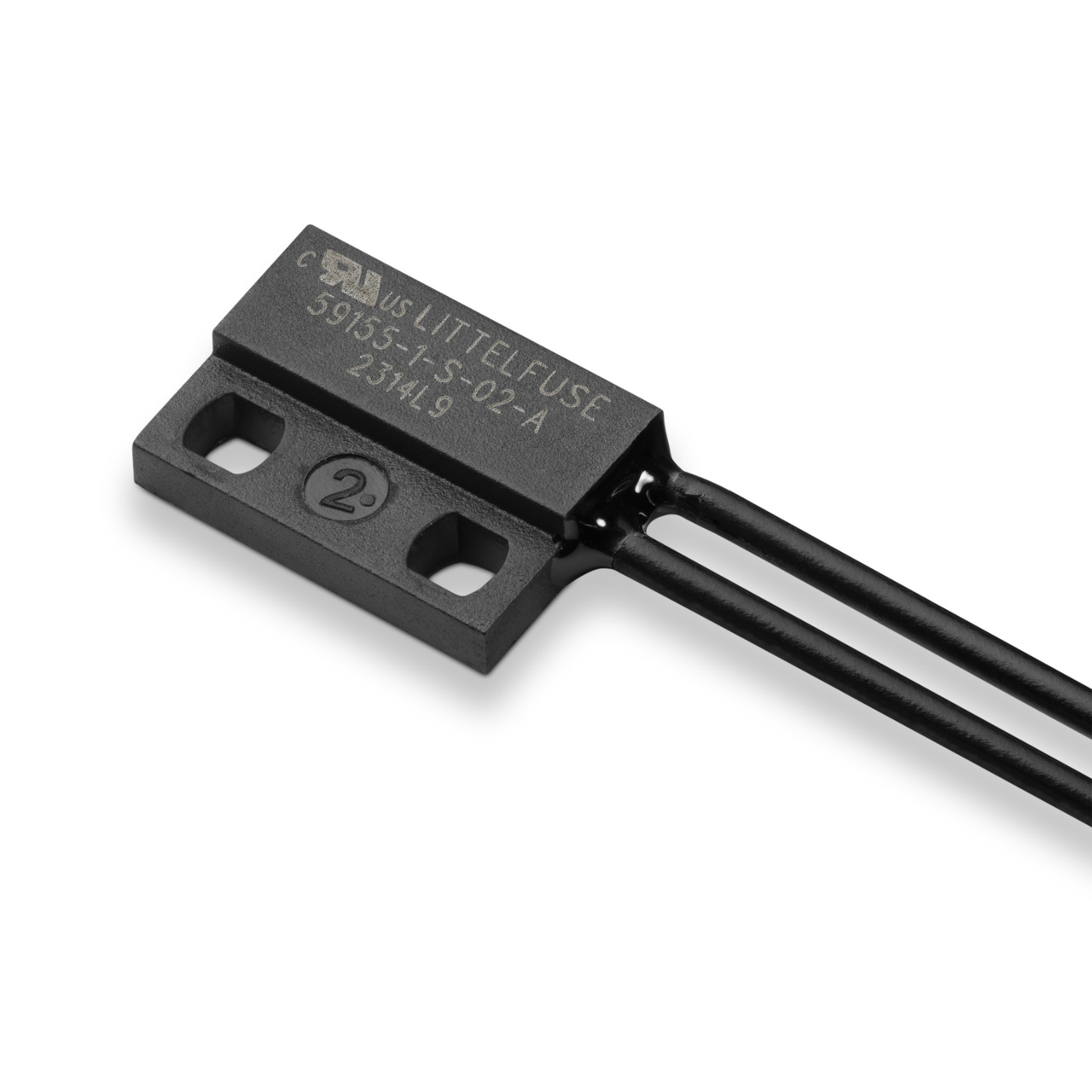

Littelfuse introduces the most miniature flange-mount type reed sensor available in the market, measuring only 12.70 x 9.00 x 3.00mm (0.500 x 0.354 x 0.118") with normally open contacts. The sensors can switch 120 Vac/170 Vdc at 10W. The case design allows mounting with an M2 screw at 0.1 Nm torque maximum or adhesive mounting.

The 59155 and 59156 sensors are available with wires exiting from the left-hand or right-hand side, making them ideal for use in many applications, including:

• small appliances
• major appliances
• security and access control
• factory automation
• process equipment
• proximity and limit sensing
• other IoT proximity sensing applications

The new reed sensors provide a customizable, space-saving design to meet different installation requirements. Contactless activation prevents exposure to humidity or dust, improving the end equipment's lifetime.

“We understand the challenges that come with limited space in many applications, which is why we developed one of the world's smallest reed sensors,” said Ryan Sheahen, Global Market Manager at Littelfuse. “This extends our leadership in offering (one of the) the broadest and most comprehensive portfolio of magnetic sensing solutions to meet our customers’ needs.”

The 59155 and 59156 sensors compete with similar-sized products currently available on the market. However, the new Littelfuse sensors are slightly smaller while providing higher switching capability. They also have a wider operating temperature range, which is -40 to +105°C, compared to others that offer -20 to +85°C.

Availability

The 59155 and 59156 reed sensors are available in several sensitivity and cable length configurations.  Place sample requests through authorised Littelfuse distributors worldwide.
