Anglia Components shipping Bourns shunt sensors

They are available at authorised distributor Anglia Components.

The shunt sensors include innovatively designed digital DC shunt-based current sensors that offer superior accuracy, stability and electrical isolation over a wide -40 °C to +115 °C operating temperature range.

They are small and highly integrated digital System-in-Package (SiP) devices which are well-suited for a wide variety of battery-related current sensing applications including large-scale energy storage banks, renewable energy generation infrastructure, industrial motor drives, building automation systems, and EV charging stations.

The SSD series features a 16-bit automotive-grade microcontroller unit (MCU) and delivers accuracy of ±0.1 % full scale. The internal 24-bit Analogue-to-Digital Converter (ADC) offers plug-and-play simplicity, helping to significantly streamline implementation so engineers can quickly add high-accuracy current measurement into their latest designs or retrofit it into existing ones.

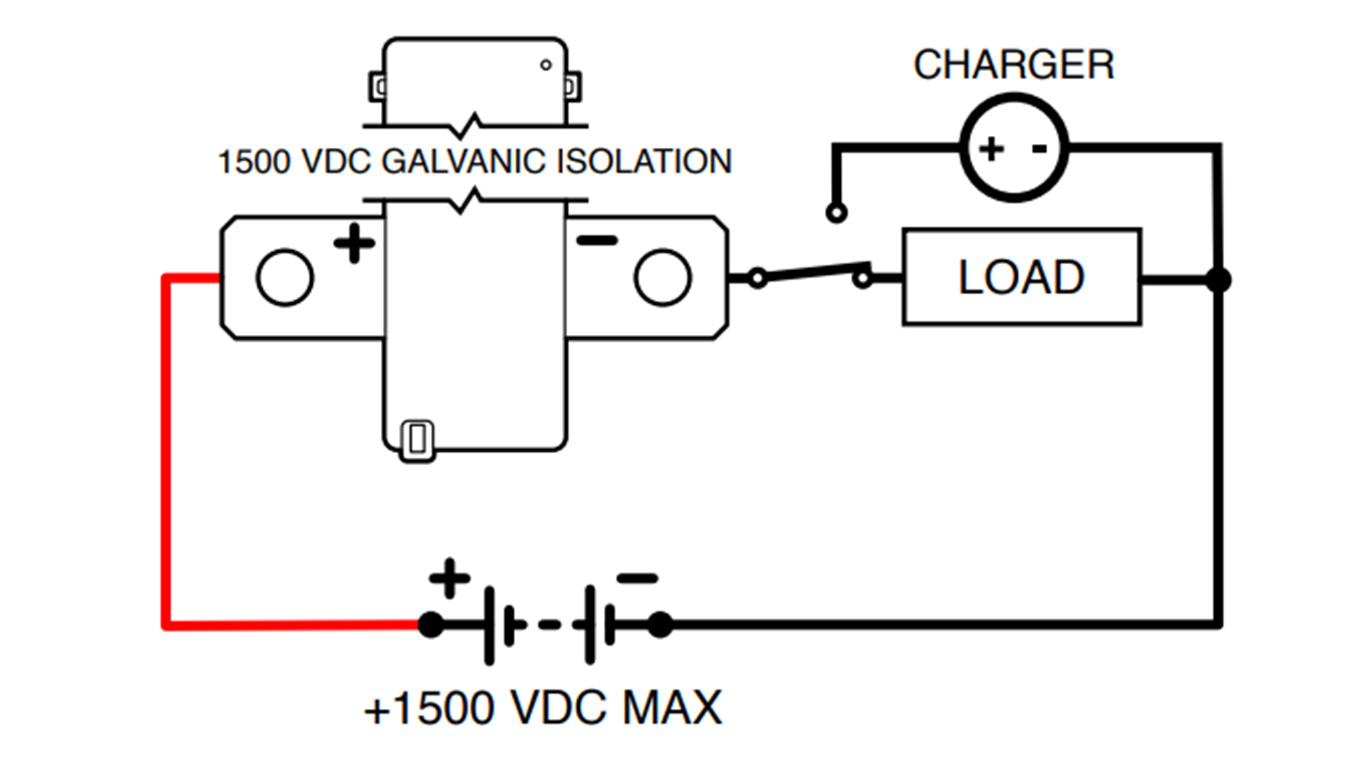

The digital shunt sensors are available in nominal currents of 100 A and 500 A with shunt resistances of 300 µΩ and 60 µΩ, respectively. The isolated design of the digital DC current sensors allows it to be used on the low or high side of the circuit for maximum design flexibility.

These shunt-based sensors also help eliminate the need for periodic device calibrations, all while providing highly accurate measurements that contribute to more efficient use of power. The SSD series is available in two models: the RS-485 serial interface model, which can also be configured as MODBUS RTU, and a customizable CANbus model. The RS-485 model can achieve communication speeds of up to 921600 baud while the CANbus model can communicate up to 1 M baud rate.

Anglia are offering customers a FREE sample of the SSD series Digital DC Current Sensors from Bourns
