Fabrication of perovskite solar cells with just a piece of paper

The trick to achieve high performance with this remarkably cheap method is to soak the paper applicator in anti-solvent which almost doubles efficiencies compared to when using it dry, reaching 11% on flexible plastic substrates. Paper, compared to other soft applicators, possesses the right porosity and smoothness for deposition of high-quality perovskite films.

Perovskite semiconductor solar cells are a very exciting photovoltaic technology because they possess similar power conversion efficiencies to those based on conventional silicon but can be cast in thin films via precursor inks providing benefits in manufacturing. Most perovskite films in laboratories around the world are deposited through spin coating which guarantees high control on film thickness as well as morphology. However, most of the ink is expelled during deposition and wasted. There has been an effort in developing coating techniques for deposition over large areas.

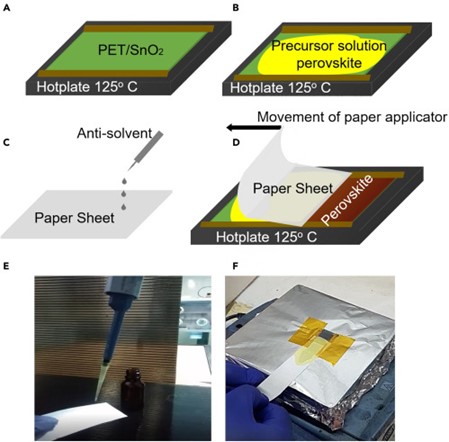

Schematic illustration of the deposition via an anti-solvent soaked applicator (DASSA) method. A) The PET/ITO/SnO₂ substrate with two parallel segments made of tape at the edges (the substrate is placed on a hot plate); B) spreading of the perovskite precursor on PET/ITO/SnO₂ substrate; C) soaking of the piece of paper applicator in antisolvent; D) drawing of the paper applicator over the perovskite precursor solution and tape separators from one side of the substrate to the other; E) photograph of application of antisolvent on the piece of paper; F) photograph of soaking the piece of paper applicator in  Antisolven and the DASSA method in which the piece of paper previously soaked in anti-solvent is drawn over the substrate, with the brown-coloured perovskite film being formed at the trailing edge of the applicator.

The most efficient solar cells fabricated via spin coating involve adding drops of anti-solvent (i.e., a liquid with differing properties to those used in the perovskite precursor inks) during spinning which enables to improve the morphological quality of the perovskite semiconductor films. This method is very difficult to implement when employing large area coating techniques, where the careful engineering of drying processes which involve heaters or gas flows have been preferred up to now to control morphology of the perovskite film.

An international team of researchers from Italy and Iran has published a completely new method that uses a simple sheet of paper to deposit the perovskite films that does without a spin coater or other large area techniques such as slot-die coating or blade coating. Results of their project have been published in iScience, the open access interdisciplinary journal from Cell Press, highlighting the recipes that are required to achieve efficient solar cells with this method.

“When I joined CHOSE labs in Rome for my internship, I serendipitously noticed that leaving a piece of cleaning paper soaked in solvent over a wet perovskite precursor film, it turned brown turning in what looked like a rather promising perovskite semiconductor film. My supervisor in Rome, Prof. Brown, suggested I developed a coating method based on this discovery during my time there,” described Nazila Zarabinia, first author of the work.

“We worked on trying different soft applicators: the one that work best was paper possessing the most beneficial properties of porosity and smoothness,” she added.

The highest efficiency of a flexible cell fabricated with this Deposition via Anti-Solvent-Soaked Applicator method (termed DASSA) was 11%. The researchers believe this is a satisfying efficiency, particularly for flexible solar cells on plastic PET substrates, and utilising a completely manual procedure. The corresponding efficiency achieved with spin coating devices with the anti-solvent method was 14.9 % so there is scope for further improvement. In the manuscript, the authors propose an automated procedure for further future optimisation.

“We think this simple method will appeal to all those labs setting up a line in perovskite research who have not been able (for money or time) to buy expensive deposition equipment (a bit like manual blade coating of titania films which was widely used to enter the field in the days of dye sensitised solar cells) since it enables the deposition of the perovskite film incredibly cheaply. It can also be of particular interest to groups developing automated printing techniques by applying the anti-solvent, not on the perovskite film as usual, but on the applicator instead. Furthermore, it will be interesting to endeavour to extend this method also to the transport layers for full cell manufacturing,” commented Thomas M. Brown, corresponding author of the work.

The researchers show that soaking the paper used as an applicator in an anti-solvent increases the power conversion efficiency of solar cells by 82% compared to the solar cells where the application of the perovskite film was carried out with a sheet of dry paper.
