TVS diode series 5.0SMDJ from YAGEO

The products are made of a high-reliability DO-214AB package, which in combination with the special power handling capacity of the diodes ensures higher protection of the circuits. In addition, they have a particularly short response time. They reliably absorb high voltage peaks - caused by lightning strikes, for example - and prevent failures or system malfunctions. The series includes uni- or bidirectional variants and specially certified automotive versions for differing applications.

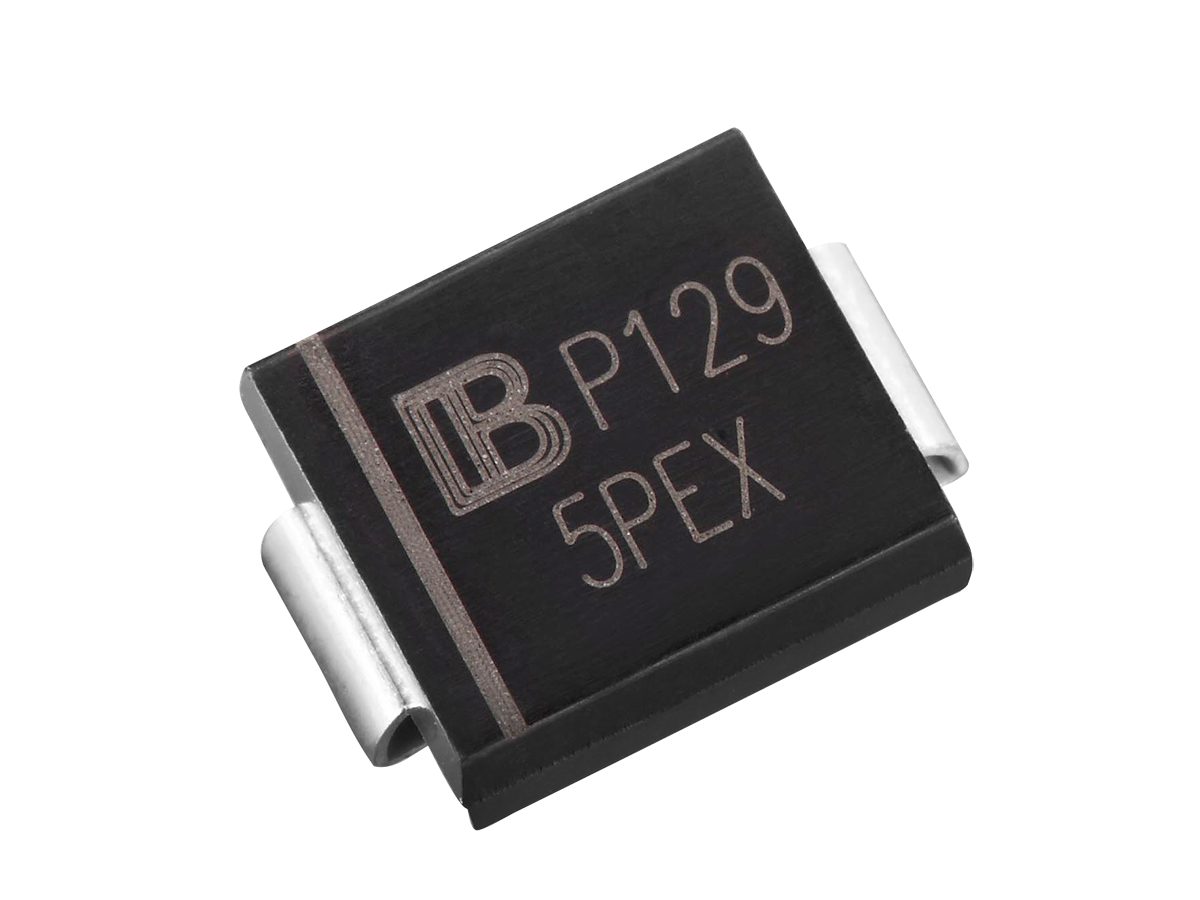

Equipped with built-in strain relief and passivated glass junction, the powerful (5,000 W) diode series is installed in a DO-214AB low-profile plastic housing. The operating voltage of the TVS ranges from 5V to 600V (even higher). The series has excellent clamping capability and low inductance, as well as the typical IR of less than 2μA. The terminals tolerate high-temperature soldering at 260°C for 10 seconds.

YAGEO's TVS diodes meet MSL 1 according to J-STD-020, enable compliance with IEC61000-4-2 ESD protection standards of up to 30KV air and contact discharge, and are available in automotive grade (5.0SMDJ-AT) with AEC-Q101 qualification.

They are halogen-free, RoHS compliant, and guarantee near-optimal performance in applications such as telecom equipment, industrial equipment, or energy storage.

Features at a glance:

• 5,000W peak pulse power at 10/1000μs waveform,
• Repetition rate (duty cycle): 0.01%
• Fast response time
• Reverse cut-off voltage: 11~170V
• Typical IR less than 2μA
• Underwriters Laboratory 94V-0
• MSL 1, according to J-STD-020
• Safety certification: UL
• Complies with IEC61000-4-2 ESD 30KV air, 30KV contact

Potential applications:

• I/O interface
• AC/DC power supply
• Low-frequency signal transmission line (RS232, RS485, etc.)
• Automotive
