Power entry modules DG11/DG12 with new options

Protection against dirt particles and moisture is becoming increasingly important. With the DG11 and DG12 product types and the corresponding V-Lock mains cable, SCHURTER launched an IP54 device connection that was immediately very well accepted. An IP54 value in the plugged-in state in accordance with IEC 60529 offers excellent protection against dust particles and is also splash-proof.

New variants for protection class II

The existing variants of DG11 and DG12 were designed exclusively as 3-pole versions for protection class I applications. There are now 2-pole variants which explicitly meet the higher requirements of protection class II. Of course, this also applies to the associated V-Lock mains connection cable for cord retention.

Special sealing elements

The appliance inlet as well as the connector of the V-Lock power cord have been equipped with special sealing elements to achieve this high IP protection.

Black or white

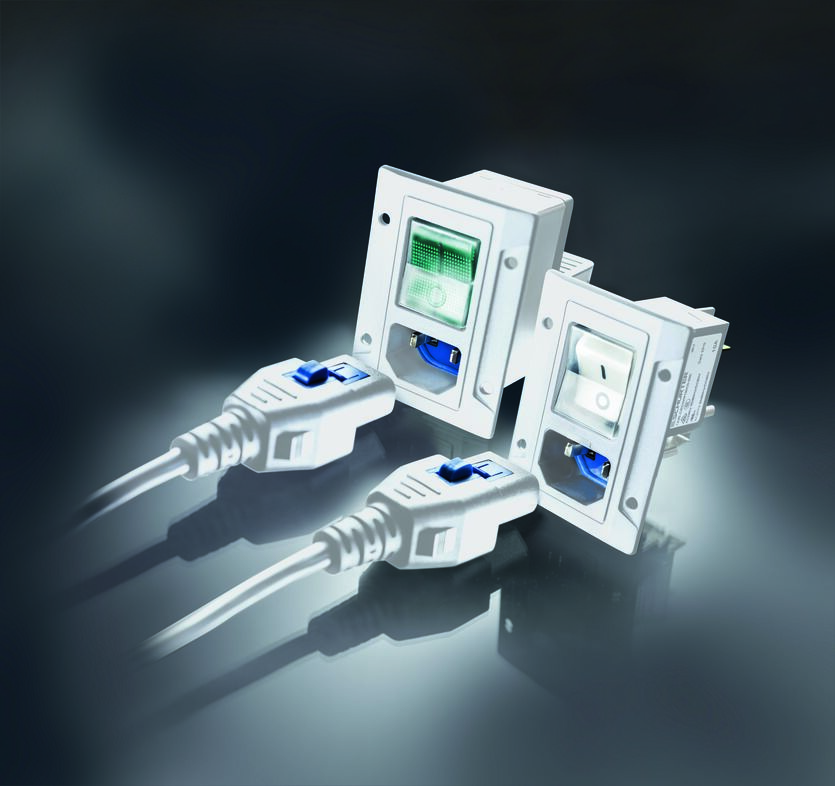

In response to multiple customer requests, SCHURTER now offers the two power entry modules DG11 and DG12 in white as well as the most commonly used black.

Application areas

Wherever dirt, dust particles, or splash water may occur, the new SCHURTER technology is the perfect choice. This may be the case in harsh working environments in industry. In the medical field, a higher IP protection rating is mandatory. This is simply due to the necessity of cleaning and disinfecting medical equipment on a regular basis, and even sterilising it if required. The food processing industry has very similar requirements.
