New series of tiny SMD power inductors
knitter-inductive has implemented the new SMD Power Inductor T-Series, which offers a large saturation current at a very small physical size, on the market.
The new, magnetically fully shielded Inductors are mainly used for DC/DC convertors, voltage regulator modules, embedded PCs and switch mode power supplies.

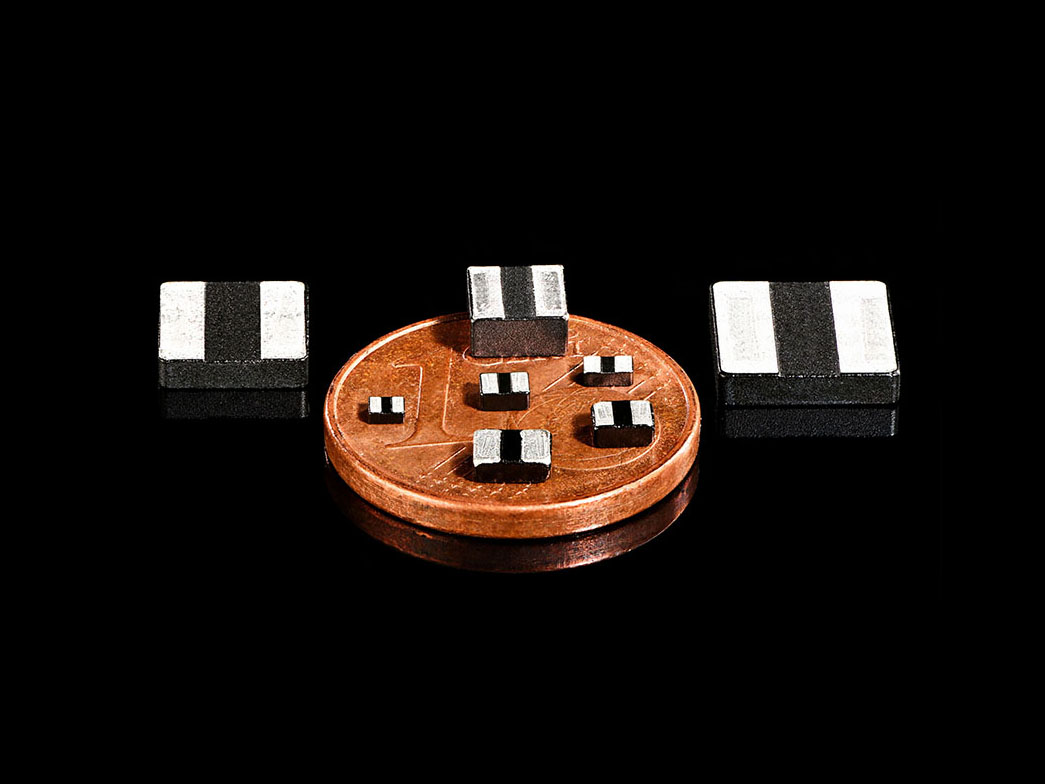

knitter-inductive offers the inductor in many different physical sizes, from 1.6 x 0.8 x 0.8mm up to 6.6 x 6.4 x 3.1mm.
The new series is available from an inductance range of 0.10µH to 10.0µH, a saturation current range of 1.3A up to 35.0A and DCR values starting from 2.0mΩ.
The new T-Series combines many benefits, such as the solid wire which is used for the inner winding and offers a high current and low DCR rating. Next to this the shielded design at a very compact base size that enables the use in a wide range of applications.
The operation temperature is rated from -40°C to +125°C.
The parts are standardly packed in Tape&Reel for a cost efficient and fast assembling process on customer side.

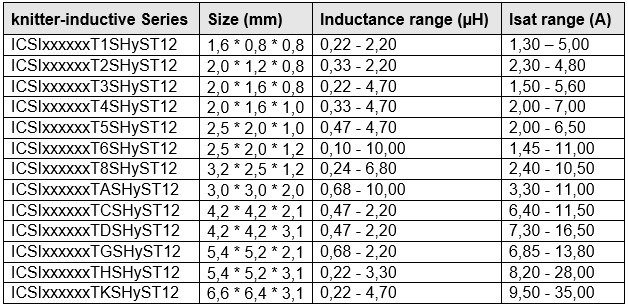

T-Series at a glance
