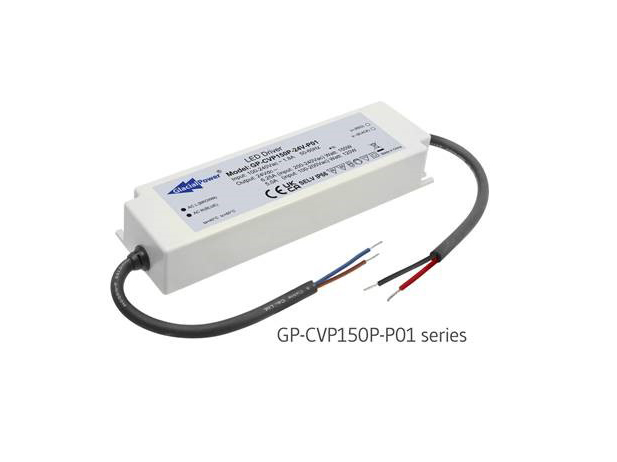

GlacialPower launches GP-CVP150P IP66 series

The GP-CVP150P series is designed with active PFC, at full load the active power factor correction (PFC) which greater than 0.98 at 115VAC, and more than 0.95 at 230VAC. It has low no-load power consumption under 0.5 watt and a fast set-up time of under 0.5 seconds at 230VAC. Its power efficiency is up to 91.5%.

The CE of GP-CVP150P series is certified by LED driver product and conformity with European Directives, so GP-CVP150P can be sold as LED driver within the EU area legally. The GP-CVP150P fully complies with ErP (EU) 2019/2020 regulations to reduce the product’s impact on the environment to improve sustainability. GP-CVP150P series is also certified with UKCA (UK Conformity Assessed).

The GP-CVP150P series support the universal AC Input range from 90 to 264VAC, the constant voltage outputs include 12V, 24V, 36V and 48VDC. It is the perfect solution for LED low voltage applications, examples of LED strips, illuminated signage, light boxes, LED neon flex, and 48V magnetic track lights. Supply systems have application areas in lighting, construction, furniture finishing, advertising, the electronics industry, and retail customers.

The protections of GP-CVP150P include over-current protection (OCP), short circuit protection (SCP), over-temperature protection (OTP) and over-voltage protection (OVP) to prevent the product damage and ensure quality. The fully isolated case design enables an operation temperature range of -30°C to 45°C makes the LED driver can be used in most environments.

Because of high power efficiency and advanced design, the dimension of GP-CVP150P is 188 x 53.6 x 32mm and weighs only 645 grams. At the high AC input range (200~264VAC), the 12V rated power can deliver 132W output. Other detailed information is below.

Features:

• Universal AC Input Range 90 ~ 264VAC.
• Constant Voltage mode.
• Active PFC design.
• Protections: OVP / OCP / SCP / OTP.
• High Efficiency up to 91.5%
• Fully Insulated Plastic Case.
• Meet application for ErP (EU) 2019/2020
• No-load power consumption < 0.5W at 230VAC
• Set up time < 0.5S at 230VAC.
• Suitable for LED strips and Moving Sign applications.
• Withstand 300VAC Surge Input for 5 Seconds.
