GlacialPower launches constant voltage 24W driver series

All series of GlacialPower GP-CVP plastic case waterproof power supplies have at least IP66 rating and full range voltage input (90~264Vac).

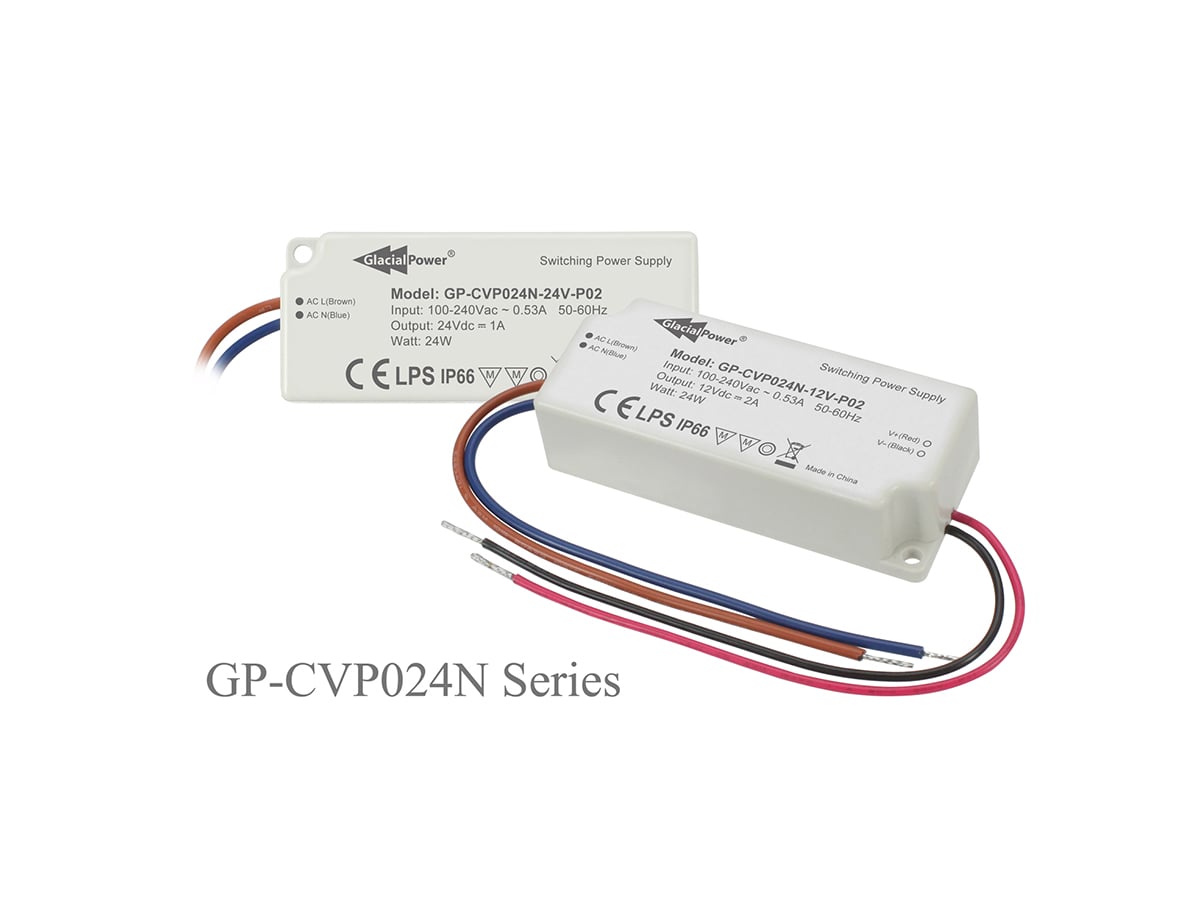

The main applications of the GP-CVP024N-xxV-P02 constant voltage output series power supply include LED strips, light box, channel letters, neon lights and cabinet lights. GP-CVP024N-xxV-P02 has the features of short-circuit and over-current protections, the no-load power consumption is under 0.5W at 230VAC, and the power set-up time is under 0.5 seconds at full load. Operating temperature range from -30°C to 50°C (full load test).

The GP-CVP024N-xxV-P02 series power supply has three constant voltage outputs including 12V, 24V and 48V, which can meet the requirements of these three input constant voltage LED modules and light strips on the market. The GP-CVP024N-xxV-P02 power supply efficiency is 88%, which is higher than power supplies of the same level on the market. It generates relatively little ineffective heat, which is especially important when installed in a small space.

The size of GP-CVP024N-xxV-P02 is only 85 x 35 x 22mm, which is significantly smaller than power supplies of the same power level on the market, so it has a wider range of installation applications. A small power supply is more important for installation in an LED light box. Whether the LED power supply is installed in the middle of the light box or at any other location, a small power supply has less impact on the light refraction inside the light box, so the light emission from the surface of the light box is relatively small. Uniform, smaller and less obvious shadow areas.
