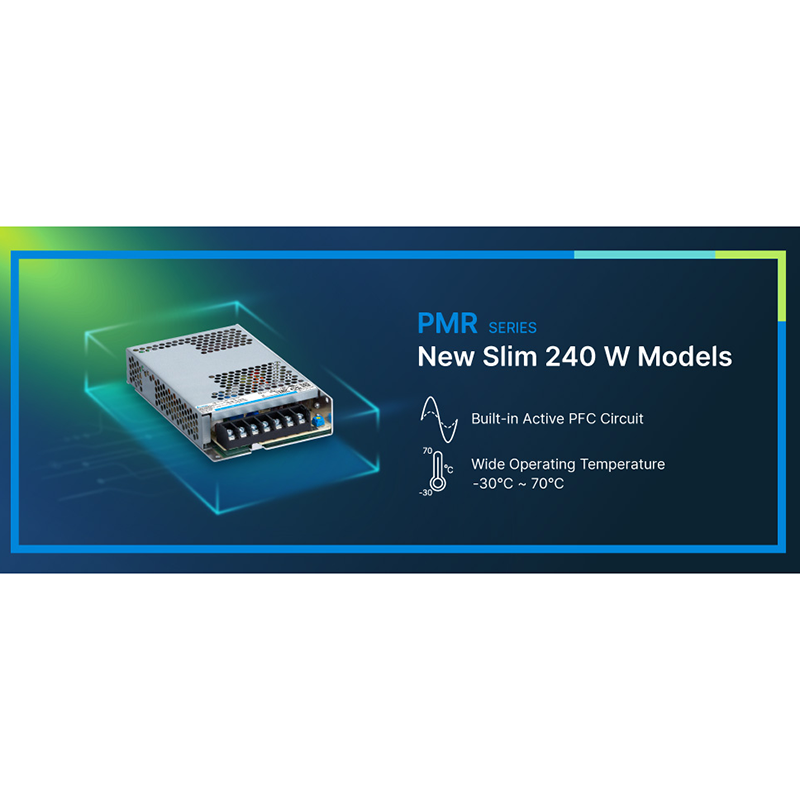

Delta releases 240W panel mount power supply
Delta expands its panel mount power supply PMR series by releasing the new 240W model, which is applicable to industrial, commercial, and household applications.
The new model provides an output power of up to 240W and nominal output voltages of 12, 24, 36, and 48V.
The compact form factor design fits in limited installation space such as control cabinets, machinery, vending machines, and test and measure equipment. The new model of the PMR series has a built-in active PFC circuit that provides high power factor values, raising its efficiency to 93%. It also has a wide operating temperature range from –30°C to +70°C and SCP (short circuit protection), OCP (over current protection), OVP (over voltage protection) safety measures.
It conforms to IEC/EN 60335-1, IEC/EN 61558-1, and IEC/EN 61558-2-16 household appliance standards and obtains harmonic current IEC/EN 61000-3-2 Class A and Class D, shock and vibration standard IEC 60068-2, IEC/EN/UL 62368-1 for ICT, and EMI standard EN 55032 Class B.
The model is also fully compliant with RoHS Directive for environmental protection.
Highlights & Features
- Universal AC input voltage
- Built-in active PFC circuit
- Lower no load power consumption
- 30mm height low profile design
- IEC/EN 60335-1, IEC/EN 61558-1, and IEC/EN 61558-2-16 household appliance standards
- Wide operating temp –30°C ~70°C (Support –40°C cold start)
