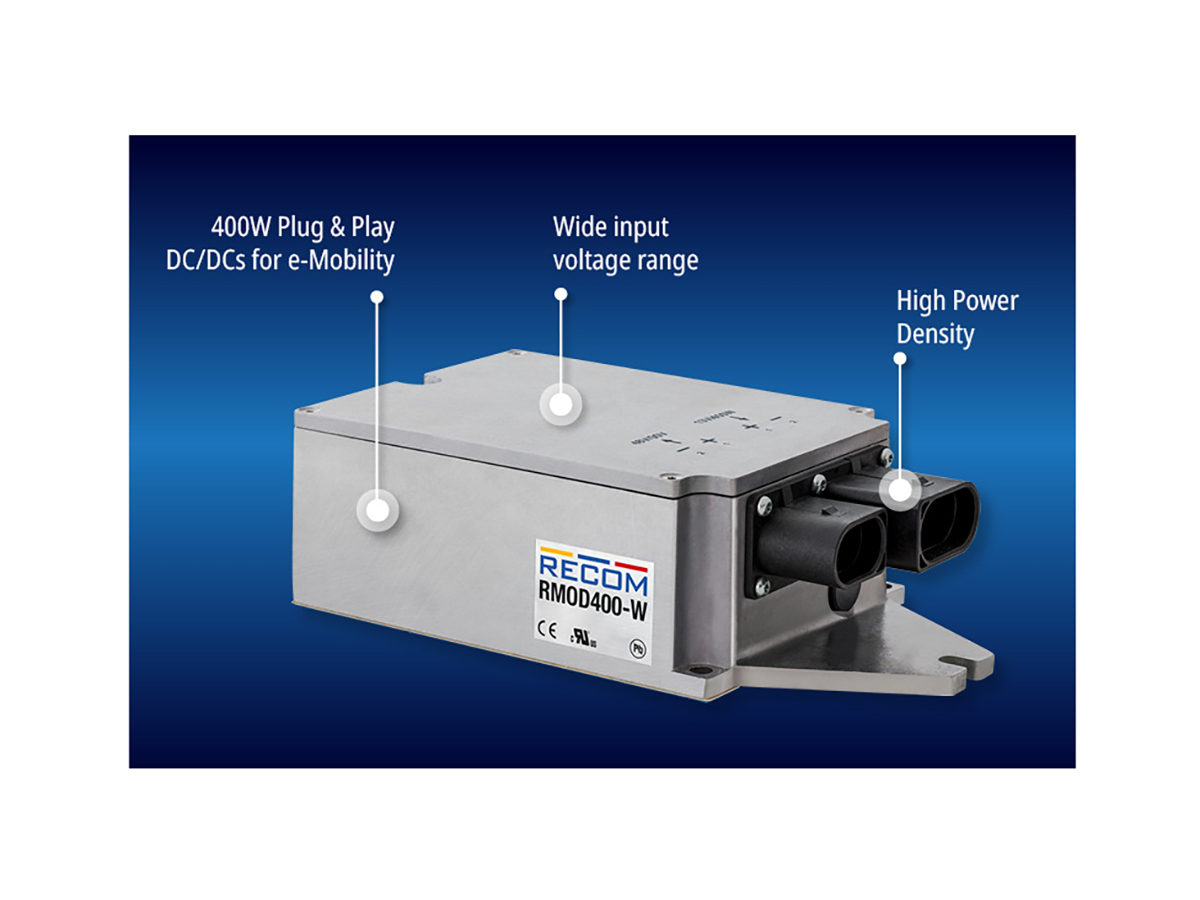

DC/DCs ideal for mobility applications

The RMOD400-28-13SW has a wide 16.8V to 56V input range with 13V output, the RMOD400-60-24SW operates from 33.6 to 96V (125V peak) input with 24V output and the RMOD400-80-13SEW has an extra-wide input continuous input range of 33.6 to 125V, with a 13V output.

Intended for on-board power conversion in mobility and industrial vehicles, mounted in unprotected areas, all parts are IP69K rated for protection against water and dust and are ‘ready to use’ with sealed plug-and-play connections. The RMOD400 range is chassis-mounted with baseplate cooling and achieves high efficiency, maintained down to light loads, in a size of just 115 x 203 x 61mm overall, and operates with baseplate cooling to ambient of 85°C without derating.

Ruggedness of the parts is enhanced by comprehensive protection including input reverse polarity, over temperature and output over-current and short circuits. Isolation rating is 2.5kVDC ‘Basic’ grade and safety certifications held are IEC/EN/UL/CSA 62368-1. Parts are qualified to standard EN 60068 for resistance to temperature cycling, shock and endurance, humidity/heat cycling, vibration, mechanical shock and salt spray.

Marco Kuhn, Plug & Play DC/DC product manager of RECOM comments: “Our RMOD series of DC/DCs are ‘ready to use’ in a wide variety of mobility applications with different nominal battery voltages. Because of their comprehensive qualifications, you can fit them anywhere with confidence in a high-reliability solution”.
