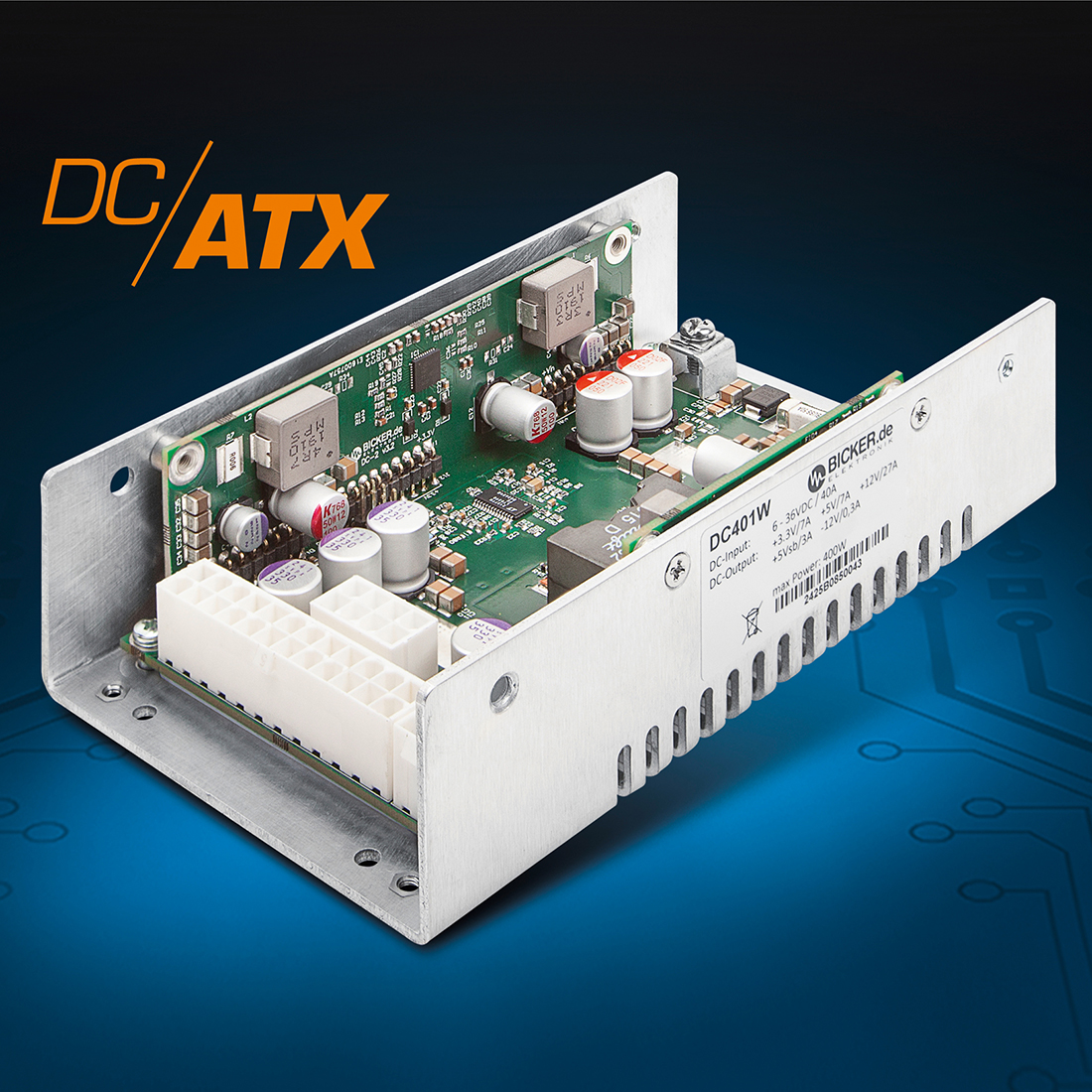

Compact 400W DC-ATX PSU with wide-range input

Equipped with an ultra-wide input range of 6 to 36VDC and ATX outputs, the highly efficient DC401W delivers a continuous fanless power of 400W. The compact 1U power supply has a modern circuit design according to ATX3.0 specification and thus meets the performance requirements of the latest processor generations. The converter is designed for 24/7 continuous operation in the extended temperature range and delivers its full power from -20° to +60°C.

Quality and reliability

Developed and manufactured in Germany, the DC401W meets the highest quality standards. In addition to a carefully thought-out design, Bicker Elektronik consistently uses high-quality components such as polymer aluminum capacitors, which is reflected not least in a particularly long service life of over 10 years.

Versatile fields of application

With an input voltage range of 6 to 36 VDC, the DC401W ensures a reliable and safe power supply for motherboards even in the event of major fluctuations in the supply voltage or when used in mobile on-board power networks (12V/24V). No base load is required at the precisely regulated ATX outputs (+3.3V, +5V, +12V, -12V, +5V standby). In addition, the flexible cable management makes it possible to use customer-specific cable harness solutions. For this purpose, upon request Bicker Elektronik offers an assembly service for the customer's cable harnesses with individual cable lengths and plug connections.

Reliable compatibility thanks to design according to ATX3.0 specification

The DC401W was designed as an ATX power solution for compact, fanless computer systems. Thanks to the ATX3.0 specification design, the power supply ensures a reliable and stable power supply for current motherboards with the latest Intel® Core™ processors. These CPUs have a highly dynamic power consumption with sometimes extreme jumps in performance within a very short time. Bicker Elektronik explicitly took this into account when developing the DC/DC converter and designed an optimised circuit design that can meet the requirements and offers excellent control stability even at demanding CPU power levels (PL2). In comparison, with a non-optimised converter, the highly dynamic load jumps of the CPU in boost mode can lead to critical voltage drops that are outside the ATX specification and can therefore cause unstable system behaviour.

Highly efficient DC/DC converter with fanless contact cooling

With a high efficiency of up to 94% and an optimised thermal design, the DC401W is characterised by high efficiency, minimal heat generation and long-term reliability. A thermal pad on the underside of the circuit board ensures optimum thermal connection of the power components to the housing. This ensures safe and efficient contact cooling.

All product advantages at a glance

• High-power 400W DC/DC converter
• Fanless contact cooling via thermal pad
• Over 10 years polymer capacitor lifetime
• Very compact design in a 1U chassis
• Ultra wide input range 6...36VDC
• ATX output voltage +12 V / 27 A, +5 V / 7 A, +3.3 V / 7 A, –12 V / 0.3 A and 5 Vsb / 3 A
• Excellent control properties
• Full performance in the temperature range -20°...+60°C
• Very high efficiency up to 94%
