Buck converter module aids power system design
The EM3707/A/B is a high-efficiency step-down buck converter module available now from distributor Ineltek.

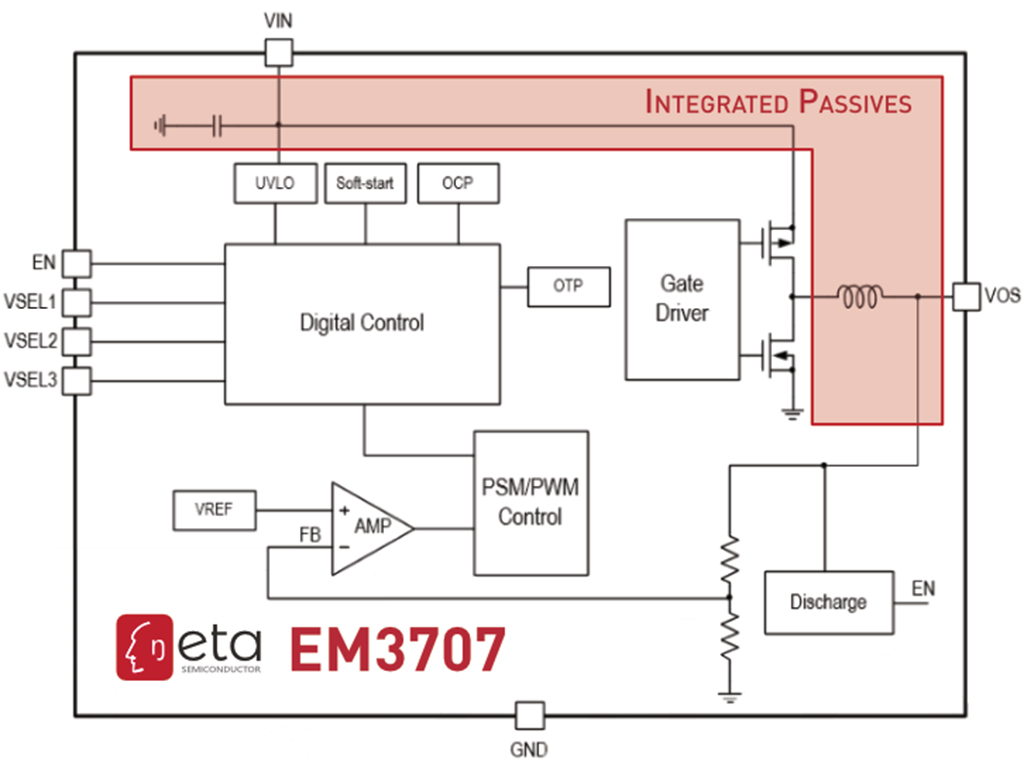

It is based on ETAs ETA3707 buck converter with built-in power MOSFETs, inductorand capacitor.
The integrated structure simplifies the power system design.
The EM3707/EM3707T can provide programmable output voltages from 1.2V to 3.3V, and capable to deliver up to 1A of output current.
The EM3707A/EM3707AT can provide programmable output voltages from 0.7V to 3.1V, and capable to deliver up to 500mA of output current.
The EM3707B/EM3707BT can provide programmable output voltages from 0.5V to 1.9V, and capable to deliver up to 500mA of output current.
The core features of the whole series cover:
- Wide input voltage range: 2.1V-5.5V
- Less than 450nA typical quiescent current
- Integrated MOSFETs, inductor and capacitor
- Up to 1A(EM3707) and 500mA(EM3707A/B) maximum output current
- Up to 94% efficiency
- 2MHz switching frequency
- Programmable output voltage
- Adaptive COT control
- Ultra-fast load transient response
- High Efficiency PFM mode at light load
- Over current protection
- Over temperature protection
- Similar DFN3x3 package with 1.2mm and 0.91mm package thickness
