Alpha and Omega Semiconductor half-bridge MOSFET

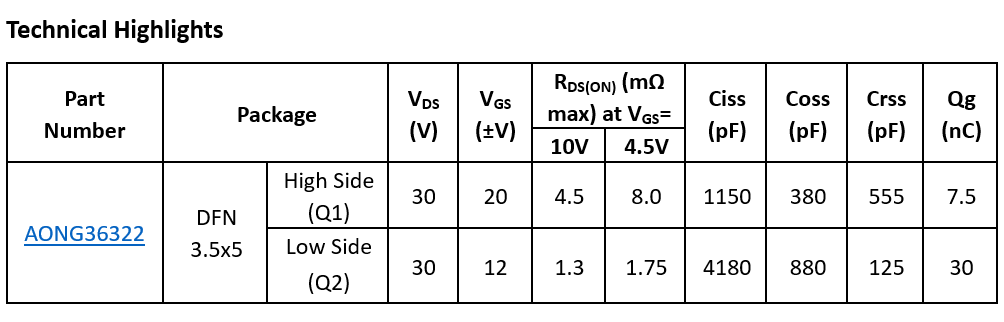

The new AONG36322 features two 30V MOSFETs in a half-bridge configuration where the high-side and the low-side MOSFETs are in an asymmetric DFN3.5x5 XSPairFET package. This innovative design allows the AONG36322 to replace an existing DFN5x6 asymmetric half-bridge MOSFET with an approximate 60 percent space-saving solution, thereby reducing the PCB footprint to further streamline the DC-DC architecture, resulting in a more efficient design. These benefits make the AONG36322 ideal for a new generation of smaller DC-DC buck converters in more compact applications such as point-of-load (POL) computing, USB hubs, and power banks.
