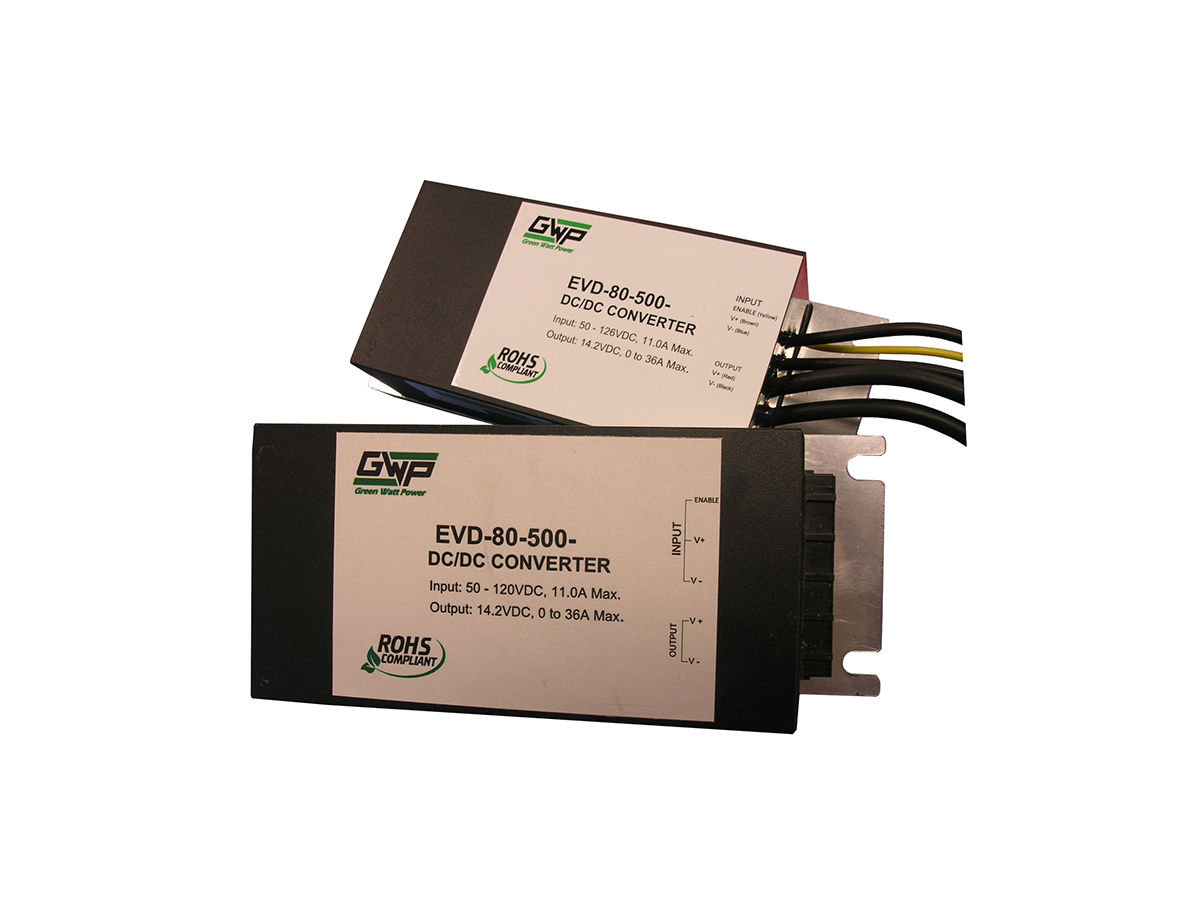

500W DC/DC now with IP67 for e-mobility

The EVD500 has two DC input ranges, with output voltages for 12V and 24V batteries to power auxiliary EV functions such as lights, instruments, accessories, etc. In addition, unlike most DC/DC converters in the EV market, the EVD500 has a constant current function, so it can connect directly to a battery load. It also features Enable/Remote on/off and superior low battery conservation with a Quiescent Current draw of less than 30uA.

The EVD500 Marble Series is fully input-to-output isolated and protected by, Input Under Volage Lockout, Reverse Polarity, Over Voltage, Short Circuit and Over Temperature Protection.

Top features:

• DC Input Ranges of 30-65V and 50-130V

• DC Output Voltage of 13.5V or 27.5V

• Output Power of 500W to 5000W with Parallel

Connection of Up to 10 Units

• High Efficiency of Up to 93%

• All-Around Protections: IRPP, UVLO, OVP, SCP, OTP

• 1.5kV Input-to-Output isolation Test Voltage

• Designed to Meet IEC, UL, CSA Safety Requirements

• Wide Working Temperature: -40oC to +85oC Tc

• Available with Molex Connector or Flying Leads

• IP67 Ingress Protection Rated Enclosure

• Industry Standard Size and Footprint

Through advanced automation manufacturing facilities, Green Watt Power is able to provide the highest quality products for the lowest possible cost.  Units are available direct and from Digi-Key with lead times from stock to 8 weeks.
