What is MOV in electronic components?

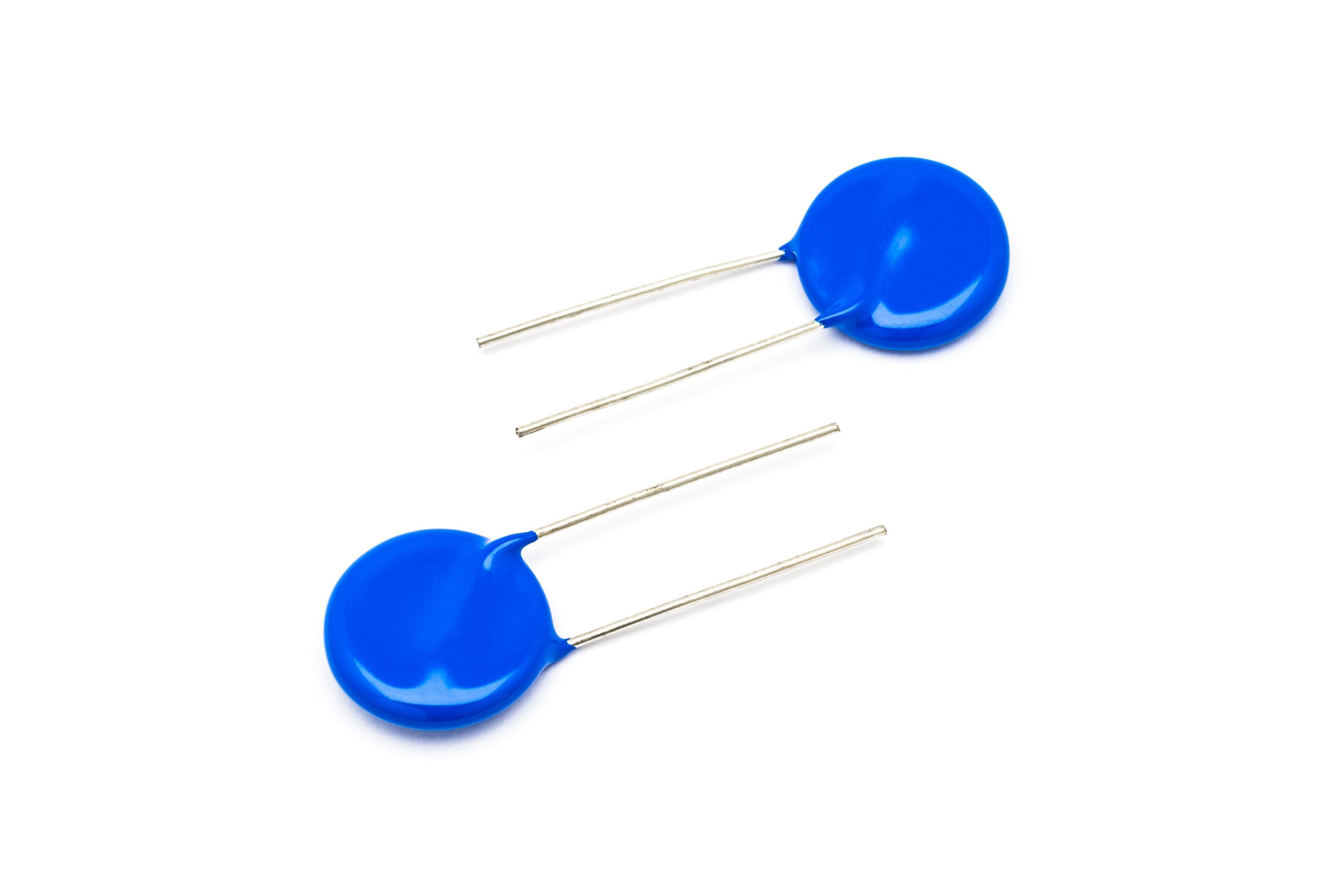

An MOV is constructed using a mixture of metal oxides, primarily zinc oxide, combined with small amounts of other metal oxides like bismuth, cobalt, or manganese. These materials are pressed into a ceramic-like disc and sandwiched between two metal electrodes, which are then encapsulated in a protective coating to withstand environmental factors such as moisture and temperature fluctuations.

The operating principle of an MOV relies on its non-linear voltage-current characteristic. At normal operating voltages, the MOV exhibits high resistance, allowing minimal current to flow through it. However, when the voltage across the MOV exceeds a specific threshold – known as the clamping or breakdown voltage – the resistance drops significantly, allowing the MOV to conduct large amounts of current and divert the excess energy away from sensitive parts of the circuit. Once the voltage returns to normal levels, the MOV resumes its high-resistance state.

Why are MOVs used in electronics?

MOVs are used in electronics to protect devices and systems from overvoltage events, such as power surges caused by lightning strikes, switching transients, or electrical faults. These events can introduce voltages much higher than a circuit is designed to handle, potentially damaging or destroying sensitive components like microprocessors, diodes, and capacitors. The primary reasons for using MOVs are:

Overvoltage protection. MOVs act as a buffer, absorbing and redirecting transient energy to prevent overvoltage from reaching critical components. This protects against damage, ensures the longevity of devices, and maintains system reliability.

Cost-effectiveness. MOVs are relatively inexpensive compared to the damage they can prevent. This makes them a practical choice for mass-produced consumer electronics, industrial equipment, and power distribution systems.

Compact design. Despite their small size, MOVs can handle high-energy transients, making them suitable for applications where space is a constraint.

Wide application range MOVs can be used in various settings, from low-voltage consumer devices like mobile chargers and televisions to high-voltage industrial equipment and power grids.

Applications

MOVs are ubiquitous in modern electronics. Common applications include:

• Consumer electronics: protecting devices such as televisions, gaming consoles, and home appliances from power surges.
• Industrial systems: safeguarding control systems, motors, and automation equipment from electrical noise and surges.
• Telecommunication: ensuring stable operation of communication equipment by protecting against lightning-induced surges.
• Power supplies: shielding power supplies and chargers from overvoltage conditions to prevent damage and extend operational life.

Limitations

While MOVs are highly effective, they have limitations:

Finite lifespan. Each surge event slightly degrades the MOV's material, reducing its effectiveness over time. High-energy surges can cause the MOV to fail completely.

Thermal considerations. Prolonged exposure to high currents can cause an MOV to overheat, potentially leading to catastrophic failure if not adequately protected or thermally managed.

Clamping voltage limitations. The clamping voltage of an MOV must be carefully selected to match the circuit's operating voltage. If the clamping voltage is too high, it may not protect against smaller surges; if too low, it could cause unnecessary conduction.

Choosing the right MOV for your application

Selecting an MOV involves several factors:

• Clamping voltage: the MOV's clamping voltage should exceed the circuit's maximum operating voltage but remain low enough to protect against surges.
• Energy absorption rating: this determines how much energy the MOV can safely absorb during a surge event.
• Response time: MOVs typically respond to transients in nanoseconds, making them suitable for most surge protection applications.
• Physical size and form factor: larger MOVs generally offer higher energy absorption capacity, but they may not fit in all designs.

MOVs are indispensable components for protecting electronic circuits from overvoltage events. By providing a simple, cost-effective means of managing voltage surges, they enhance the safety, reliability, and longevity of devices across industries. Despite their limitations, MOVs remain a preferred choice for surge protection, particularly when combined with other protection mechanisms like fuses or circuit breakers. Proper selection and application of MOVs are critical to ensuring the optimal performance of electronic systems.
