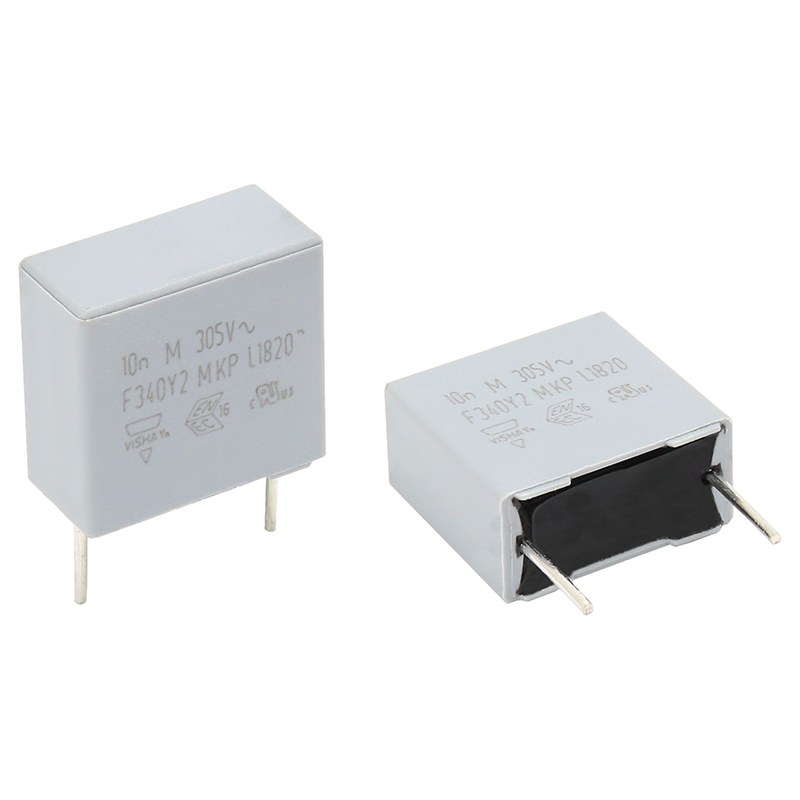

Vishay F340 Y2 EMI suppression capacitors now at Rutronik

The Automotive Grade components are suitable for operation up to 125°C for limited time as well as for common mode filtering in DC buses up to 1.500 VDC. As a result, they are ideal for EMI filtering in automotive and industrial power electronic applications under very harsh environmental conditions.

The F340 Y2 film capacitor series is designed for a rated voltage of 305VAC and provides a capacitance range from 0.01µF to 1µF. Furthermore, the capacitors can be used with DC voltages up to 1,500 VDC at +85°C and 1,000 VDC at +105°C. The film capacitors use polypropylene film as a dielectric and are installed in a flame-retardant plastic housing sealed with epoxy resin and tested in accordance with UL class 94 V-0.

They are RoHS-compliant, lead-free, and are predestined for applications under particularly harsh conditions, such as in automotive BEV/PHEV applications (OBC, e-compressors, heating systems, traction inverter) or renewable energy inverters, industrial motor drives, UPS systems, or other standard line bypass Y2 applications.

Benefits at a glance:

• 305 VAC rated voltage
• Capacitance range from 10nF to 1µF
• Very high robustness under humidity, withstanding 85°C / 85° R.H. / 1.000 h at URAC
• THB Grade IIIB acc. IEC 60384-14: 2013 ed.4 / AMD1: 2016
• Operating temperatures up to +125°C (limited time)
• Rated DC voltage up to 1,500 VDC at +85°C and 1,000 VDC at +105°C
• Epoxy-sealed, flame-retardant plastic housing tested according to UL class 94 V-0
• Lead pitches of 15mm, 22.5mm, 27.5mm, and 37.5mm

Application examples:

• Automotive industry
• OBC
• HVAC e-compressors / heating systems
• Traction inverter
• Industry
• Inverters for renewable energies
• UPS systems
• Industrial motor drives
