Rutronik stocking X1/Y2 and X2 MLCCs of the SC and ST series

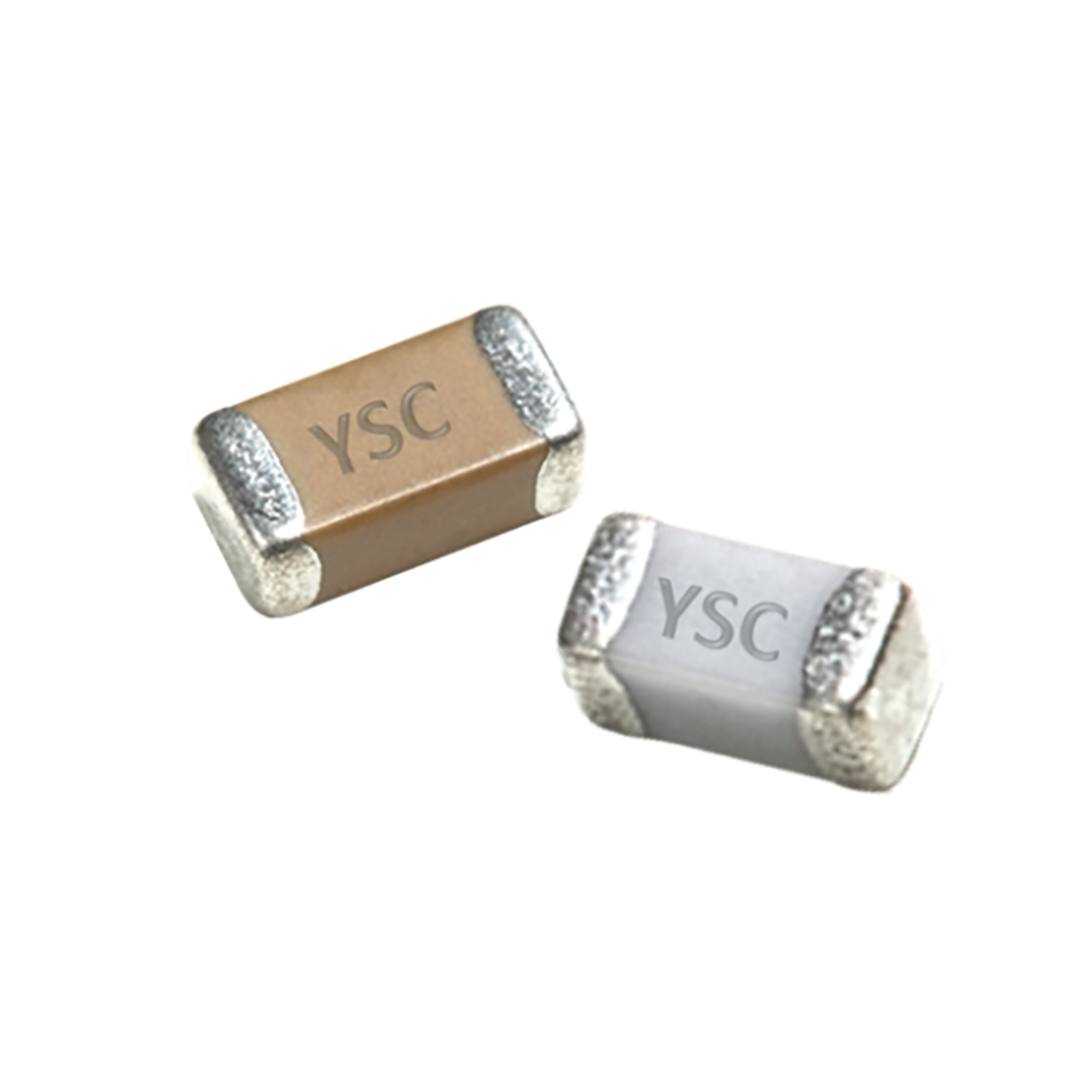

They are available as X1/Y2 and X2 MLCCs with NPO and X7R TCC. All SC series are UL and TÜV certified. The components of the ST series (with soft termination) also impress with their good performance under bending stress on the circuit board. The safety grade capacitors, as well as other products from YAGEO, are available as tape & reel packages.

The capacitor consists of a rectangular block of ceramic dielectric containing a series of nested metal electrodes. This structure results in a high capacitance per unit volume. The inner electrodes are connected to the two end terminals and finally covered with a layer of plated tin (NiSn). The terminals are lead-free. The components are available in three different package sizes with a wide range of possible variations:

• 1808 (4.5 mm +0.6/0.9 mm / -0.3 mm (L) x 2.0 mm ±0.3/0.4 mm (W) x 1.25/1.6/2.0 mm ±0.2 mm (T))
• 2211 (5.7 mm ±0.4/0.5 mm (L) x 2.8 mm ±0.3/0.4 mm (W) x 1.6/2.0/2.5/2.8 mm ±0.2/0.3 mm (T))
• 2220 (5.7 mm ±0.4/0.5 mm (L) x 5.0 mm ±0.4 mm (B) x 2.0/2.5/2.8 mm ±0.2/0.3 mm (T))

Further benefits at a glance:

• Capacitance range from 10 pF to 56 nF
• Surface mountable (SMD)
• NP0/X7R, X1/Y2 & X2
• RoHS compliant
• Halogen free

Application examples:

• PCs, notebooks
• Networks
• Power supply

General tasks:

• General use at power inputs
• Filtering of electromagnetic interference (EMI)
• Protection of equipment from damage caused by power surges, lightning, etc.
• Protection of machine users from electric shock
• Ensuring high resistance to mechanical and thermal stress (ST series)
