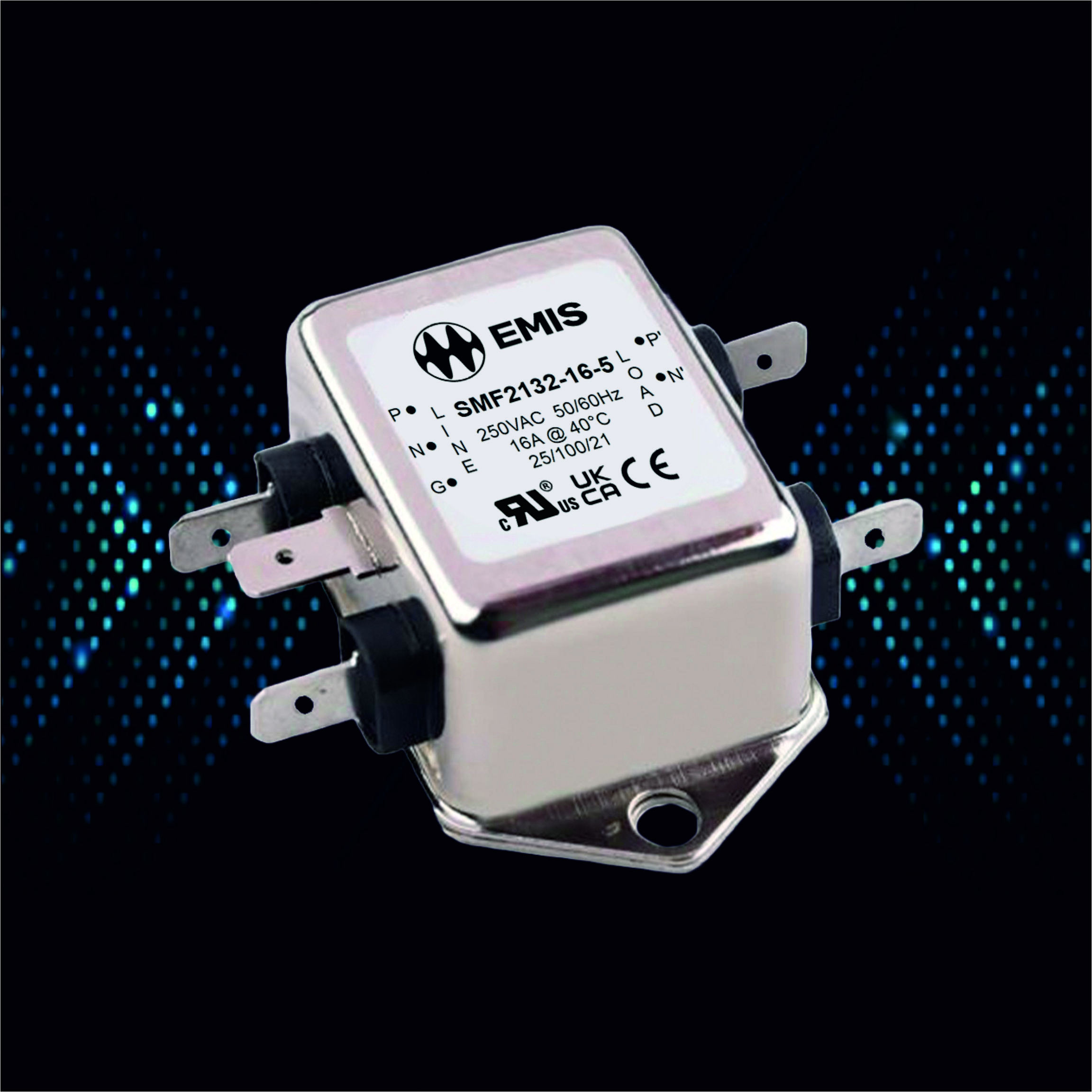

EMIS SMF2132 EMI Filter manages high interference

These EMI Filters are designed to suppress both common mode and differential mode noise caused by switching semi-conductors and are manufactured from high-quality materials for durability and long-term performance, often with low failure rates.

The compact chassis mounting device is simple to mount and available with a number of termination options depending on power rating and may be used in applications such as power systems, frequency converters, servo drives, conveyor belts, consumer goods, industrial and food service equipment, vending machines, electronic equipment, electronic data processing systems, inverters, and uninterruptible power supplies (UPS):

Key specifications include:

• Maximum operating voltage – 250VAC, 50/60Hz and 250VDC
• Rated current – 1A to 30A @ 40°C
• Operating frequency – DC to 400Hz
• Operating temperature range – 25°C to +100°C

EMIS aims to offer an end-to-end solution to meet industry’s ongoing EMI Challenges. With a robust global supply footprint across eight industry segments, EMIS is continuously investing in technology and skills to deliver its promise of efficiency with seamless customer support.

EMIS has been designing and manufacturing EMI filters for more than 40 years and is a global source for efficient EMI and EMC solutions across all industries, applications, and the frequency spectrum. Products available include EMI/EMC components, feedthrough components, power quality, military grade filters, and surge protection.

Customers are supported by a very experienced consulting team, a fully equipped Pre-Compliance Lab and a huge safety certified standard product offering of over 2,500 part-numbers produced in their own very efficient facility.
