Sony ISX031: a perfect fit for outdoor applications?

Factors such as varying lighting conditions, harsh weather, and the presence of dust or moisture can impact the performance of cameras. However, sensors play a crucial role in mastering outdoor imaging by offering advanced features tailored to these demanding conditions. By leveraging sensor advancements, imaging solutions can overcome the challenges and provide accurate imaging for applications like surveillance, monitoring, and outdoor robotics.

Key features of Sony ISX031 image sensor

Sony ISX031 image sensor has gained significant attention in outdoor applications due to its exceptional performance and robust features. With its cutting-edge technology and advanced capabilities, the ISX031 offers unparalleled image quality, enhanced sensitivity, and robustness, making it an ideal choice for various outdoor scenarios. Let’s go deep into its features to understand why ISX031 is a perfect fit for outdoor applications.

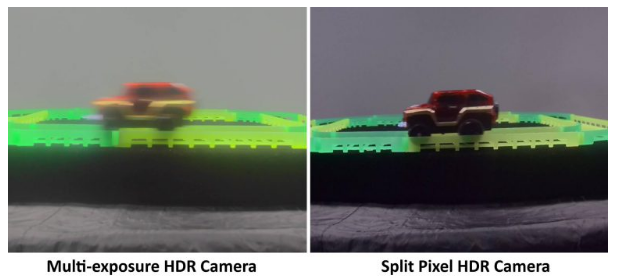

In-built ISP with sub-pixel HDR technology

In addition to its impressive image resolution, colour accuracy, and low-light performance, the ISX031 also features an in-built ISP (Image Signal Processor) with sub-pixel HDR technology. This addresses the challenge of motion blur. With sub-pixel technology, each pixel on the sensor is split into two sub-pixels, enabling the capture of brighter and darker areas of the scene simultaneously. It results in reduced motion blur, as the camera captures images without sequential exposures. Combined with HDR (High Dynamic Range) capabilities, the ISX031 ensures accurate representation of colours and delivers vibrant and true-to-life images

Enhanced sensitivity and low-light performance

When it comes to outdoor applications, dealing with low-light conditions is inevitable. Sony ISX031 excels in this aspect, offering enhanced sensitivity and remarkable low-light performance. The sensor’s back-illuminated structure allows more light to reach the photodiodes, improving light-gathering efficiency and reducing noise.

So, it ensures that critical details are preserved, even in challenging lighting situations such as dusk or poorly lit outdoor areas.

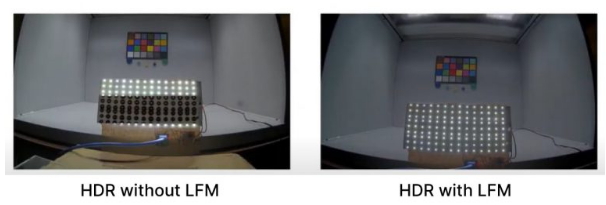

LED Flicker Mitigation (LFM)

Outdoor environments often have various sources of artificial lighting, including LED lights, which can introduce flickering issues in captured images. The LFM technology integrated into the ISX031 sensor effectively mitigates these flickering effects, ensuring consistent and stable illumination for accurate image capture. By minimising or eliminating the impact of LED flicker, the ISX031 enables reliable and high-quality imaging in outdoor scenarios, such as surveillance or automotive applications, where precise identification and analysis of objects and individuals are critical.

Robustness and reliability

Outdoor applications demand image sensors that are built to withstand harsh environmental conditions. The Sony ISX031 is designed with robustness and reliability in mind. It incorporates advanced protective features such as anti-shock and anti-vibration mechanisms, ensuring stable performance even in rugged environments.

Plus, the ISX031 is equipped with an integrated temperature sensor that helps manage the sensor’s temperature during extreme weather conditions, preventing overheating or malfunction. Finally, as it is an AEC-Q100 Grade 2 certified sensor – there’s assurance that it has undergone rigorous testing and meets the standards for performance and reliability.

Which applications can perform better with Sony ISX031 image sensor?

As outdoor applications continue to expand and evolve, the Sony ISX031 remains at the forefront, setting new benchmarks for image sensor technology and revolutionising how we perceive and utilise outdoor imaging solutions. Some of the applications it can readily support include:

• ADAS and autonomous vehicles
• Delivery robot
• Surveillance systems
• Traffic monitoring systems
• Crop monitoring robots
• Autonomous Agriculture vehicles
• Sports broadcasting systems

STURDeCAM31 – A GMSL2 HDR camera Based on Sony ISX031

e-con Systems will soon be released the STURDeCAM31, a 3MP GMSL2 HDR IP69K camera equipped with a 15-meter coaxial cable. It is based on the advanced 1/2.42″ ISX031 CMOS image sensor from Sony, renowned for its superior capabilities. Designed with automotive-grade precision, this camera has a high-performance 3MP CMOS sensor and a finely-tuned Image Signal Processor (ISP), resulting in exceptional image quality.

Its High Dynamic Range (HDR) feature ensures reliable imaging even in challenging outdoor lighting conditions. Additionally, the STURDeCAM31 features the innovative LED Flicker Mitigation (LFM) technology, guaranteeing accurate image capture when dealing with pulsed light sources such as LEDs.

Encased in an IP69K-rated enclosure, it also comes with a factory-focused and glued IP69K M12 lens, enhancing its ruggedness and durability.
