Say cheese! Multi-chip LED improves camera flash applications

27th June 2017

Alice Matthews

0 0

There is a new addition to the Oslux family from Osram Opto Semiconductors. For the first time, two LED chips and a lens have been integrated into a module. The compact Oslux S2.1 multi-chip LED brings together all the high-tech company’s extensive technical know-how into a new LED version for camera flash applications. With its brightness of 125 lux, it provides uniform illumination of photos and video recordings from mobile devices such as smartphones.

Osram Opto Semiconductors is adding the new Oslux S2.1 to its portfolio for camera flash applications. It combines two chips in different colour temperatures, a cold white chip with 6,000K and a warm white chip with 2,250K (Dual-CCT), providing both a multi-chip LED and a lens for the first time.

According to the company, this not only saves a work step but also produces excellent results. With a maximum deviation of 300K, the Oslux offers colour fidelity and colour uniformity across the target scene.

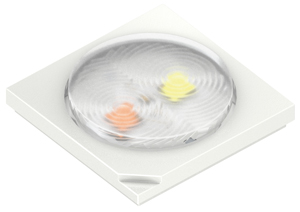

In video lights and camera flash applications, the integration of two LED chips and a silicone lens on one PC board offers clear benefits for the customer. Now no separate step is necessary for optimum positioning of the lens. This does not only save time but also optimises the use of the generated light. While dimensions of 5.0x5.0x1.15mm make the Oslux S2.1 with its lens slightly higher than predecessor models, it requires less space on the board and has a smaller exposed aperture than two single LEDs, making it compact. The silicone lens also allows this module to be reflow solderable, allowing the module to be easily integrated into standard manufacturing flows.

“With the new Oslux S2.1 we were able to achieve very high quality. We have subjected it to both electrical and optically demanding testing and are very happy with the results. It definitely meets our high quality standards,” said Fiona Mak, Product Manager at Osram Opto Semiconductors.
