ASRock unveils iEP-7030E IIoT Controller for intelligent Edge

Core features include integrated Intel ARC graphics for captivating visuals and Intel AI Boost for high-speed AI workloads at the Edge, plus Intel In-Band ECC support for control over critical edge processes. The iEP-7030E Series also unravels optimal flexibility in I/O and expansion design, as well as robust RF capabilities such as 4G LTE, 5G, Wi-Fi 7/6E, and BT 5.3/5.4. The system’s fan-less and rugged design guarantees functionality in harsh environments with –25~70°C wide operating temperature and 9–36V DC wide range power inputs for Basic, 5LAN, 5G, and 8DIO SKUs. The Series offers flexible setup with Basic, PoE, 5LAN-Wi-Fi, 5LAN-5G, 5G-Wi-Fi, and 8DIO SKUs ready for efficient, productive, and secure applications in smart manufacturing, process automation, robotics, smart city infrastructure, AI-driven surveillance, and beyond.

Supercharged AI and graphics enabled by Intel Core Ultra Processors

Enhanced with upgraded CPU, GPU, and NPU, the iEP-7030E Series Industrial IoT Controller leverages Intel Core Ultra 7/5 Processors (Meteor Lake-U/H), integrating supercharged AI and graphics with up to 16 cores and 22 threads (6P+8E+2LPE), for advanced AI computing at the Edge. Featuring integrated Intel ARC Graphics with up to eight Xe-cores (up to 128 graphics EUs) and Intel AI Boost, constituting up to 1.5x top-tier AI performance, 1.81x graphics performance and 2.56x AI performance/power efficiency compared to the previous generation. Additionally, with support of dual DDR5 5600 MHz SO-DIMM memory up to 96GB and In-Band ECC, the Series offers supreme AI computing capability at low power efficiency at the Edge.

Adaptable I/Os, expansions, and multitude of configurations

The iEP-7030E Series is available in compact, fan-less sizes: 55 x 170 x 134mm (W x H x D) for the Basic and 8DIO SKUs, and 68 x 170 x 134mm (W x H x D) for the PoE, 5LAN, and 5G SKUs. These systems feature a wide array of I/O extensions, including four RS232/422/485 serial ports, support for eight digital inputs/eight digital outputs with sink/source isolation 3KV (exclusive to the 8DIO SKU), three USB 3.2 Gen 2x1 ports, one USB 2.0 port, and one line out/mic in port for connecting to various factory equipment. Furthermore, the Series features three 2.5GbE Intel i226-IT LAN ports, two 1GbE Intel i210-AT LAN ports (available in PoE and 5LAN SKUs), along with two optional Intel i210-AT ports supporting IEEE 802.3AF PoE (exclusively in PoE SKU). Additionally, they offer support for one DP++ 1.4a port and one VGA port for high-quality computer vision processing. With a flexible I/O design, the Series caters to diverse and simultaneous AI application demands.

Advanced RF capabilities and scalability for seamless IT/OT connection

The iEP-7030E Series offers extensive connectivity options, supporting 4G LTE, 5G (in 5LAN-5G, 5G-WIFI SKUs), Wi-Fi 7/6E (available in Basic, PoE, 5LAN-Wi-Fi, 5G-Wi-Fi, 8DIO SKUs), and BT 5.3/5.4 RF capabilities. Optional RF and antenna configurations support seven SMA connectors (Basic, 5G SKUs) and five SMA connectors (PoE, 5LAN SKUs), ensuring high-speed data collection and transmission for IoT communication. These systems feature multiple expansion slots, including one M.2 Key B socket (compatible with 3042/3052/2280) for 4G LTE/5G modules, one M.2 Key E socket (supporting 2230/2260) for Wi-Fi/BT modules, and an additional Nano SIM card slot. Storage support is provided through one M.2 2280 Key M slot and one micro SD card slot. Equipped with Intel In-Band Manageability, the Series enables reliable remote management, over-the-air (OTA) updates for firmware/software/applications, facilitating seamless integration between IT and OT systems.

Power-efficient rugged durability for demanding conditions

Embedded within the iEP-7030E Series is a focus on long-term durability and power efficiency. With a robust design and an extensive operating temperature range spanning from –25°C to 70°C (applicable to Basic/5LAN-WIFI SKUs with 15W CPU) and –25°C to 50°C (for either PoE SKU with 15W CPU or all SKUs with 28W CPU), these systems guarantees high resistance to shock and vibration, ensuring reliable performance in demanding conditions. They feature comprehensive power protection mechanisms, including OVP, UVP, OCP, and 80V Surge Protection. The power supply ranges from nine–36V DC (for Basic/5LAN/5G/8DIO SKUs) and 19–36V DC (for the PoE SKU), supporting industrial applications with 2 x 3-pin phoenix type connectors. TPM 2.0 is integrated for industrial security, establishing a trusted computing platform.

Additionally, unique features such as one storage/one user-defined/two debug/two DC-IN LEDs facilitate debugging functions, reducing machine downtime. The Series offers various mounting options such as wall mount, VESA mount, and DIN rail, providing flexibility for diverse application requirements.

With AI-focused CPU, GPU, and NPU enhancements, the iEP-7030E Series enables AI inferencing at the edge while simplifying system complexity and reducing costs, supporting your next-level deployment of edge solutions. For more product information about ASRock Industrial’s new iEP-7030E Series Industrial IoT Controller, go to ASRock’s Website Product Page.

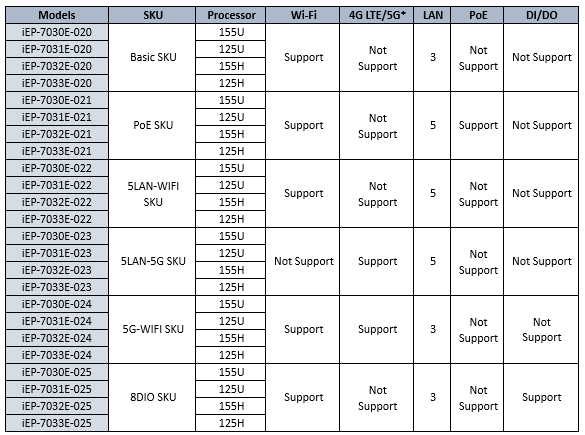

iEP-7030E Series Industrial IoT Controller models

*The WI-FI, 4G LTE and 5G module kits are purchased separately.

*The specification is subject to change without notice. The brand and product names are trademarks of their respective companies.
