Saelig debuts Siglent: portable four-port network analysers

The SNA6000A series of VNAs are useful for determining the Q-factor, bandwidth, and insertion loss of filters. They can handle impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments. These VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SNA6000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, response, and enhanced response for increased flexibility in R&D and manufacturing applications. Output level setting range is –55dBm to +10dBm with a resolution of 0.05dB. Frequency resolution is 1Hz.

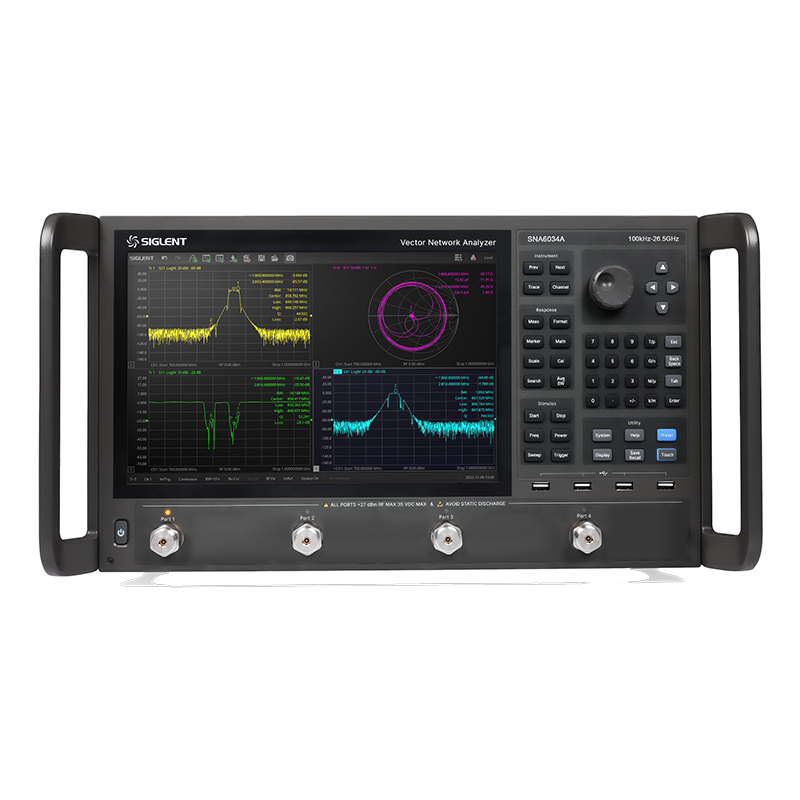

The Siglent SNA6000A series adds full four-port 26.5GHz capability to Siglent’s RF portfolio, with a significant improvement in dynamic range over the previous SNA5000A. Types of calibration include: response, enhanced, full-one port, full-two port, full-three port, full-four port, and TRL calibration.

Types of measurement include: scattering parameter measurement, differential parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement, pulse measurement, etc. Remote control is possible via SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / socket /telnet /WebServer. The 12.1” touchscreen can be viewed via HDMI/DVI-D/D to a larger display.

When combined with Siglent’s SSG6000A 40GHz Generator and their Switch Matrix Port Extension, the Siglent high-performance RF portfolio provides test solutions to a wide range of applications. The Siglent SNA6000A Series Network Analysers are available now from Siglent’s technical distributor Saelig Company.
