ROHM unveils smallest terahertz wave devices

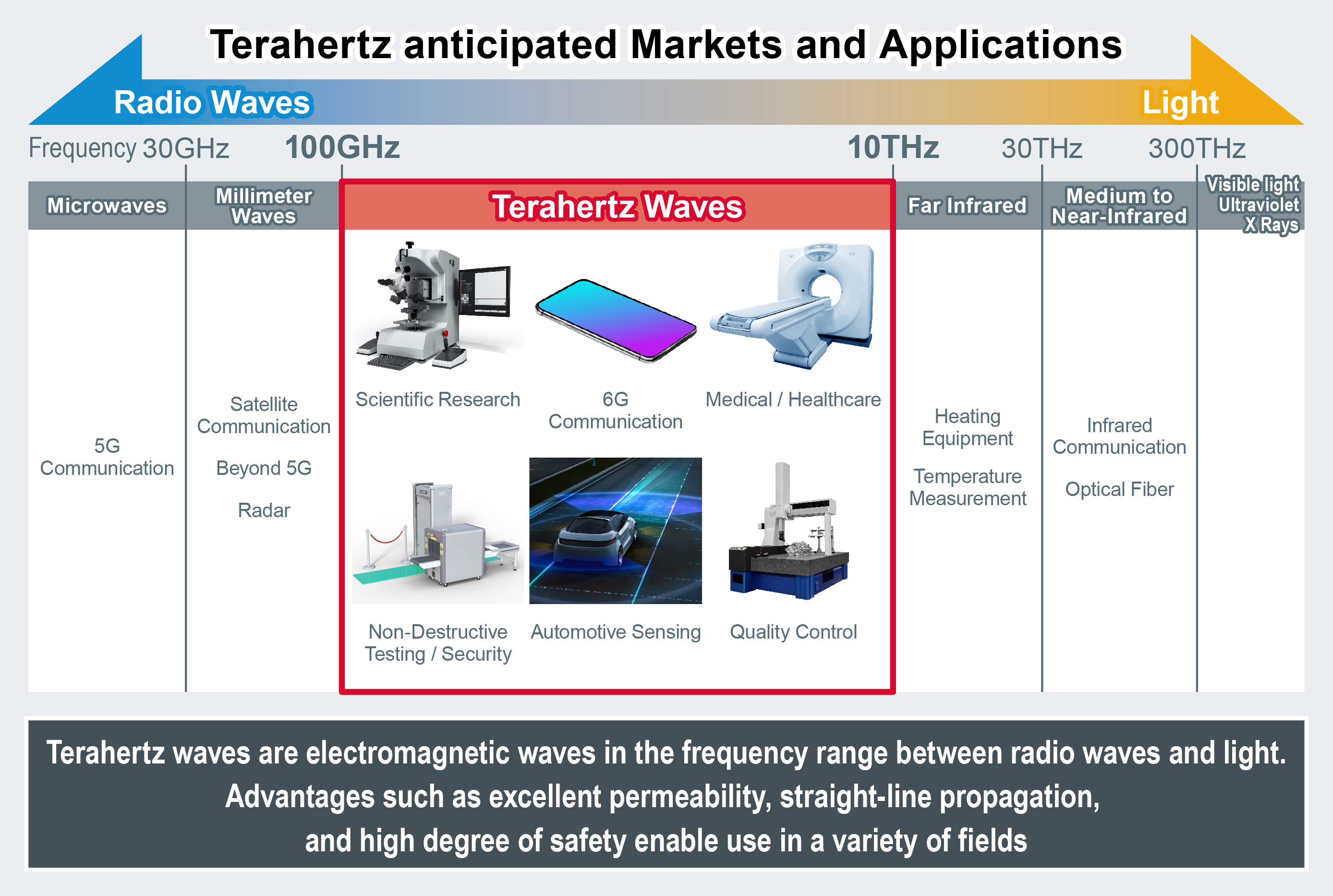

Terahertz waves are anticipated to be applied to non-destructive testing, imaging, and sensing in the medical and healthcare sectors, as well as potentially future ultra-fast communication technologies. Providing these devices contributes to the advancement of terahertz wave applications.

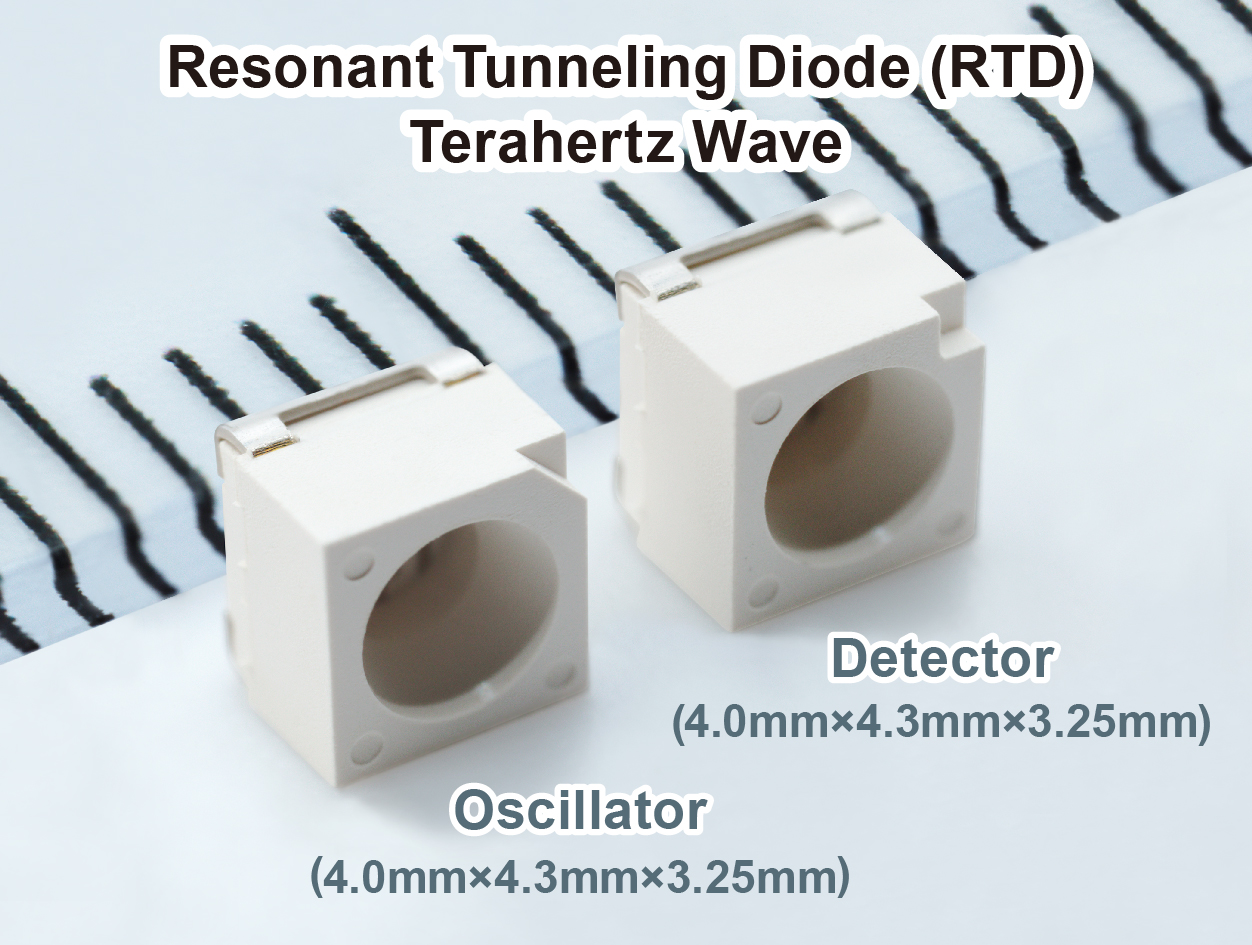

ROHM has developed a 0.5 × 0.5mm RTD chip for terahertz wave generation and detection, capable of oscillating and detecting terahertz waves at a frequency of 320GHz (typ.) with an output power ranging from 10 to 20µW. ROHM will begin offering samples of this RTD element mounted in a PLCC package (4.0 × 4.3mm) commonly used for LEDs. With an extremely compact size, typically one-thousandth of that of conventional oscillators, this innovation enables easy development of terahertz wave applications, even in space-constrained environments.

By positioning the antenna surfaces of the oscillation and detection devices facing each other 10mm apart, a dynamic range of 40dB (typ.) can be achieved. Both oscillator and detector maintain a drive power consumption of 10mW (typ.), while their ability to oscillate and detect terahertz waves at room temperature eliminates the need for cooling equipment required with some conventional methods. These compact, power-saving devices are almost unaffected by the operating environment, enabling use in a wide range of applications.

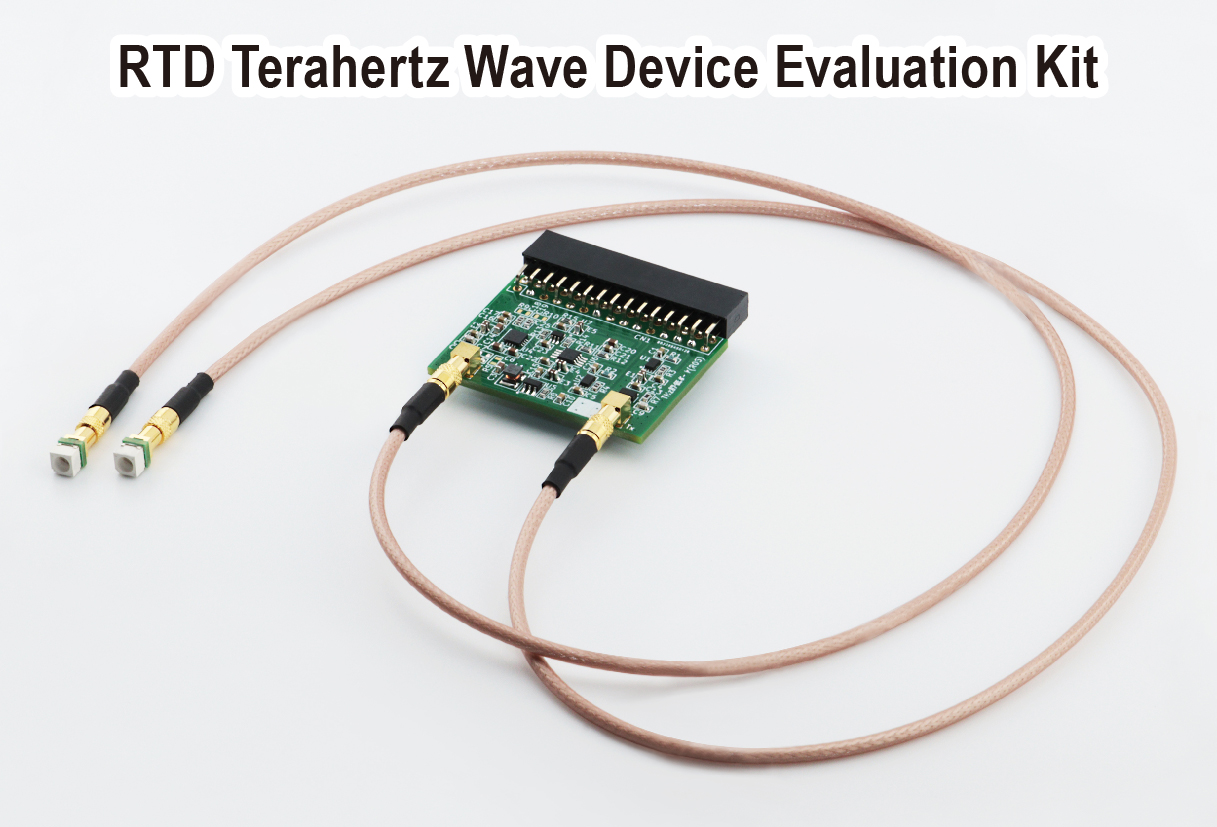

ROHM offers samples of terahertz wave oscillation and detection devices less than one-tenth the price of conventional devices. ROHM also provides evaluation kits that include an evaluation board and other components, allowing users to easily integrate the devices into a research and development environment. The sale of sample products and evaluation kits requires the prior signing of a non-disclosure agreement (NDA) with ROHM.

Professor Safumi Suzuki, Laboratory for Future Interdisciplinary Research of Science and Technology, Institute of Integrated Research, Institute of Science Tokyo “Terahertz waves are expected to be applied to various fields such as imaging, sensing, and wireless communications due to their excellent characteristics and high degree of safety. However, research and development for commercialisation has traditionally required large-scale equipment and substantial costs. In this context, the RTD terahertz wave device – developed through years of collaborative research with ROHM – is an ultra-small 4.0 × 4.3mm device that challenges conventional norms while featuring astonishingly low power consumption and implementation costs. With the launch of device samples, we anticipate that many private companies and research institutions will begin exploring terahertz wave research. We hope that the use of terahertz waves in various fields will lead to the creation of new applications with functions that were previously difficult to achieve. Going forward, we will continue to contribute to society through the development of terahertz wave devices in partnership with ROHM.”

Ken Nakahara, General Manager of ROHM Research & Development Center, ROHM: “The terahertz (THz) R&D team and I are very excited and proud to have reached the point where we can bring this technology to market. We have dedicated ourselves to THz devices for about 15 years; the journey has not been easy. We gathered the forces of industry, academia, and government along the way, and have successfully established the position that ROHM holds today. The team understands that this announcement is just a small step toward the commercialisation of THz technology, but at the same time, it is a giant leap for us. We believe that this small beginning will grow big and contribute to the well-being of our society.”

*ROHM January 15, 2025 study
