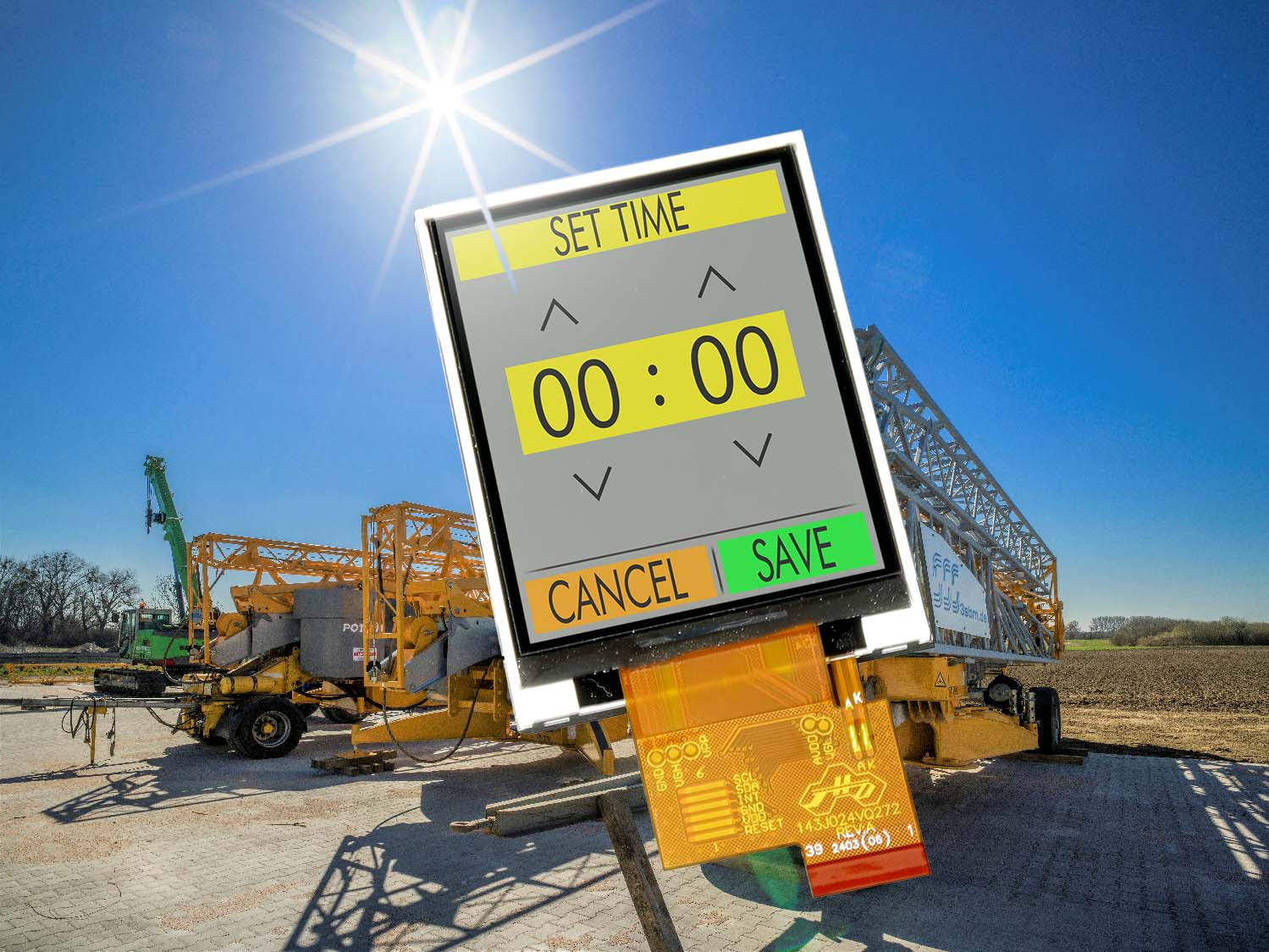

Low-power display for mobile use in sunlight

This means the TFT024-23ATNN can also deliver a sharp and high-contrast display in direct sunlight. In poor lighting conditions, the backlight, with approximately 270 cd/m², helps to improve the readability.

Supplied with 3.3V, the power consumption of the compact colour display without a backlight is an economical 10mA. Based on an eight-hour working day, this is equivalent to an energy requirement of just under 80mAh. This makes the TFT024-23ATNN ideal for installation in mobile devices.

The resolution of the colour display, which is 43mm wide, 60mm high and 3mm thick, is 240 x 320 RGB pixels. Its background is white and the content can be displayed in either colour or black. As an alternative to the standard RGB interface, the TFT024-23ATNN can also be controlled on a PIN-sparing basis via a four-wire SPI interface or a parallel µC data bus with eight or 16 bits. A service life of 50,000 operating hours and reliable operation between -20° and +70°C underscore the great performance of the TFT024-23ATNN for professional use. DISPLAY VISIONS also guarantees long-term availability and full support.
