Large format display provides wide viewing angles and optical performance

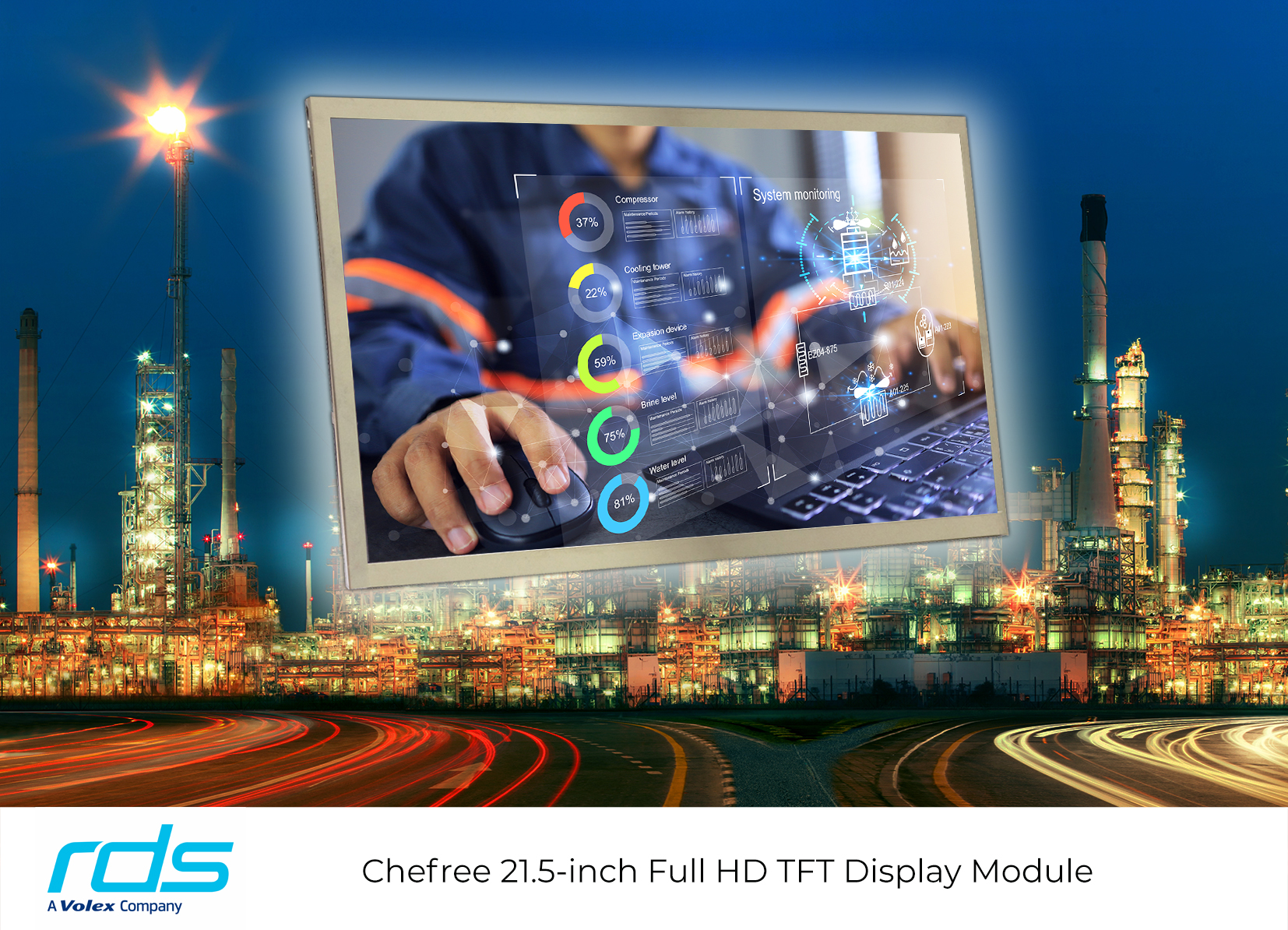

Display solutions and embedded systems provider, Review Display Systems has announced the introduction of a new 21.5-inch TFT display module from industrial display manufacturer, Chefree Technology Corporation.
The C23061500501-215H features Full HD resolution (1920 x 1080 pixels), a 16:9 wide aspect ratio, and vertical alignment (VA) mode display technology which ensures excellent optical performance and wide viewing angles.
The 21.5-inch display features VA wide viewing technology which enables viewing angles of 89 degrees in all viewing directions (left, right and up, down). The display module features a white LED backlight with integrated driver, and a 30K hour half-brightness lifetime, which enables a specified brightness rating of 1500cd/m² and ensures that the 21.5-inch TFT module produces display images that are bright, clear and colourful.
The dual channel LVDS data interface supports 8-bit RGB colour data which enables a colour palette of up to 16.7M colours. The 21.5-inch display module features mechanical outline dimensions of 495.6mm (l) x 292.2mm (h) x 10.35mm (d) and an active display area of 476.64mm (l) x 268.11mm (h). An extended operating temperature range of -20°C to +85°C is supported.
The 21.5-inch TFT display module is ideal for many varied applications including industrial process control, factory automation, in-vehicle systems, point-of-sale systems, digital signage, and medical equipment.
The new Chefree 21.5-inch C23061500501-215H TFT display module is now available from Review Display Systems.
