DISPLAY VISIONS launches the EA-TFT series

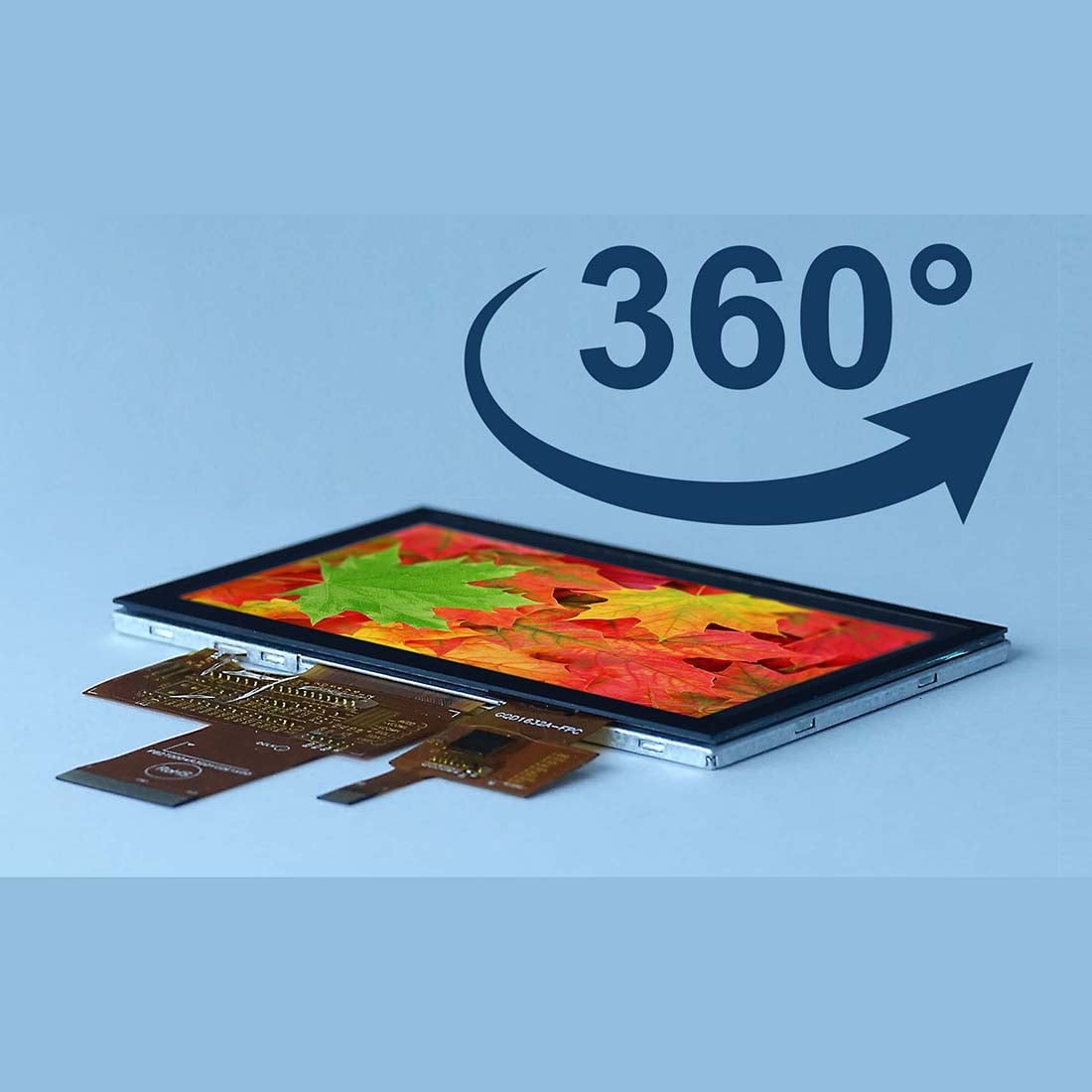

The graphic IPS colour displays from DISPLAY VISIONS have contrast-rich displays from almost every viewing angle. Thanks to a special alignment of the liquid crystals using in-plane switching technology (IPS), in the EA TFT series, the contrast and colours also remain stable with extreme viewing angles. The grey inversion effect typical of other LC display technologies, i.e., the sudden tilting of the display into a negative presentation, does not occur. In combination with the special AACS (all-angle colour stability) backlighting, this results in a display which is clear and easy to read from almost a 360° all-around view. Due to a maximum brightness of over 1,000 cd/m², the display can also be read in extreme light conditions, such as very bright sunlight or underneath a medical lamp.

Designed for heavy-duty industrial use, the displays from DISPLAY VISIONS EA TFT are available in a wide variety of sizes and resolutions. The ultra-compact 1-inch EA TFT009, for example, has a resolution of 80 x 160 pixels and is just 13.5 x 27.9 x 1.5 mm in size. The 7-inch EA R1024X has 1,024 x 600 pixels, with external dimensions of 164.9 x 100.0 x 5.7 mm. The 10.1-inch EA W1280X has an even larger display area. Its resolution is 1,280 x 800 pixels. Its external dimensions are 235 x 161 x 13.1 mm.

A variety of touch panel options

All EA displays can be combined with a variety of protective glass and touch panel options. Both very sensitive capacitive and resistive touch surfaces are available, which can even be operated with gloves — a function which is particularly popular in heavy-use, medical or cold environments. Drops of water on the surface do not affect these touch panels: they only respond to actual human touch. The touch surfaces can be designed to be so hard wearing that they can withstand impacts of up to 0.5 joules according to IK04 without causing damage. Due to their specialist anti-fingerprint coating, no unhygienic fingerprints are left on the displays. This is a particular advantage in public and safety-relevant areas of use.

During the project planning, customers are able to draw on a wide range of example applications and initialisations. With the free downloadable simulator tool startTFT.zip, small displays up to 3.5” can be tested in advance, making it quick and easy to find the correct display. Whether it’s front glass with individual dimensions, unconventional display shapes with or without cut-outs, windows for photo sensors, or LEDs, buttons or special interfaces — with their decades of experience, the panel experts at DISPLAY VISIONS support their customers with the implementation of specific requirements during both the development and the subsequent production.

Visit DISPLAY VISIONS at the electronica (Hall B6, Booth 300) in Munich, Germany.
