Autonomous control display for a low price

Based on the uniTFT070 graphic display, DISPLAY VISIONS has developed an inexpensive control unit which is ready for immediate use without any additional components. With the powerful graphic, logic, and arithmetic features of the integrated I/O and graphic controller, the touch panel offers a quick start to the world of smart control screens. With the free-of-charge uniTFTDesigner Windows tool, modern operating concepts can be created quickly and easily – which is ideal for modern-day communications, e.g., in mobile homes, on fitness equipment, or on industrial testing and measurement equipment.

Four analogue inputs, 16 digital I/O, and seven serial interfaces (USB, 2 RS232, 2 SPI, 2 I2C) are available for interaction with sensors and other devices. Special fonts, images, and sounds as well as time-based log files are stored and retrieved in the integrated FLASH.

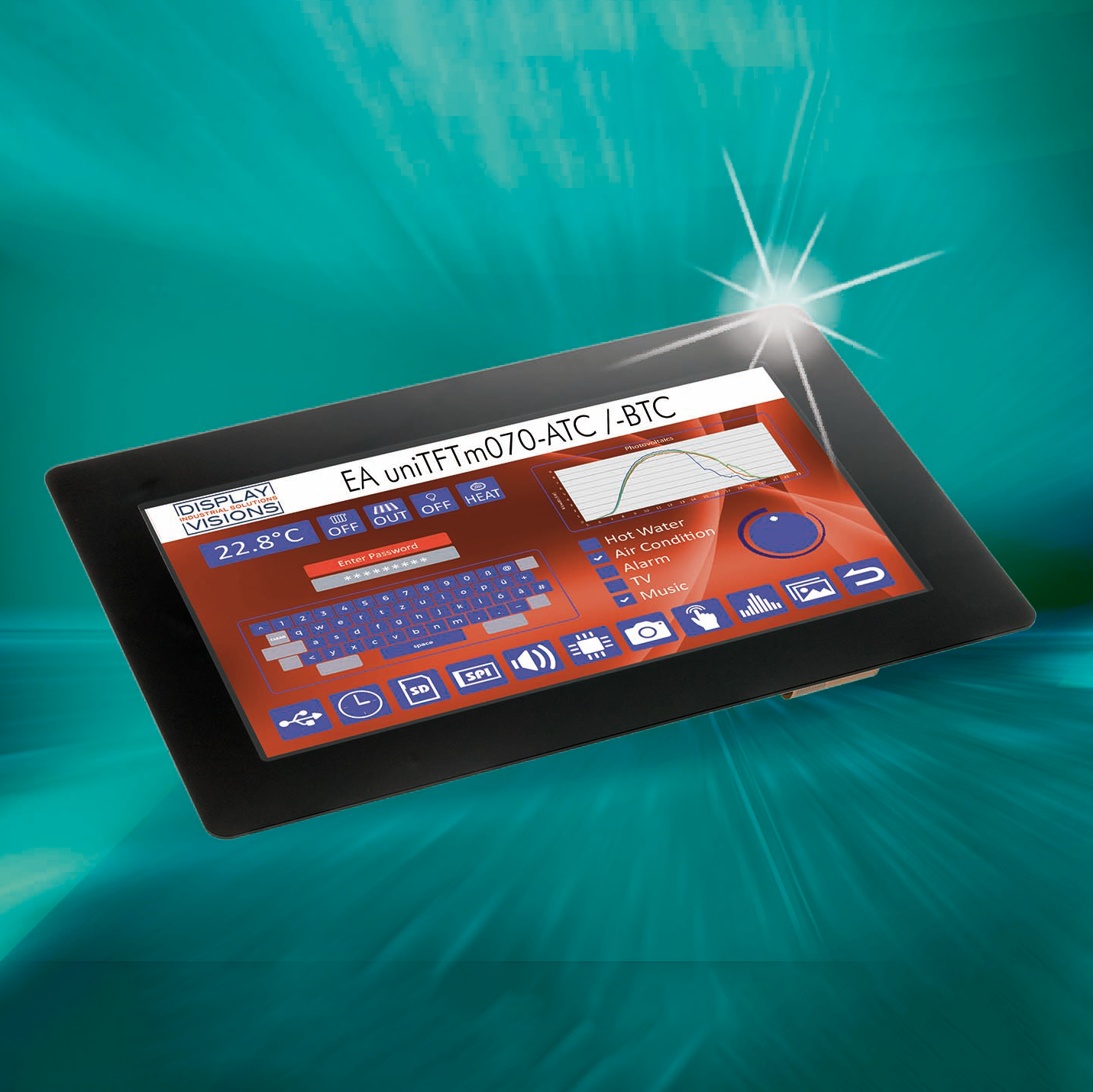

The 7” colour display comes with a resolution of 1,024 x 600 pixels. With the IPS technology, it displays a true-colour and sharp picture from every angle. The kind of colour shifting that can occur on conventional LCD screens simply doesn’t happen. The backlight, with up to 1,000cd/m², ensures a high-contrast display, also in bright sunlight. The elegant, crystal-clear front of the uniTFTm070 allows for sensitive user entries as well as zooming, swiping, and pushing as required.

Visit DISPLAY VISIONS at embedded world 2025 (Hall 1, Booth 381) in Nuremberg, Germany.
