Rotary Encoder AGE60 – braves all environmental conditions

With its AGE60, EBE sensors + motion offers an exceptionally resistant and yet cost-efficient alternative.

The AGE60 is a redundant angular position encoder with touchless signal detection via two independent HALL sensors. The two HALL sensors are monitored by a micro-controller for the plausibility of the detected signal. If the detected absolute angular position is plausible, it its transmitted as a protocol to the bus via two independent CAN bus nodes.

By means of this principle it is possible to detect angles or rotations. As adapted by EBE, the useful signal can also be provided via other signal output protocols such as SPI.

High precision with compact design

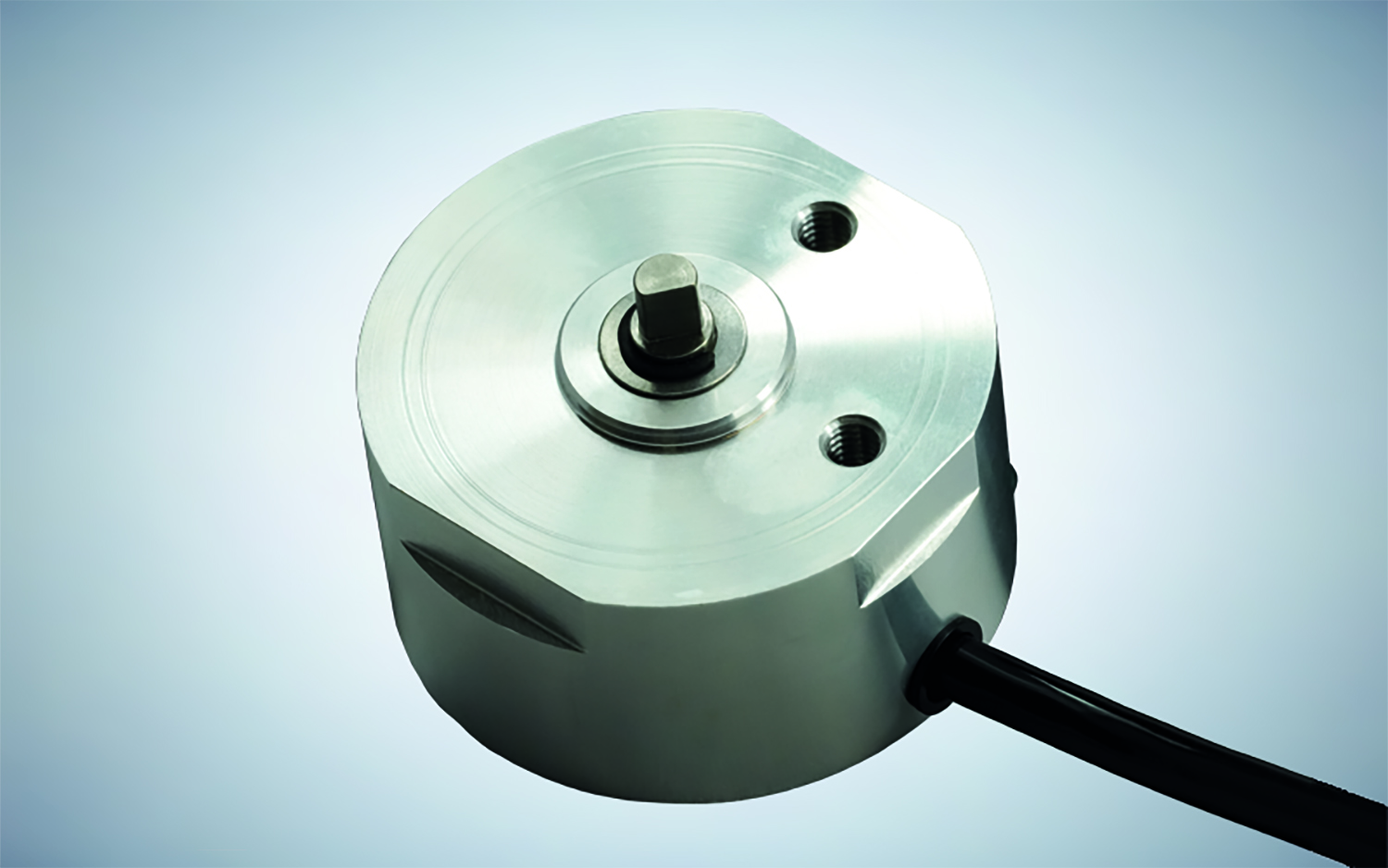

In terms of mechanics, the rotary encoder convinces by its compact, adaptable aluminium housing with a diameter of appr. 59mm and a height of appr. 30mm. The sealing in protection class IP67 and the precision ball bearing mounted axis distinguish the robust encoder.

This axis with its special bearing and the electronics used help the angular encoder to achieve a resolution of 10 bits with a rotational angle of 90° and of 14 bits with 360°. The useful angle can be adapted to the respective customer project from 1° to 359°.

Resistant to manifold environmental conditions

As the signal detection via the HALL sensors is touchless, the AGE60 is almost indestructible. The vibration resistance of the IEC was tested and approved acc. 68-2-6, the shock resistance acc. IEC 28-2-27.

Furthermore, the AGE60 is approved for operating temperatures of -20° C to +85° C. In spite of these features, the AGE60 is comparatively cost-efficient and offers a good alternative for tight budgets. With these special properties, the encoder is highly suitable for use in particularly rough environments such as agricultural or construction machines and already in serial application there.
