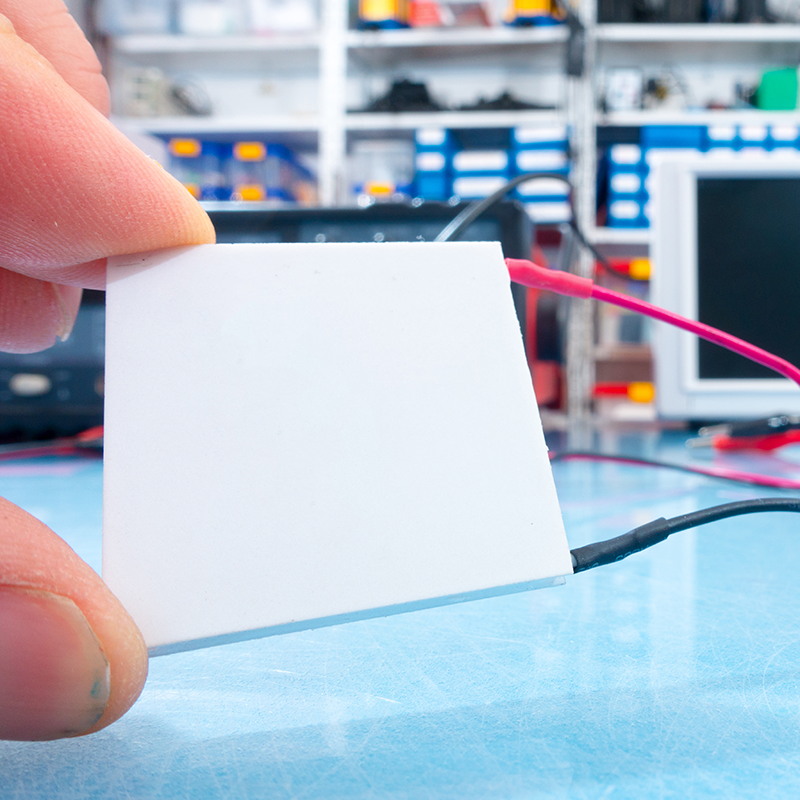

What is the Peltier Module?

Named after French physicist Jean Charles Athanase Peltier, who discovered the phenomenon in 1834, the module is widely used in applications the need precise temperature control or small-scale cooling.

How the Peltier Module works

The Peltier module has numerous thermocouples, which use the Seebeck effect to generate a voltage corresponding to the measured temperature, all sandwiched between two ceramic plates. These thermocouples are made from different semiconductor materials, typically p-type and n-type, which are arranged in a series circuit. When an electric current passes through the thermocouples, it induces a temperature difference: one side of the module becomes cold while the other becomes hot. This process is a direct result of the Peltier effect, where heat is absorbed or released at the junctions of different materials depending on the direction of the current.

By reversing the current, the cold and hot sides can switch, making the Peltier module versatile for both heating and cooling applications. It is important to note that the module itself does not generate electricity; instead, it consumes electrical power to facilitate heat transfer.

Does the Peltier Module generate electricity?

While the Peltier module primarily functions as a heat pump, a related phenomenon called the Seebeck effect can be harnessed for electricity generation. The Seebeck effect occurs when a temperature gradient across the module produces a voltage. However, in this mode, the device is referred to as a thermoelectric generator (TEG) rather than a Peltier module.

The electricity generated depends on the temperature difference between the module’s two sides. For instance, a TEG operating with a temperature difference of 100°C can produce a voltage of around 4–5V, depending on the specific materials and design. However, the power output is relatively low – typically in the range of milliwatts to a few watts, making it unsuitable for high-power applications but sufficient for powering small sensors or electronics in remote locations.

Applications of Peltier Modules

The Peltier module is valued for its compact size, reliability, and lack of moving parts, which makes it low-maintenance and long-lasting. Some key applications are:

Cooling electronics

One of the most common uses of Peltier modules is in cooling electronic components. High-performance computers, lasers, and other heat-sensitive equipment often incorporate TECs to manage heat and maintain stable operating temperatures.

Portable refrigeration

Peltier modules are widely used in portable coolers, mini-fridges, and wine coolers. They are ideal for applications where size and noise are critical, as they operate silently and without compressors.

Medical and laboratory equipment

Medical devices, such as DNA amplification machines and portable diagnostic equipment, often require precise temperature control. Peltier modules provide the accuracy needed in these sensitive applications.

Thermal imaging and sensors

In thermal imaging cameras and some sensors, maintaining a specific temperature is essential for optimal performance. Peltier modules enable these devices to function consistently and accurately.

Wearable technology

In wearable devices aimed at body temperature regulation or medical monitoring, Peltier modules are sometimes used to manage heat exchange between the body and the device.

Energy harvesting

When used as thermoelectric generators, Peltier modules can convert waste heat into electricity, finding applications in industrial processes, automotive systems, and renewable energy setups.

Efficiency and future potential

The efficiency of a Peltier module is relatively low compared to traditional cooling systems, as much of the electrical energy input is lost as heat. Its coefficient of performance (COP) is generally less than one, meaning it consumes more energy than the amount of heat it transfers. For this reason, it is most effective in low-power applications where its compactness and precision outweigh its inefficiency.

However, as advancements in thermoelectric materials continue, the efficiency of both Peltier modules and thermoelectric generators is expected to improve, and with research into nanostructured materials and innovative designs, it could make them more viable for a broader range of applications , including energy harvesting and sustainable cooling systems.
