Transtector expands outdoor AC load centres for Small-Cell sites with new configurable enclosures

These versatile load centres are suited for cellular and telecom networks, broadband, small cells, picocells, micro cells, 5G nodes, DAS systems, and right-of-way expansions. Their power capacity can handle all small-cell configurations, including multi-tenant co-location sites.

Key features include a 100-amp two-pole main breaker supporting 120/240 VAC split-phase services, with an option to add a high-current branch breaker up to 60-amp two-pole for sub-panel or right-of-way expansion. The load centres are UL67 listed and service entrance rated (SUSE), eliminating the need for a separate upstream disconnect box, saving both space and cost.

Installers can easily configure circuit breakers to accommodate a wide range of equipment, using up to 14 one-pole or seven two-pole load breakers. Five base models are available, offering various configurations of 10-, 15-, 20-, 25-, or 60-amp breakers.

All models incorporate Transtector’s high-capacity metal oxide varistor (MOV) surge protection technology, safeguarding against lightning strikes and power transients. With a NEMA 3R rating, the load centres are weather-resistant, featuring gaskets and seals that protect against water ingress during rain, sleet, or snow. Their 9-inch-wide profile allows for discrete mounting on poles or within pole structures, and the galvanized, powder-coated steel enclosures include a padlock hasp for added security.

“Our enhanced outdoor AC load centres offer an economical solution for powering and protecting small-cell sites,” said Dan Rebeck, Product Line Manager at Transtector. “They are also designed to be easily reconfigured in the field, accommodating the evolving needs of your installations.”

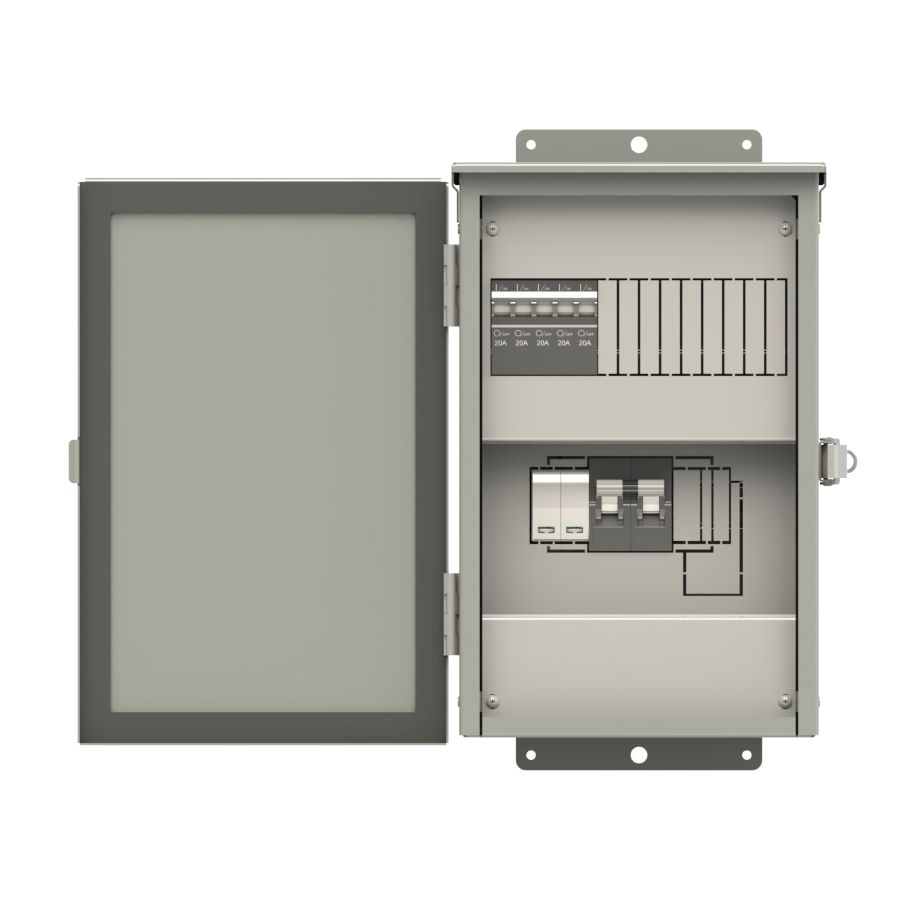

Transtector’s expanded line of SC-2MMA9 series outdoor AC load centres is now available and ready for immediate shipment. Contact Transtector to customize your ideal configuration today!
