Cost-effective mobile EW/SIGINT solution with unmatched channel

HUGIN 304DF is Novator Solutions first tactical turnkey EW/SIGINT solution with monitoring, recording, and direction-finding capabilities. It leverages channeliser technology providing 64 channels enabling simultaneous monitoring and recording of analogue clear voice Push to Talk (PTT) communication using FM, AM. or SSB modulation.

Increased channel capacity and reduced channel cost

The goal with HUGIN 304DF was to provide a tactical system that can handle more interceptions at a competitive price. With 4 individual 80MHz wide tuners and 60 channels for PTT traffic plus 4 channels for IQ recording HUGIN 304DF provides flexibility to intercept all communication simultaneously. Together with the direction finder the operator gets 360 degree situational awareness.

Thanks to the innovative channeliser technology Novator are able to reduce the cost per channel while providing a flexible receiver and intuitive command and control software.

“The close collaboration with our key suppliers and partners allowed us to deliver the first systems within 6 months from project kick-off," says Henrik Ulfhielm, CEO of Novator Solutions.

This initial HUGIN 304DF release supports 20MHz to 520MHz for Push to Talk communication and direction finding. One of the four tuners can optionally be used to monitor the spectrum up to 6GHz.

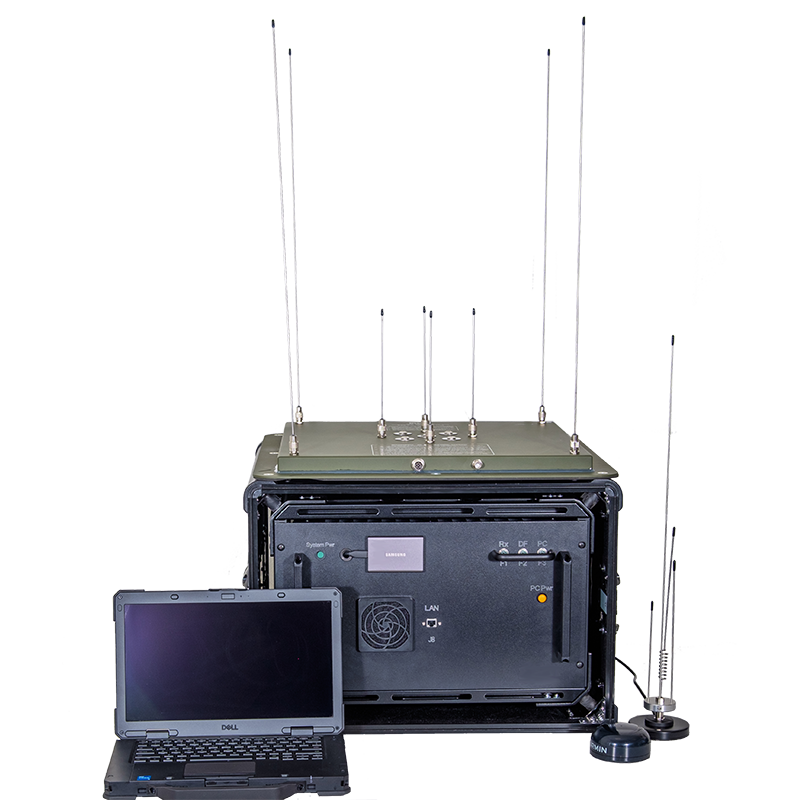

HUGIN 304DF mobile EW/SIGINT system comes in an environmental box and can be deployed in any moving vehicle with a ground plane for the direction finder antenna and 12V DC power.
