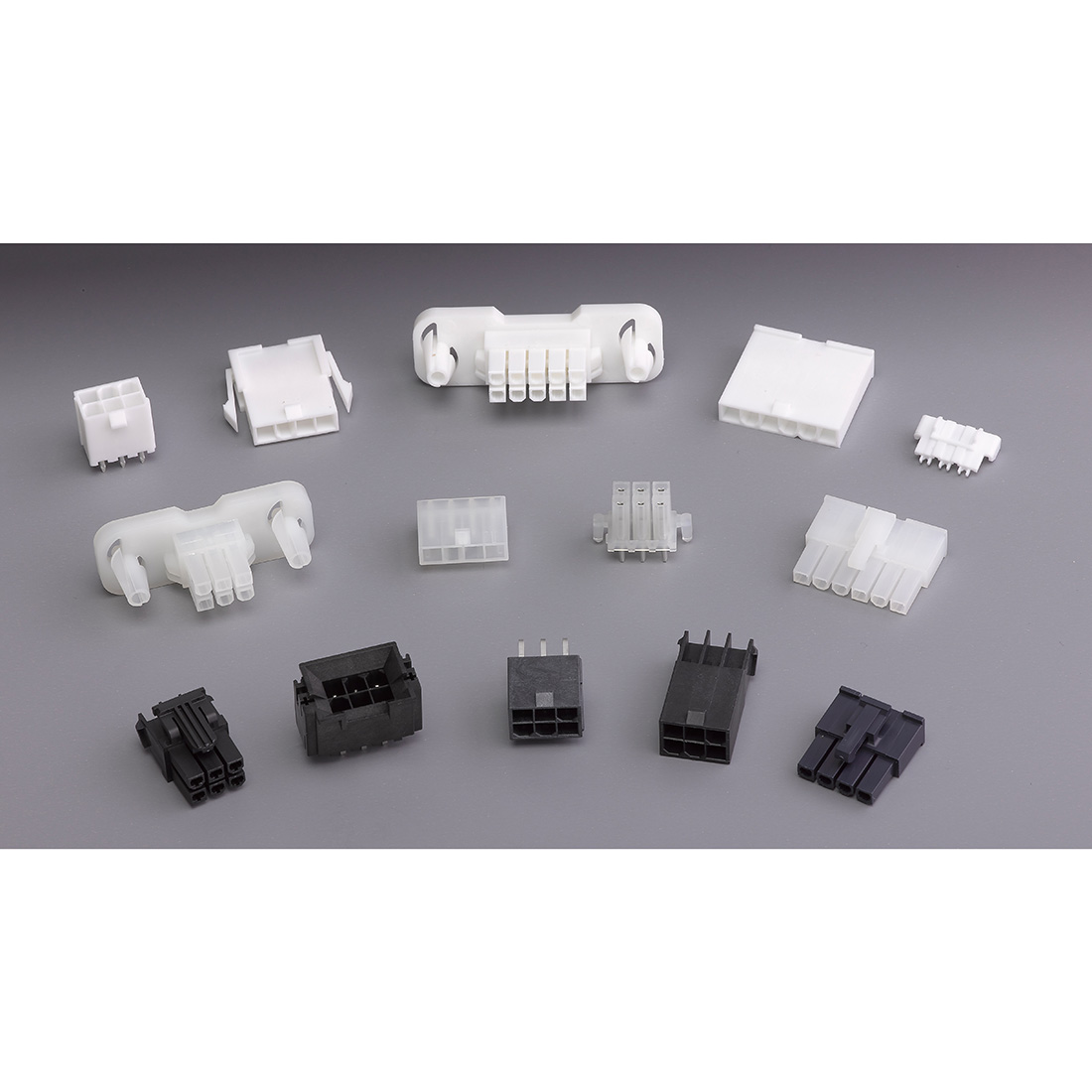

The versatile Mini-Fit family from Molex at Rutronik

The connectors are designed for an operating temperature of -40°C to +125°C and are available in board-to-board, wire-to-board and wire-to-wire configurations. They deliver up to 13.0 A, while the available options for dummy plugs and terminal position locking create a versatile connector system. All versions are backwards compatible, making them an optimal solution for even the most difficult design problems. They are ideal for a wide range of applications, such as automotive, industrial, telecommunications, networking or medical. They are housed in nylon enclosures and are available in reel, bag or tray packaging.

Mini-Fit works at a nominal power of up to 600 VAC/DC and has a dielectric strength of 2,200 VAC and an insulation resistance of 10 mΩ. Thanks to the terminal position lock with a secondary locking option, they reduce assembly errors and ensure that the terminals are seated correctly. The connectors are RoHS compliant and meet the requirements of the flammability standard UL 94V-0.

Specifications:

Mini-Fit Sigma

• Stability of the housing
• Sealing cap holder for excellent support for the rear rubber cap
• 30% lower mating force for improved ergonomics
• Coding and polarisation for precise mating into standard Mini-Fit 4.2 power

Mini-Fit Jr

• Single and double row available
• Continuously stackable
• Mid-range power connector with more power per linear millimetre squared than comparable components
• Four independent contact points provide redundant secondary power paths for long-term performance and reliability
• Pinless termination for greater terminal security

 Mini-Fit Versa Colour

• Five colour options
• Visual colour pairing ensures correct connection
• Option for panel mounting and vertical connections while maintaining current carrying capacity

Mini-Fit Blind Mate Interface (BMI)

• Interface for blind bonding: Allows a 2.54 mm offset in the X and Y axes for all configurations

Mini-Fit TPA2

• Terminal position assurance with secondary locking option: Reduces assembly errors and ensures correct seating of the terminals

Mini-Fit PLUS HCS

• Crimp contacts made from proprietary high-current alloy
• Sockets and plugs for Mini-Fit and Mini-Fit Plus crimp contacts
• Patented dimple design of the contacts for a stronger hold

Application examples:

• Automotive industry
• Telecommunications
• Medical technology
• Industrial automation
• Consumer appliances
