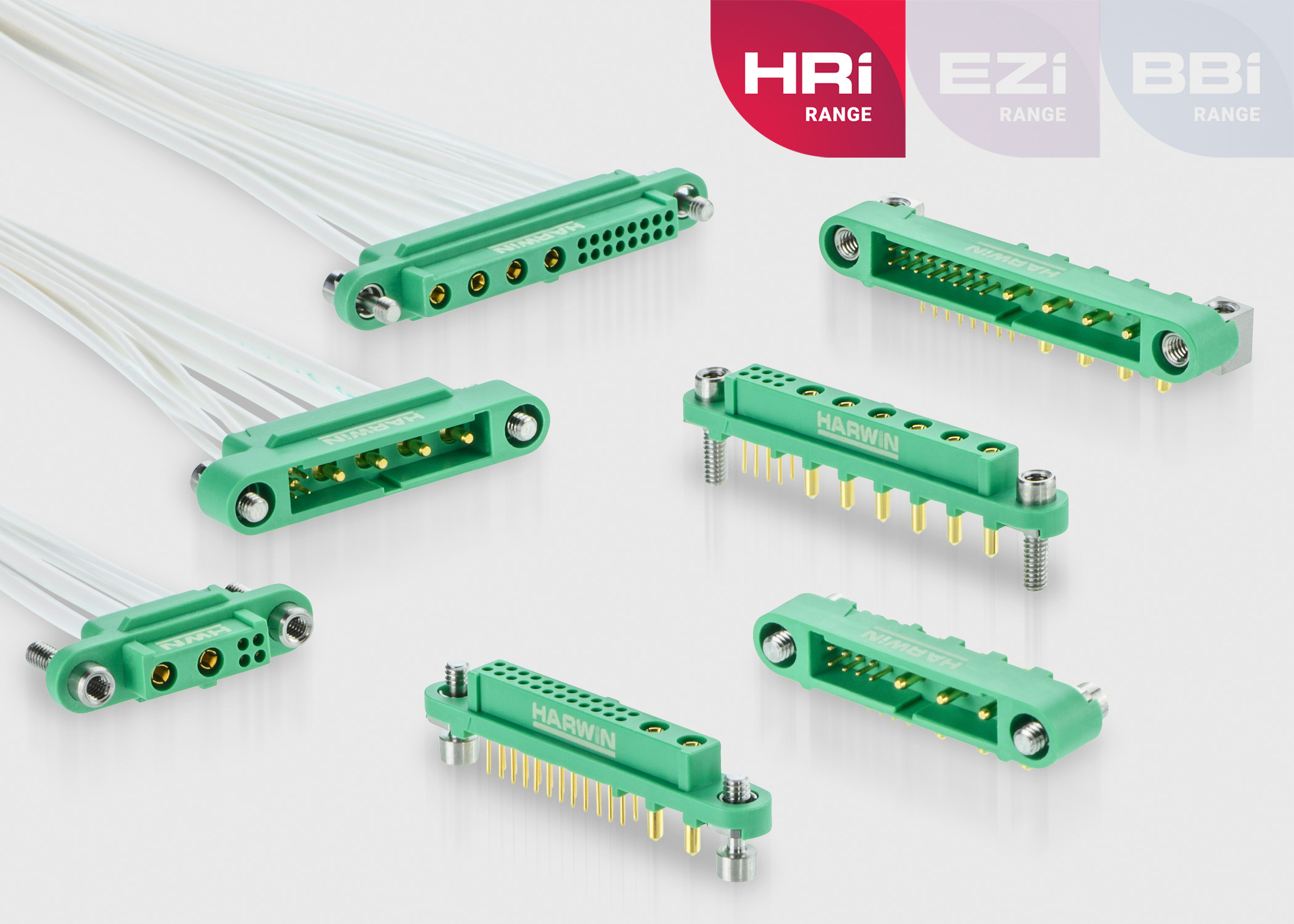

Small and light mixed layout Gecko-MT connectors available

Gecko-MT connectors are small and light mixed-layout connectors available for high-performance applications where size, weight, and power matter most, e.g., aerospace, defence, motorsports, and others.

The connectors are offered with two or four power contacts and eight signal contacts, with 10A and 2A per contact for each type, and a 1.25mm signal pin pitch to minimise size and weight.

Able to operate at extreme temperatures (operating temperature range is 65°C to +150°C), Gecko-MT devices offer 1,000 mating cycles of durability, a 4-finger patented contact design that maintains electrical contact through high vibration (up to 20G for 6h) and shock (up to 100G for 6ms) and stainless steel locking screws to secure the connection.

The components provide up to 50 contacts per connector and are available in a wide array of configurations. The connectors also meet NASA and ESA outgassing requirements for use in space. Cable housings are compatible with Gecko backshells, and PCB connectors are offered in vertical or right-angle versions. Lightweight metal hoods are available for additional cable protection and shielding from RFI.
