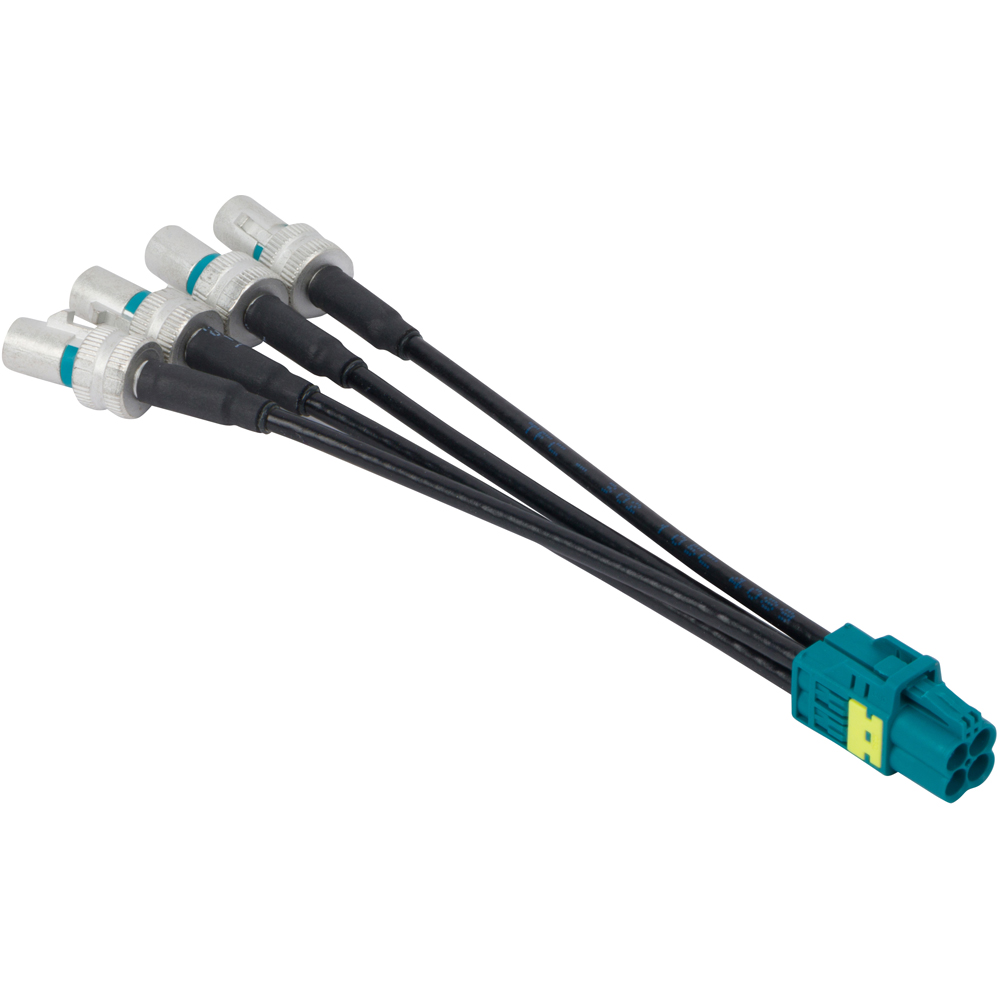

Meet next gen design requirements with mini-FAKRA cable assemblies

Both versions provide reliable RF performance up to 6GHz with ruggedised construction ideal for autonomous applications such as new automotive designs and industrial automation technologies.

The mini-FAKRA connectors used in these designs feature terminal positioning assurance (TPA) which assures that the contacts are always seated properly. This dramatically reduces the risk of damage to the contact during mating. This is further aided by the unique closed entry cable interface that limits the size of mating parts. In addition, low engagement forces provide easy and secure mating and unmating. The robust construction of these connectors which feature high temp engineered plastic housings creates an additional level of protection in designs where external factors are a concern.

These cable assemblies are designed on flexible, single shielded cable types that meet 50ohm requirements and are often used for Ethernet, Wi-Fi, or other data transfer protocols. These cable types allow for the transmission of high-frequency electrical signals with minimal interference which offers additional versatility.
