Jackscrew fittings enhance cable assemblies

The products are available from distributor Anglia Components.

Gecko is a 1.25mm pitch High-Reliability connector range from Harwin, the Gecko (G125 series) connectors provide a low profile, dual row interconnect solution, ideally suited for stacking and cable mating in areas where PCB real estate is at a premium.

Improving on the 2mm pitch Datamate series, and harnessing the modern technology of micro-machining, the Gecko range brings high-reliability specifications to a smaller size. Gecko provides a low-profile, dual-row solution for all variations of cable-to-board, board-to-board and cable-to-cable interconnect requirements.

With up to 50 contacts per connector, but still capable of 2A per contact, Gecko gives both significant weight and space-saving advantages over Micro-D connections.

The Gecko range offers either latching connectors, for maximum weight and space-saving, or Screw-Lok connectors for maximum mating strain relief.

The robust build quality and high reliability of the Gecko connectors make them ideal for use in demanding medical equipment applications including ventilators, analysers, patient monitoring systems, medical imaging, hospital & surgical equipment, drug delivery systems, pharmaceutical test instruments and many other essential medical electronic devices.

Leveraging Harwin’s considerable expertise, customers now have access to simple and cost-effective interconnect solutions via Harwin’s portfolio of ready-made high-reliability cable assemblies. The award-winning Gecko-SL 1.25mm connector family builds on the options already available with the popular Datamate products.

A wider range of cable assemblies can be supplied, avoiding any upfront investment in equipment and staff training costs to carry out such work in-house.

Available in both single- and double-ended arrangements, the Gecko-SL cable assemblies fully comply with the established IPC-620 cable and wire harnessing industry standard. They can be specified for either cable-to-cable or cable-to-board implementations.

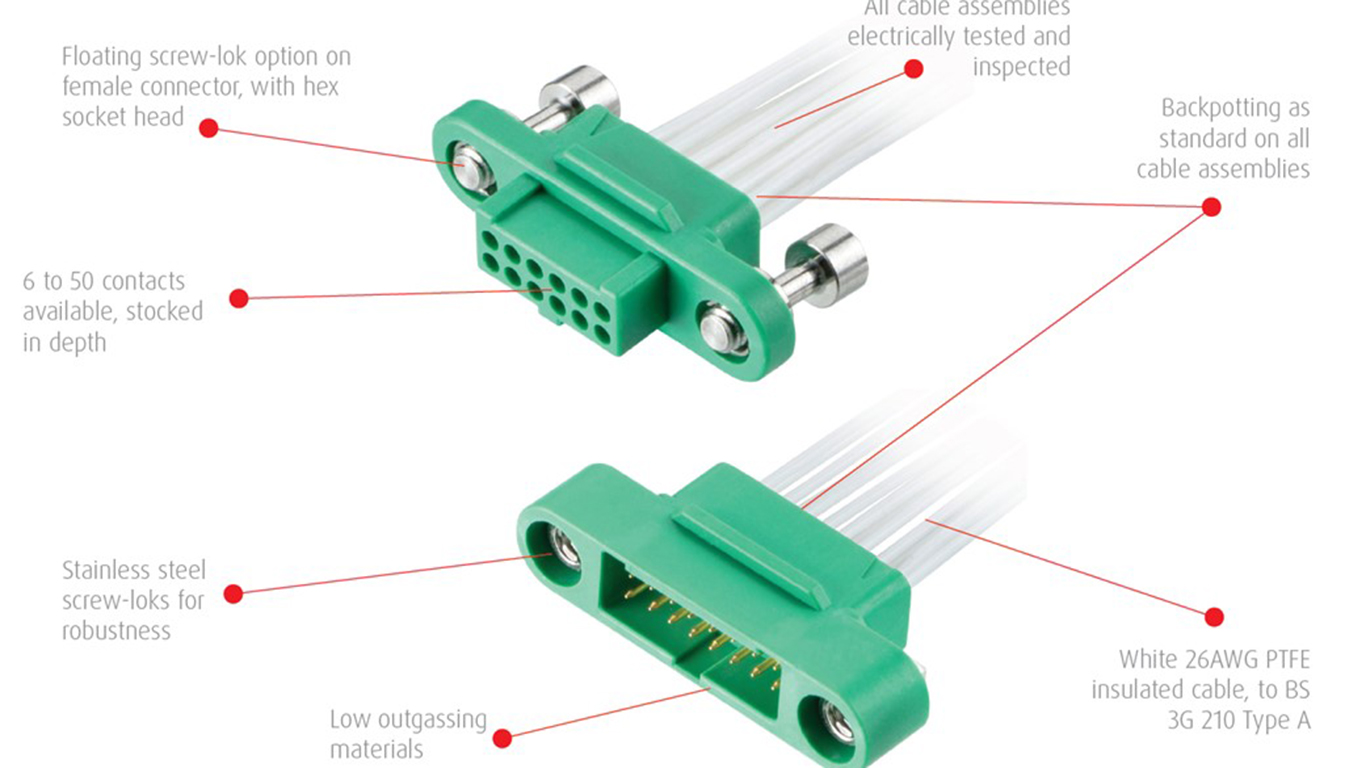

Each cable has a 26AWG wire gauge PTFE construction, and comes in 150/300/450mm (6/12/18 inch) lengths. The assemblies are fully compatible with existing metal backshells, for both added mechanical robustness and strong EMC resilience.

Thanks to the hexagon-slotted screw fixings and mate-before-lock mechanism, these rugged assemblies are straightforward to deploy, especially in space-constrained environments.

They benefit from the inherent resilience that Gecko-SL connectors exhibit to high degrees of shock/vibration and extreme temperatures, as well as their relatively strong current carrying capacity (2A per contact, despite the narrow pitch).

Customers can choose from 6 to 50 pin arrays for their assemblies, reducing lead times and simplifying production processes. The necessary fixing hardware is provided – either directly or as part of the backshell kit. All supplied assemblies are 100% continuity checked. This significantly streamlines the system integration process, saving customers time and effort.
