IDEC connector technology from Live Electronics

By comparison with traditional screw-in connectors, the new devices reduce wiring times by at least 50%, making them ideal for the production of both new and refurbished control panels and machine builds.

Manufactured by major electronics company, IDEC, the new push-in products ensure safe and reliable connections, that withstand shock and vibration, yet are quick and simple to release.

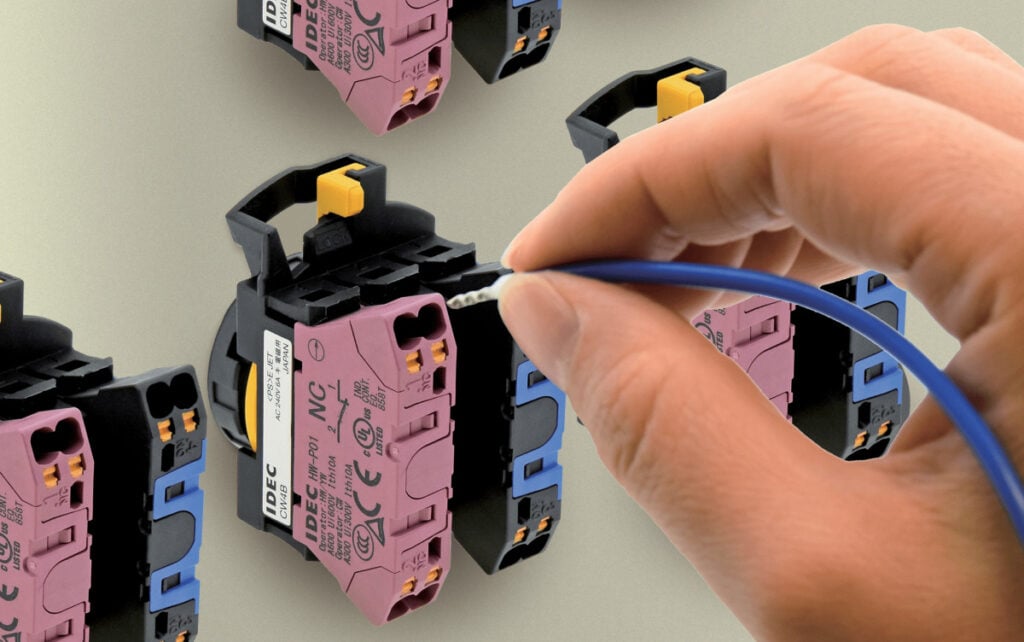

The product range includes Emergency stops (E-Stops), switches, panel indicators and pilot lights. In each case, the push-in connector technology uses an internal locking clamp, which engages as soon as a solid cable-end or ferrule is pushed home. This ensures a secure, tug-resistant connection. Cable release is achieved by using a small screwdriver blade to depress an isolated push-lock, which compresses the spring clamp and frees the cable. The process is quick, simple, and safe, as the connection and release mechanisms are designed to prevent contact with internal conductive parts.

No special tools are required, while the push-in connectors can be assembled by technicians regardless of their skill level. Each product also features simple connectivity test points, which can easily be checked with a standard Multimeter.

The design of the new push-in connectors means that cables are positioned facing away from the panel in which components are being fitted. This makes it far easier to produce simpler, neater, and easier to identify wiring looms.

Comparison time studies carried out by IDEC, between the new push-in connectors and traditional screw-in devices, show that the new products can be installed up to twice as fast. Time is saved by the simple push-in action and by eliminating the need for final screw tightening checks.

Live Electronics is offering free samples to customers that would like to try out the technology for themselves.
