Hirose signal connectors in the TME catalogue

Signal connectors seem to be unremarkable, but they are actually an essential part of modern electronics. Nowadays, when data transfer and communication technologies are developing faster and faster, connectors play a key role in the smooth and reliable transfer of information between devices. This applies to connections in simple and common electronic devices as well as in more complex industrial and medical systems.

Japanese company Hirose Electric, established in 1937, is one of the leading manufacturers of signal connectors whose products are available in the TME catalogue.

• Signal connectors with 1 mm pitch
• Signal connectors with 1.25 mm pitch
• Signal connectors with 2 mm pitch
• Signal connectors with 2.5 mm pitch
• Signal connectors with 2.54 mm pitch
• Signal connectors with 3.96 mm pitch

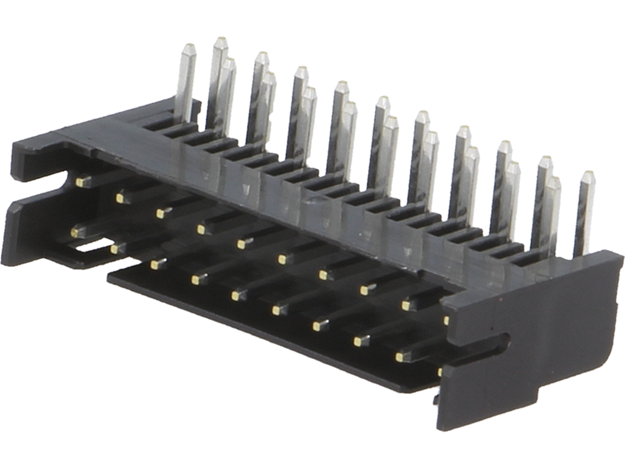

DF20A-10DS-1C

Signal connectors with 1 mm pitch

Signal connectors with 1 mm pitch are perfect for all those applications in which space is important. Such elements are used for cable-to-board connections, and they are available in different sizes, ranging from 8 to 50 pins in single- or double-row systems. In Hirose Electric’s designations, they are marked as DF19, DF20 and DF50.

Signal connectors with 1.25 mm pitch

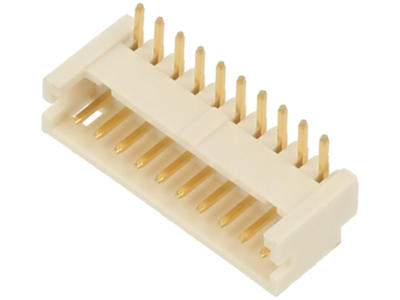

DF13-10P-1.25DS-55

Signal connectors from the DF13 and DF14 series are available with a slightly bigger pitch – 1.25 mm. These components, too, are used for cable-to-board connections. The Hirose signal connectors from this series are available in single- or double-row versions and the number of pins is between 2 and 40. Sockets from the DF13 and DF14 series are designed for THT and SMT mounting.

Signal connectors with 2 mm pitch

The SignalBee signal connectors from the DF3, DF11, DF51K and DF59 series with 2 mm pitch are available in sizes ranging from 2 to 40 pins. The lead system can be single- or double-row, depending on the model. The components can be used for cable-to-board, board-to-board, or cable-to-cable connections. Note that the products are available in several configurations: vertical, horizontal, and angled.

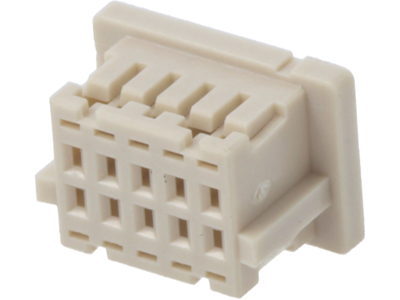

DF11-20DP-2DS-24

Signal connectors with 2.5 mm pitch

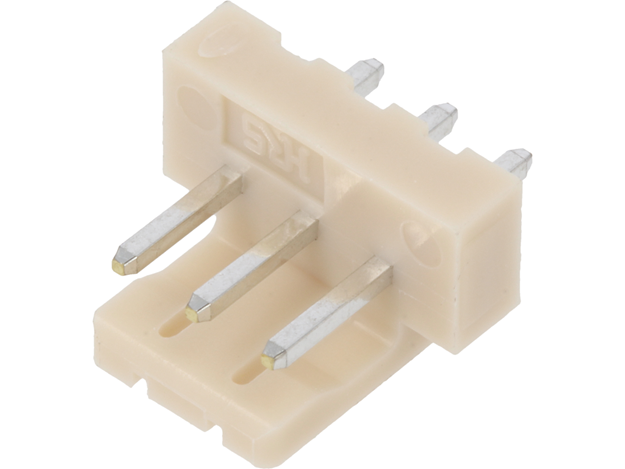

DF1-3P-2.5DSA-05

Signal connectors with 2.5 mm pitch are dedicated for board-to-cable and cable-to-cable connections. They are available in a straight or angled version with single- or double-row system, where the number of pins depends on the model and can be between 2 and 40. In Hirose’s designations, such elements are marked as DF1 and DF1B.

Signal connectors with 2.54 mm pitch

Signal connectors with 2.54 mm pitch are common in the electronics industry. Hirose Electric marks such products as HIF3 and HIF3C. These are double-row signal connectors with 10, 20, 26 or 40 pins. Such components are designed for cable-to-board connections. In the TME catalogue, female versions of such signal connectors are available, too.

HIF3BA-40D-2.54C

Signal connectors with 3.96 mm pitch

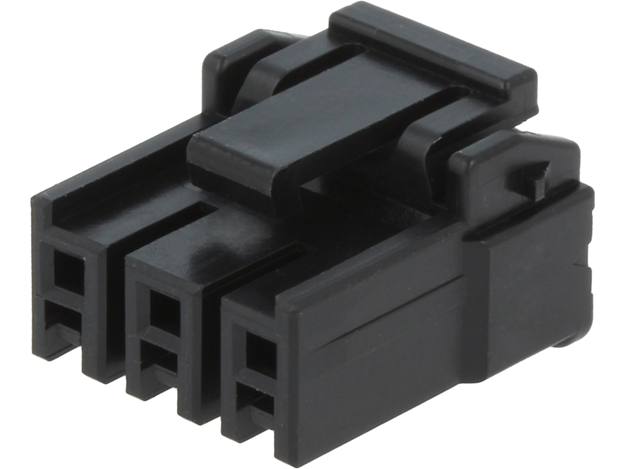

DF63-3S-3.96C

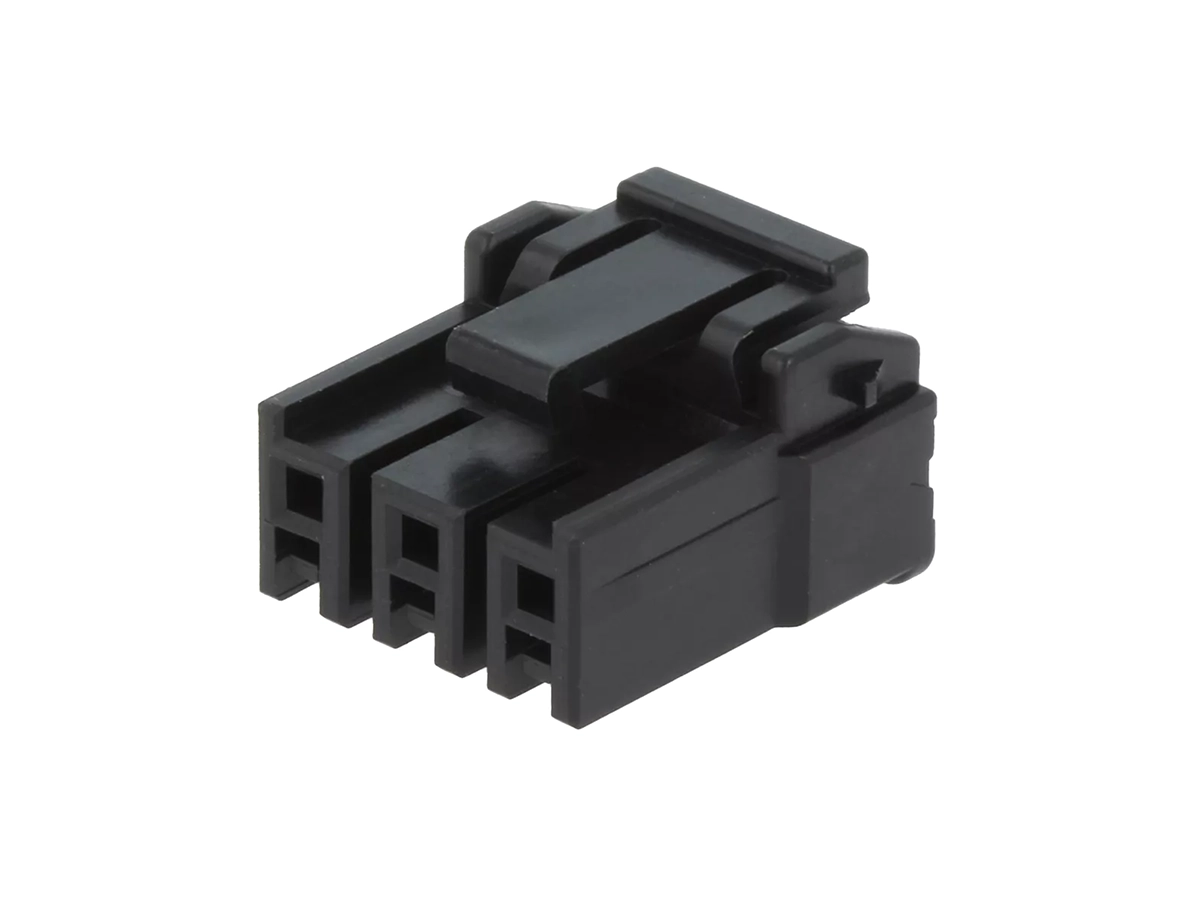

Male cable-mount connector equipped with 3 pins

In the EnerBee series, there are DF63 and DF63W waterproof connectors with 3.96 mm pitch available. They are used for cable-to-board and cable-to-cable connections and may feature 2, 3 or 4 pins.
