High-temp FPC/FFC connector from Hirose

Featuring a centre lock design, the TF70 Series allows for easy, one-handed insertion and removal, ensuring durable performance with a locking strength of more than 40N. A guide key prevents mis-insertion, and a clear tactile click indicates complete and proper mating.

Assembly involves inserting the FPF/FFC into the plug housing and securing with the retainer, enhancing efficiency and reducing complexity. This design eliminates traditional terminals, thereby decreasing weight and conserving space by using FPC/FFC instead of discrete wires. The design incorporates safe design features  to prevent electric shock, mis-insertion, and incorrect mounting, addressing key safety concerns in automotive electronics

The TF70 Series has a narrow pitch of 0.5 mm and a compact design that significantly reduces the size and weight of end products. An operating temperature of -40°C to +105°C makes the TF70 Series ideal for automotive and other harsh environment applications.

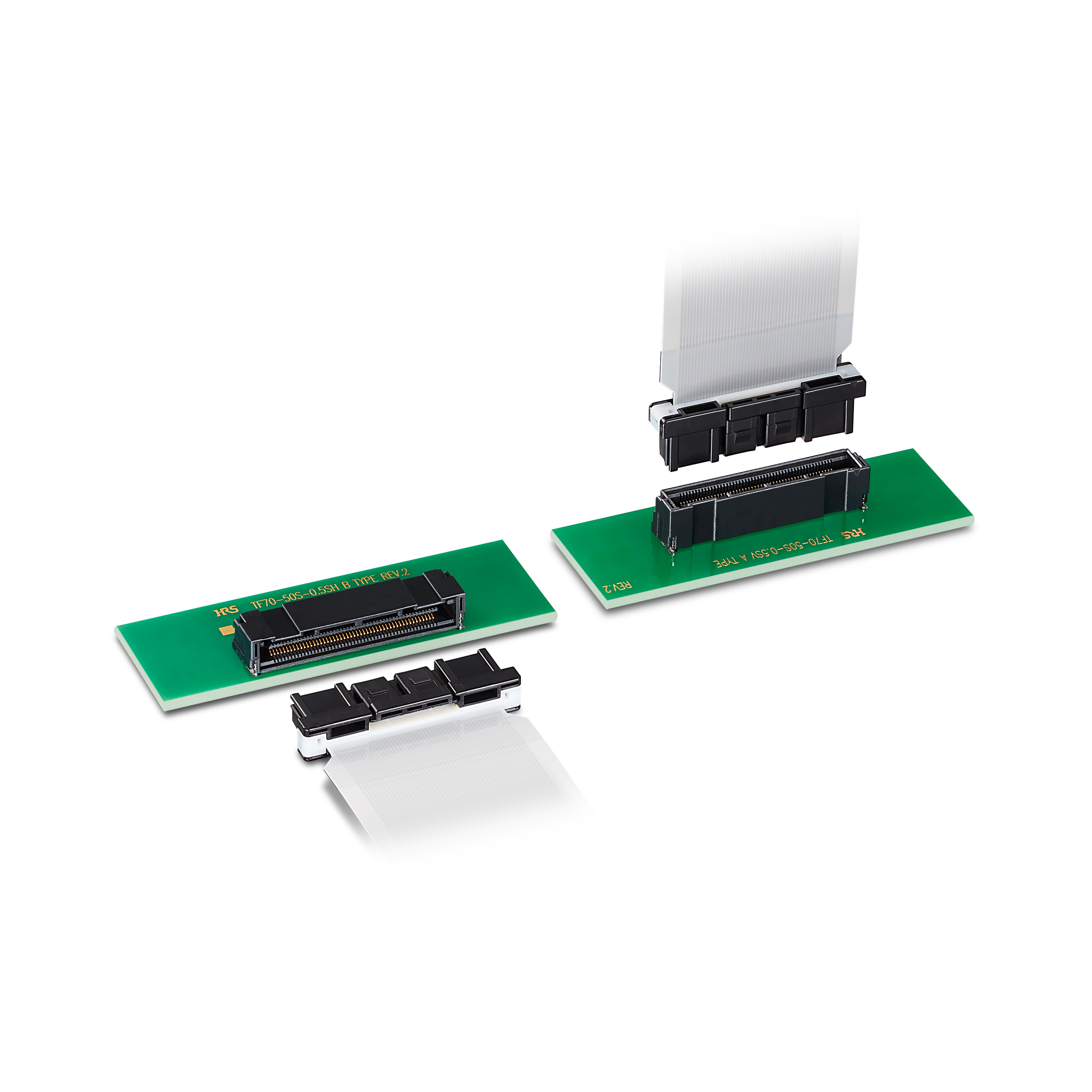

The TF70 Series is available in right angle and straight angle connection methods for flexible board design.

“The TF70 Series FPC/FFC-to-board connector offers space-savings that enables a reduction in size of electronic devices without sacrificing performance and durability,” said Pete Lais, Assistant Vice President of Product Management for Hirose Electric Americas. “Its compact size, reliability, and safety features make it an ideal choice for a wide range of automotive applications, from infotainment systems to advanced driver assistance technologies.”

The connector is available in a 50-position version.
