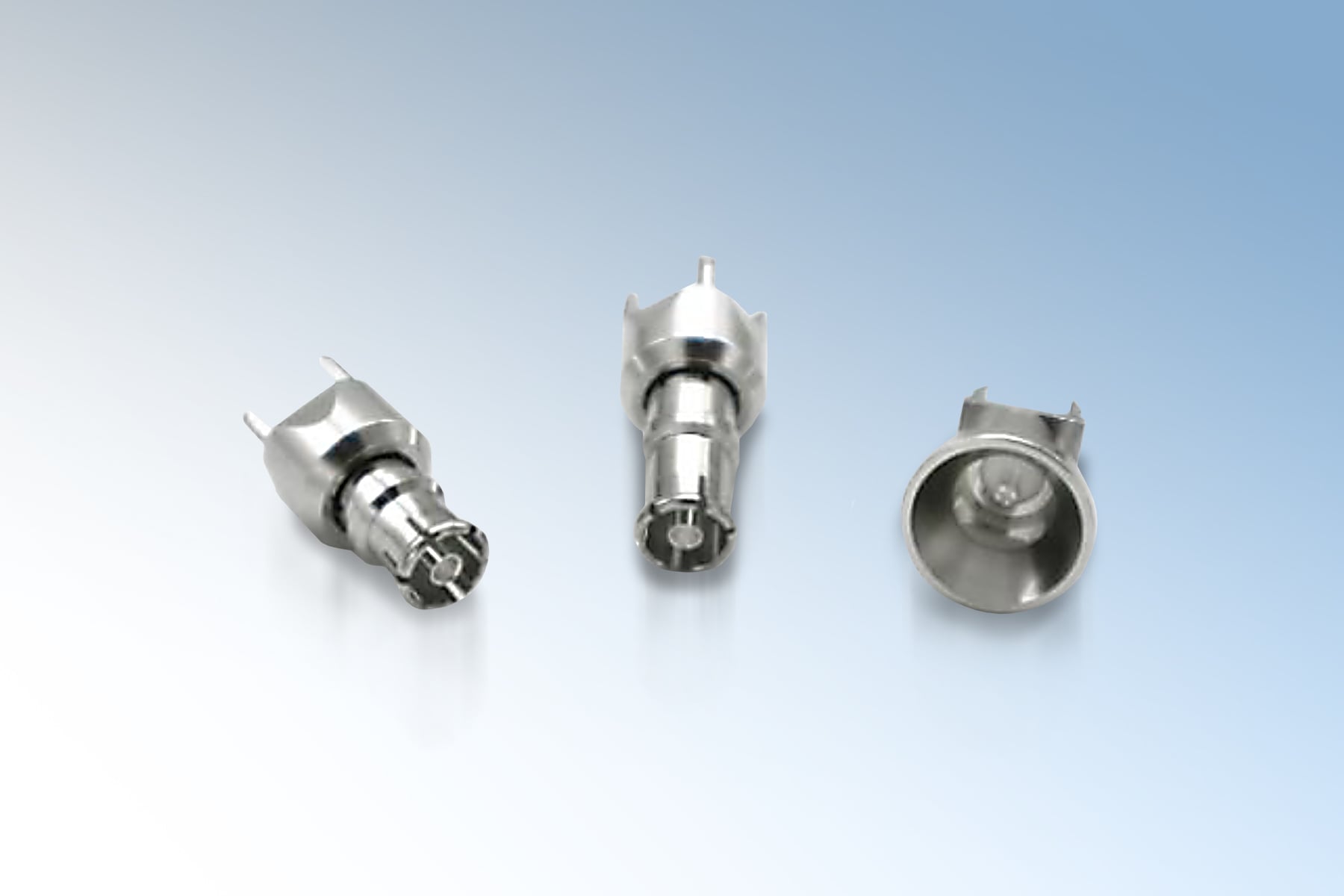

GBB connectors from Gigalane at Powell Electronics

Designed to be cost-effective and reliable, the devices benefit from a weight reduction of 25% thanks to a new material and manufacturing method and offer excellent mechanical and electric performance. The main target applications are board-to-board and board-to-module RF interconnections.

Technical details of 2nd generation GBB connectors include a frequency from DC up to 8.5GHz, impedance of 50Ω, insulation resistance of 5000 MΩ and a dielectric withstand voltage of 1,000 Vrms. VSWR is 1.20:1 at 3.0GHz, 1.25:1 at 6.0 GHz and 1.30:1 at 8.5GHz.
