Amphenol SurLok Plus connectors available from Rutronik
High reliability in harsh environments: Amphenol offers the SurLok Plus series, a highly reliable alternative to conventional compression lugs. With protection class IP 67, it is an environmentally sealed version of the original SurLok series. This makes it ideal for use in harsh, demanding environments.
SurLok Plus is available in smaller sizes (3.6 mm, 5.7 mm, and 8.0 mm) than its predecessor SurLok, and features a quick-lock and press-to-release design. Since Amphenol uses industry standards for the crimp, screw, and busbar connection options, no additional investment in special torque tools is required. This combination allows for straightforward on-site installation.

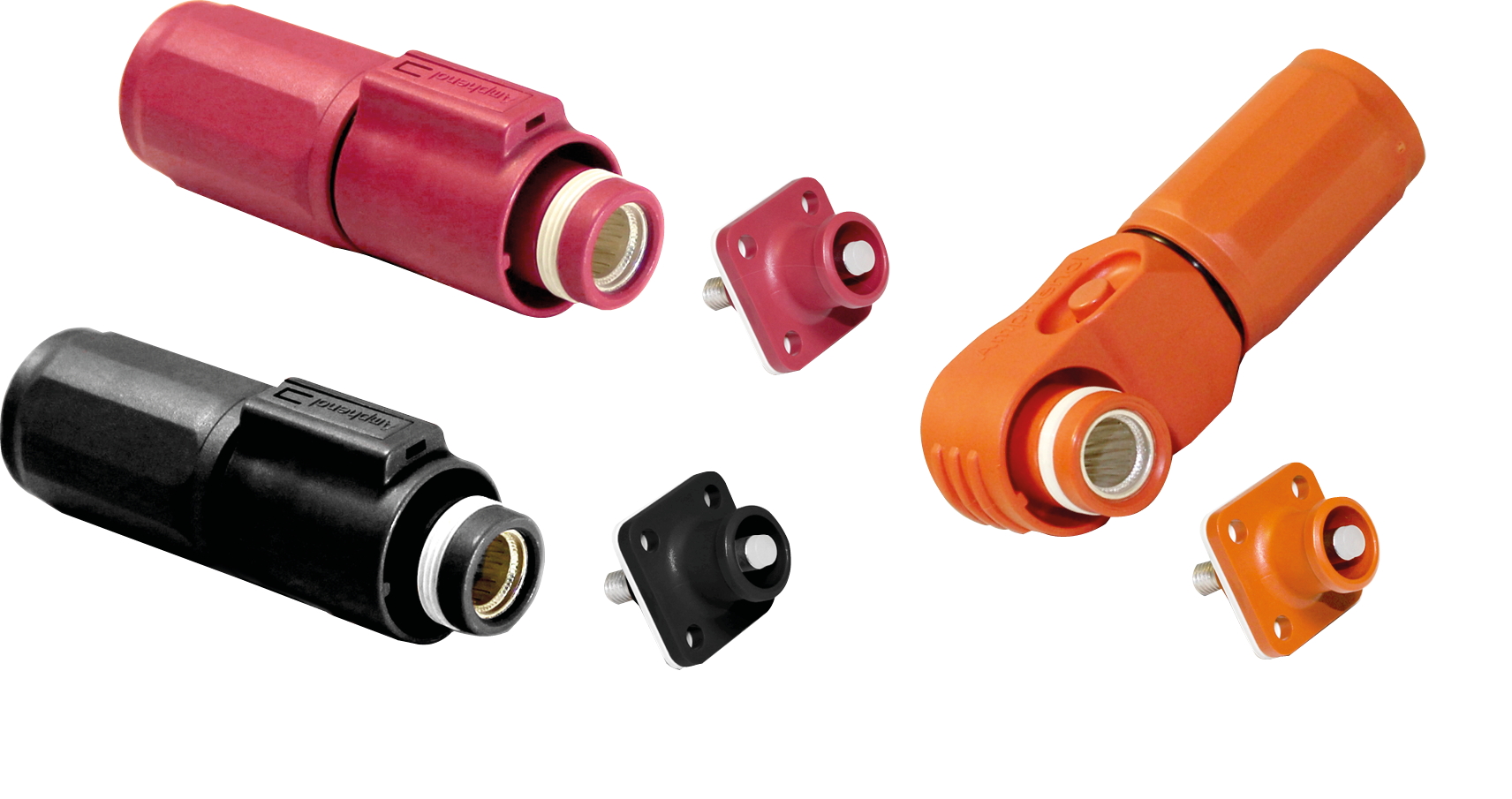

Three different colors (red, black, orange) and different mechanical coding options allow multiple SurLok Plus connectors to be used side by side without the risk of reverse polarity.
Key features of the 3.6 mm variant at a glance:
- Rated current: 50 A to 70 A
- Gender: male, female/rectangular
- Feature: flat, busbar (20°) or 10 mm2 (70 A)
- Key: 20°, 30
Application examples:
- Electric vehicles (EV/HEV)
- Rail passenger transport
- Medical technology
- Battery management systems
- Energy storage
