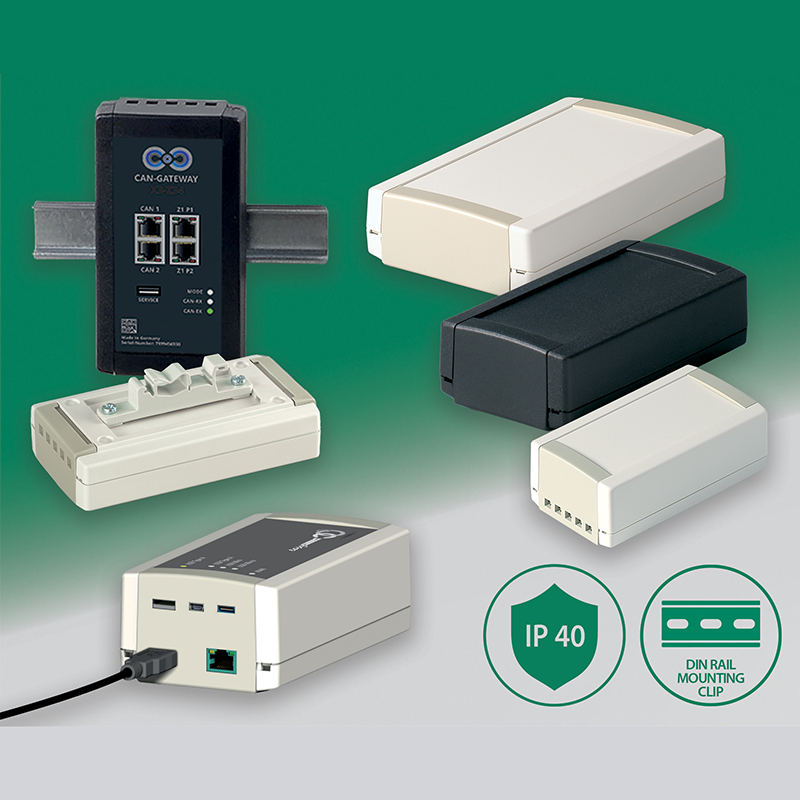

OKW’s TOPTEC universal enclosures

TOPTEC allows PCBs with protruding connectors and interfaces to be mounted directly into the case. Applications include monitoring, signalling equipment, control systems, medical/wellness devices, computer peripherals, IoT, and IIoT.

These versatile ABS (UL 94 HB) enclosures are ideal for desktop and wall-mount electronics. A fastening element (accessory) also enables TOPTEC to be fitted to DIN rails.

Snap-together assembly speeds up installation. The base has lateral opening for easy access from all slides. Clip-in end panels allow PCBs with pre-fitted connectors to fit straight in. For security, a tool is needed to open the assembled case.

TOPTEC can be specified with (or without) ventilation slots which can also be used for applications involving gas detection or sound. The top is recessed to accommodate a membrane keypad or label. Inside, there are screw pillars for PCBs.

The range comprises 28 models, including Type F (flat top) and Type H (high top). Sizes range from 102 x 54 x 30mm to 194 x 115 x 46mm. The standard colours are black (RAL 9005), or off-white (RAL 9002) with pebble grey (RAL 7032) end panels.

Accessories include a wall suspension element with fast-release tab. This concealed element snaps into apertures on the underside of the base. Also available are anti-slide feet for desktop use.

OKW can supply TOPTEC fully customised. Services include: CNC machining, lacquering, printing, laser marking, decor foils, EMC shielding, special materials, and installation/assembly of accessories.
