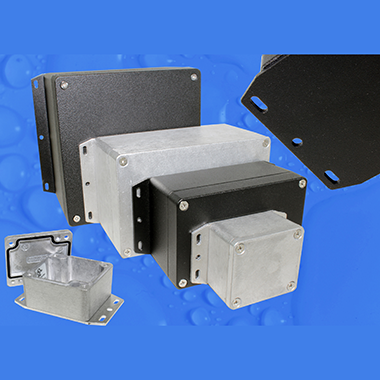

Hammond launches 18-strong enclosure range

The full-size flange is spot-welded to the base to provide it with a very strong and smooth mounting plate for use when the units are secured to a surface.

The 18 sizes range from 50mm x 45mm x 30mm to 223mm x 147mm x 83mm, with the lids thickness ranging from 5mm to 33mm in depth depending on the size.

The tongue and groove design and a pre-formed one-piece silicone rubber gasket gives the IP68 environmental protection so the enclosures are well suited for installation in environments where dust and water will be present in the environment.

They are UL and cUL Listed and have been independently tested to IP66, IP67 and IP68 and they are also rated to NEMA Type 4, 4X, 12 and 13. All sizes except the smallest have an impact rating of IK08, defined in IEC 62262 as the equivalent to the impact of a 1.7kg mass dropped from 300mm above the impacted surface.

Depending on the size, the lid is secured to the base with either two, four or six stainless steel Philips machine screws located outside the gasketed area, which gives repeated access without degrading the environmental protection. They are available in a natural finish or with a tough polyester black powder finish to both the outside and inside of the enclosure. Clear areas in the painted versions are provided around the grounding points.
